Siemens A5E00768956 Ruggedized Gate Driver Module for Harsh Environments

Product Overview

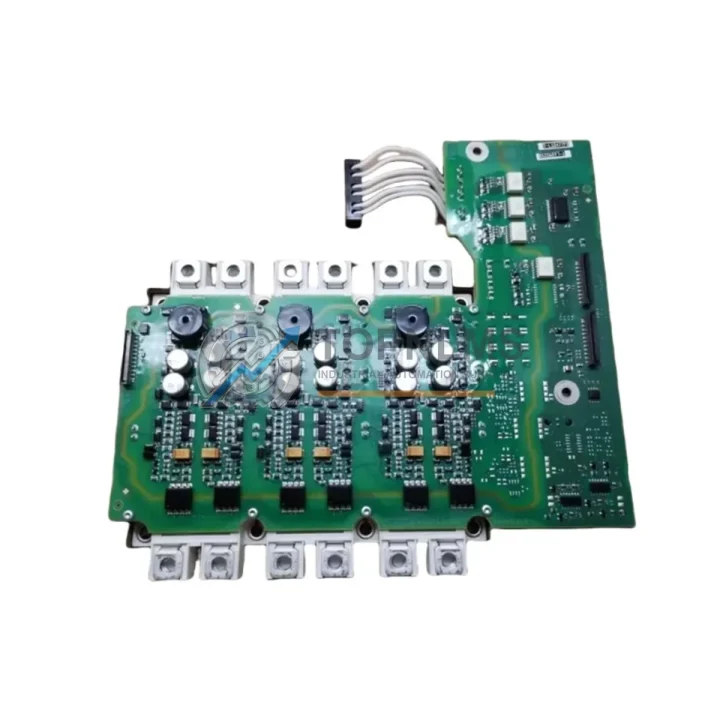

Siemens A5E00768956 Ruggedized Gate Driver Module for Harsh Environments

The Siemens A5E00768956 is a precision-engineered gate driver trigger board designed for deployment in the most demanding industrial environments. As a core power electronics component within the SINAMICS and MICROMASTER variable frequency drive (VFD) families, this module governs IGBT switching sequences with microsecond-level accuracy — directly determining the reliability, efficiency, and longevity of your drive system under continuous production load.

Industrial facilities operating in sectors such as oil & gas, mining, metallurgy, power generation, and water treatment cannot afford unplanned downtime. The A5E00768956 is built to sustain stable operation across wide temperature ranges, high-humidity atmospheres, dusty or chemically aggressive enclosures, and environments subject to persistent mechanical vibration and electromagnetic interference (EMI). Its ruggedized PCB construction and conformal coating make it a dependable choice for control cabinets installed on offshore platforms, underground mining drives, steel mill motor control centers, and municipal water pumping stations.

Rugged Specifications Table

Comprehensive Protection Solutions

The A5E00768956 gate driver board does not operate in isolation — it is the nerve center of a broader drive protection and control architecture. In a typical SINAMICS G120 or MICROMASTER 440 installation, this trigger board interfaces directly with the SINAMICS G120 Power Module PM240 and the Control Unit CU240E-2, coordinating IGBT firing pulses that regulate motor torque and speed with precision. When paired with a Siemens SITOP PSU100S 24V DC power supply, the entire drive system benefits from clean, regulated DC bus voltage that minimizes gate drive noise and switching anomalies.

In control cabinet environments where multiple drives share a common bus, the A5E00768956 works alongside Siemens SINAMICS S120 Drive-CLiQ communication modules and SMC10 / SMC20 sensor modules to maintain closed-loop feedback integrity. The Siemens 6ES7 series SIMATIC S7-300/S7-400 PLC I/O modules typically provide the supervisory control layer, issuing speed references and fault acknowledgment signals to the drive’s CU. Reliable gate drive operation is therefore essential to the entire PLC-to-motor control chain.

For installations requiring functional safety, the A5E00768956 is commonly deployed in drive systems integrated with Siemens SIRIUS 3SK1 safety relay modules and 3RK3 Modular Safety System (MSS) units, which monitor STO (Safe Torque Off) and SS1 (Safe Stop 1) functions. A failed gate driver board in such a system can compromise the entire safety chain — making rapid spare part availability critical. Additionally, Siemens ET 200SP distributed I/O modules are frequently used in the same control cabinet to handle local digital and analog I/O, further underscoring the importance of a stable, interference-free drive power stage governed by a healthy A5E00768956.

Terminal modules such as the Siemens BU type BaseUnit for ET 200SP and SINAMICS G120 terminal board TB30 complete the signal routing between the gate driver, the control unit, and field instrumentation — ensuring that encoder feedback, temperature sensor inputs, and brake control signals are processed without corruption even in high-EMI environments.

Application in Critical Infrastructure

In oil and gas facilities, the A5E00768956 sustains reliable IGBT switching in pump and compressor drives operating continuously in Zone 2 classified areas, where ambient temperatures and hydrocarbon vapors demand components with proven thermal stability and sealed PCB protection. Offshore platform motor control centers rely on this board to maintain uninterrupted production flow without the luxury of on-site spare part logistics.

In mining operations, conveyor belt drives, hoist systems, and ventilation fan VFDs are subjected to extreme vibration, coal dust ingress, and wide voltage fluctuations. The A5E00768956’s robust gate drive isolation prevents false triggering from conducted EMI generated by heavy machinery, protecting both the IGBT power modules and the connected motors from destructive shoot-through events.

In power generation and grid infrastructure, auxiliary drive systems controlling cooling pumps, induced draft fans, and boiler feed pumps depend on gate driver boards that can sustain 24/7 operation across seasonal temperature extremes. A single gate driver failure in a 6 MW boiler feed pump drive can force a unit shutdown — the A5E00768956’s availability as a tested, warranted spare part directly supports plant availability targets.

In water treatment and municipal infrastructure, MICROMASTER and SINAMICS drives controlling submersible pumps and aeration blowers operate in high-humidity, chemically aggressive environments. The A5E00768956’s conformal-coated PCB resists moisture-induced leakage currents that would otherwise degrade gate signal integrity over time.

In metallurgy and steel production, rolling mill drives and ladle crane hoists demand gate driver boards capable of surviving radiated EMI from arc furnaces and induction heaters. The A5E00768956 provides the switching precision required to maintain motor torque control under these extreme electromagnetic conditions.

Security & Quality FAQ

Q1: What does the 12-month warranty cover?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the A5E00768956 fails to perform its gate drive function within the warranty period, TOPNLMS will provide a replacement unit or full refund. The warranty period begins from the date of confirmed delivery.

Q2: How is each unit tested before shipment?
Every A5E00768956 unit undergoes a 100% functional pre-shipment inspection. Testing includes visual inspection for PCB damage, component integrity verification, and electrical function testing to confirm gate signal output characteristics meet Siemens OEM specifications. Units that fail any test stage are quarantined and not dispatched.

Q3: Is this a genuine Siemens part, and is it compatible with my existing SINAMICS or MICROMASTER drive?
Yes. The A5E00768956 supplied by TOPNLMS is a genuine Siemens-manufactured gate driver trigger board, sourced through authorized industrial supply channels. It is a direct OEM-equivalent replacement compatible with SINAMICS G120, G150, S120, and MICROMASTER 440/430/420 series drives that originally specify this part number. We recommend confirming your drive’s service manual part reference before ordering if you are uncertain of compatibility.

Q4: Can TOPNLMS support long-term or repeat procurement of the A5E00768956?
Yes. TOPNLMS maintains dedicated stock of high-demand Siemens automation spare parts including the A5E00768956 to support planned maintenance programs, emergency breakdown replacements, and MRO (Maintenance, Repair & Operations) procurement contracts. We offer priority dispatch for urgent breakdown orders and can discuss framework agreements for facilities requiring guaranteed stock availability.
