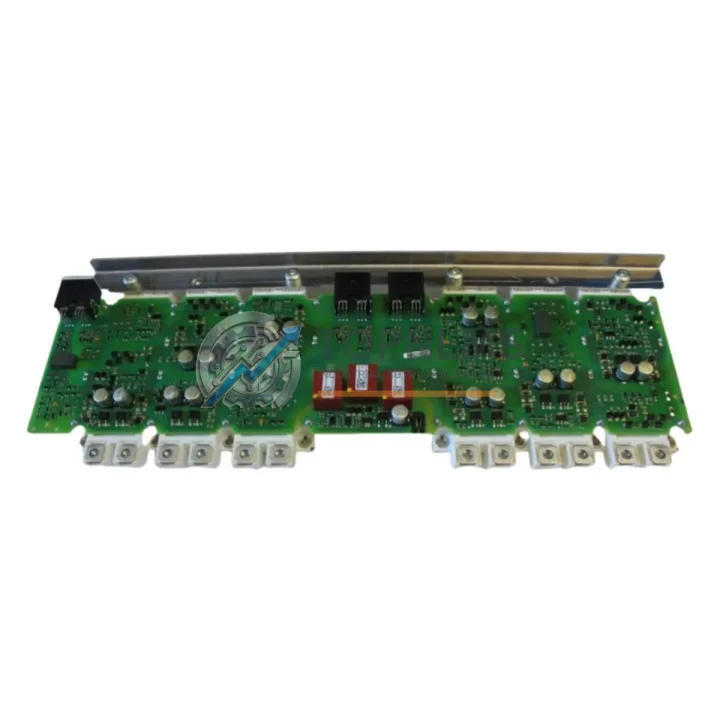

Siemens A5E00714565 IGD2/R4 Ruggedized IGBT Gate Driver Module

Product Overview

Siemens A5E00714565 IGD2/R4 Ruggedized IGBT Gate Driver Module for Harsh Industrial Environments

The Siemens A5E00714565 IGD2/R4 is a high-performance IGBT Gate Driver Module engineered for continuous, fault-tolerant operation in the most demanding industrial environments. Designed as a core switching control component within the Siemens SINAMICS and MASTERDRIVES drive platforms, this module governs the precise gate-level switching of IGBT power semiconductors — the critical interface between digital control commands and high-voltage power conversion. Its ruggedized construction makes it a trusted choice for engineers and procurement specialists operating in sectors where downtime is not an option.

Built to withstand elevated ambient temperatures, high-humidity atmospheres, airborne particulate contamination, mechanical vibration, and intense electromagnetic interference (EMI), the A5E00714565 IGD2/R4 maintains stable switching performance across the full operational envelope of heavy industrial drive systems. Whether installed in a coastal petrochemical facility, an underground mining conveyor drive, a steel mill rolling line, or a municipal water treatment pump station, this module delivers the isolation, response speed, and thermal resilience that mission-critical applications demand.

Rugged Specifications Table

Comprehensive Protection Solutions for Drive System Integrity

The A5E00714565 IGD2/R4 does not operate in isolation — it is the nerve center of a broader drive protection architecture. In a properly configured SINAMICS or MASTERDRIVES control cabinet, this gate driver module works in concert with the Siemens MASTERDRIVES Compact Plus power module to regulate inverter output with microsecond-level precision. The gate driver’s desaturation detection circuit provides the first line of defense against IGBT short-circuit events, immediately triggering a controlled shutdown before catastrophic overcurrent damage can propagate to the DC bus capacitor bank or the connected motor windings.

Upstream, the Siemens SINAMICS S120 Control Unit CU320-2 DP or equivalent MASTERDRIVES CU issues the PWM reference signals that the A5E00714565 translates into isolated gate pulses. Any degradation in gate driver performance — whether from thermal stress, aging gate resistors, or supply voltage ripple — directly impacts the quality of motor torque control. Replacing a suspect gate driver module proactively, rather than reactively after an IGBT failure, is a well-established best practice in predictive maintenance programs for high-power drives.

On the power supply side, the Siemens SITOP PSU300S 24 V DC power supply or the internal MASTERDRIVES auxiliary power supply board provides the low-voltage rail that energizes the gate driver’s logic circuitry. Ensuring clean, regulated 24 V DC with low ripple is essential for stable UVLO operation and reliable fault signal transmission to the Siemens SIMATIC S7-300 or S7-400 PLC safety interlock chain. In safety-instrumented systems, the gate driver’s fault output is typically wired through a Siemens SIRIUS 3SK1 safety relay module to enforce SIL-rated drive trip functions.

For communication-intensive installations, the drive system may incorporate a Siemens CBP2 PROFIBUS communication board or a CBC10 CANopen communication module mounted on the MASTERDRIVES base unit, enabling real-time fault status reporting and parameter monitoring via the plant DCS or SCADA system. Complementing this, Siemens SINAMICS S120 Sensor Module SMC30 provides encoder feedback that the control unit uses to optimize switching patterns — further reducing thermal stress on the gate driver and IGBT stack. Terminal connectivity within the control cabinet is typically managed through Siemens SIRIUS 8WA series terminal blocks, ensuring reliable, vibration-resistant signal wiring between the gate driver board, the control unit, and the safety relay chain.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, variable-speed drives controlling compressor trains, pipeline booster pumps, and wellhead artificial-lift systems operate continuously in Class I Division 2 or ATEX Zone 2 classified areas. The A5E00714565 IGD2/R4, housed within a purged and pressurized drive enclosure, must maintain switching accuracy despite wide ambient temperature swings, hydrogen sulfide-laden atmospheres, and persistent low-frequency vibration from reciprocating compressors. Its galvanic isolation and robust fault detection make it a preferred spare for maintenance teams managing Siemens MASTERDRIVES-based ESP (Electrical Submersible Pump) drive systems.

In underground coal and hard-rock mining, conveyor belt drives, hoist systems, and ventilation fan drives powered by SINAMICS or MASTERDRIVES platforms face extreme dust ingress, high humidity from water sprays, and shock loads from blasting operations. The conformal-coated PCB of the A5E00714565 provides a critical barrier against conductive dust contamination that would otherwise cause tracking faults across unprotected circuit board surfaces. Maintenance engineers in this sector routinely stock gate driver modules as critical spares, given the cost of unplanned conveyor stoppages measured in thousands of dollars per hour.

In power generation and grid-connected applications — including wind turbine pitch and yaw drives, hydroelectric generator excitation systems, and industrial co-generation plants — the A5E00714565 supports the high switching frequency and low-latency fault response required for grid code compliance. Its compatibility with SINAMICS S120 booksize power modules makes it a versatile spare across multiple drive frame sizes within a single plant’s drive fleet.

In water and wastewater treatment, large centrifugal pump and blower drives running on MASTERDRIVES platforms operate in high-humidity pump houses with aggressive chemical atmospheres. The A5E00714565’s robust isolation and thermal design ensure reliable operation across multi-year service intervals between planned maintenance shutdowns, supporting the continuous-duty cycle demands of municipal infrastructure.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a module fails within the warranty period, contact us at [email protected] with your order number and a description of the fault. We will arrange return shipping, perform a failure analysis, and dispatch a replacement unit or issue a refund at our discretion. Warranty does not cover damage resulting from incorrect installation, overvoltage events beyond rated limits, or physical mishandling.

Q2: How is each A5E00714565 IGD2/R4 tested before shipment?
Every unit undergoes a multi-stage pre-shipment inspection: visual inspection for physical damage, component-level continuity and isolation resistance testing, and where test fixtures are available, functional power-on verification against Siemens reference parameters. Units that do not pass all inspection stages are quarantined and not dispatched. A test report summary is available upon request for quality-critical procurement.

Q3: Is the A5E00714565 IGD2/R4 compatible with all MASTERDRIVES and SINAMICS variants?
The A5E00714565 IGD2/R4 is specifically designed for Siemens MASTERDRIVES MC and VC series inverter units and selected SINAMICS S120 power module configurations. Compatibility depends on the specific drive frame size, DC bus voltage rating, and IGBT stack type. We strongly recommend cross-referencing your drive’s service manual or contacting our technical team at [email protected] before ordering to confirm fitment for your specific drive serial number and firmware version.

Q4: Can you support long-term or repeat supply of this module for fleet maintenance programs?
Yes. TOPNLMS maintains dedicated inventory of critical Siemens SINAMICS and MASTERDRIVES spare parts, including the A5E00714565 IGD2/R4, to support planned maintenance schedules and emergency breakdown requirements. We can provide framework pricing for annual supply agreements, priority allocation for repeat customers, and advance notification of stock availability changes. Contact [email protected] or call +86 18359293191 to discuss your fleet maintenance spare parts program.
