Siemens A5E00714562 Replacement for SINAMICS MICROMASTER: Seamless Transition & Legacy System Upgrade

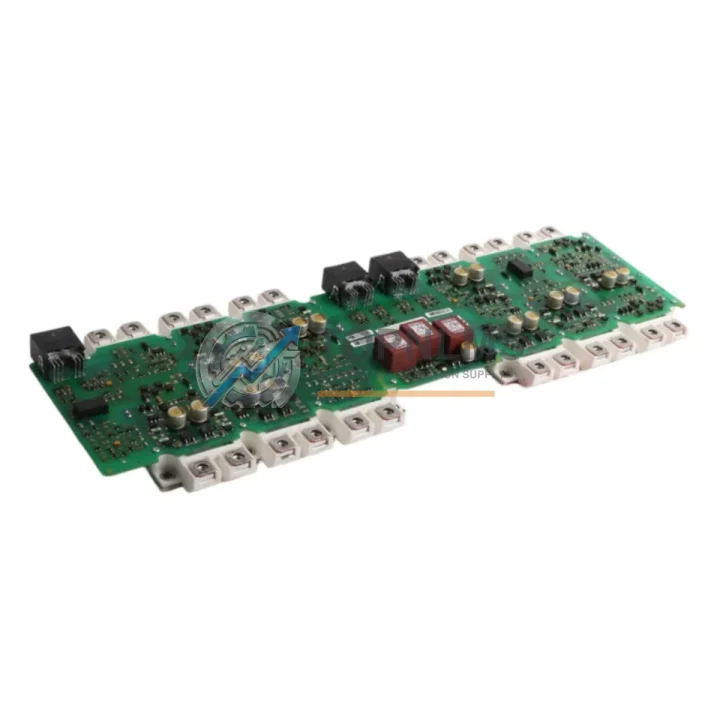

The Siemens A5E00714562 is an inverter gate drive board engineered for the SINAMICS and MICROMASTER drive series — two of the most widely deployed variable-frequency drive platforms in global industrial automation. As legacy MICROMASTER 440 and MICROMASTER 420 units reach end-of-service life, and as SINAMICS G120 and SINAMICS S120 platforms continue to evolve, facilities managers and OEM integrators increasingly require a reliable, drop-in replacement that preserves existing wiring infrastructure, control cabinet space, and PLC program logic without forcing a full system redesign.

At TOPNLMS, we stock the A5E00714562 gate drive board as a verified replacement component, tested against Siemens factory specifications before shipment. Whether you are recovering from an unplanned drive failure on a production line, executing a planned retrofit of aging MICROMASTER units, or building a spare-parts inventory for critical machinery, this board is sourced, inspected, and dispatched from our Xiamen warehouse with a 12-month warranty.

Compatibility Comparison Table

Seamless Upgrade Solutions

A gate drive board replacement rarely occurs in isolation. In practice, upgrading or recovering a SINAMICS or MICROMASTER drive system involves a coordinated set of components, and our team regularly supports customers through the full scope of a retrofit. When replacing the A5E00714562, engineers commonly address the following adjacent components in the same service window to minimize future downtime.

The SINAMICS G120 Control Unit CU240E-2 is frequently upgraded in parallel, particularly when the existing control unit firmware is no longer supported by the current TIA Portal version. Replacing the gate drive board while retaining an outdated control unit can limit the diagnostic visibility available through STARTER software. Similarly, the SINAMICS G120 Power Module PM240-2 is often evaluated during the same inspection — if the IGBT stack shows signs of thermal stress, replacing the gate drive board alone may not fully resolve recurring fault codes.

For installations where the drive communicates with a Siemens S7-300 or S7-1500 PLC via PROFIBUS DP or PROFINET, the communication module — such as the CB20 Communication Board or an onboard PROFINET interface — should be verified for firmware compatibility after the gate drive board swap. In multi-axis systems using a SINAMICS S120 Booksize chassis, the Active Line Module (ALM) and Motor Module pairings must be re-commissioned through STARTER or TIA Portal after any drive board replacement to ensure the DC bus voltage reference is correctly re-established.

Wiring integrity at the terminal block X1 and X2 of the drive should be inspected during the same service event. In older MICROMASTER 440 installations, the Basic Operator Panel (BOP) or Advanced Operator Panel (AOP) may need firmware re-flashing after a board replacement to restore parameter display functionality. For facilities running distributed I/O via Siemens ET 200SP or ET 200M remote I/O stations connected to the drive control system, no hardware changes are required — the replacement board does not alter the PLC-side I/O mapping.

In control cabinets where space is constrained, the compact form factor of the A5E00714562 ensures that no DIN rail re-spacing or cable duct modification is needed. Customers upgrading from early MICROMASTER 420 units to SINAMICS G120C compact drives in the same cabinet footprint will find that the SINAMICS G120C CU230P-2 control unit and associated FSA/FSB frame size power modules can be accommodated without structural cabinet modification, provided the existing 24 VDC SITOP power supply rail capacity is verified.

Retrofit Guidance FAQ

Q: Do I need to re-enter all drive parameters after replacing the A5E00714562 gate drive board?
A: In most cases, no. Drive parameters are stored in the Control Unit (CU), not the gate drive board. If the CU is retained and undamaged, parameters remain intact. We recommend uploading a parameter backup via STARTER or TIA Portal before beginning any board replacement as a precaution.

Q: Is the wiring to the motor terminals affected by this replacement?
A: No. The A5E00714562 is an internal board replacement. Motor output terminals (U, V, W) and mains input terminals (L1, L2, L3) are on the Power Module and are not disturbed during gate drive board service.

Q: Will my existing PROFIBUS DP or PROFINET communication to the S7 PLC be interrupted after replacement?
A: Communication is managed by the Control Unit, not the gate drive board. Provided the CU is not replaced, the PROFIBUS or PROFINET node address and GSD/GSDML configuration remain unchanged. A brief drive re-initialization (power cycle) is required after board installation, during which the PLC will report a temporary drive fault — this clears automatically on successful re-commissioning.

Q: What fault codes indicate the gate drive board has failed and needs replacement?
A: Common fault codes pointing to gate drive board failure include F30015 (phase failure), F30021 (ground fault), F30024 (IGBT overcurrent), and A30031 (gate drive supply undervoltage). If these faults persist after clearing and cannot be attributed to motor or cable faults, the gate drive board is the primary suspect.

Q: Can this board be installed in a MICROMASTER 420 as well as a MICROMASTER 440?
A: The A5E00714562 is primarily specified for MICROMASTER 440 and SINAMICS G/S series applications. Compatibility with MICROMASTER 420 depends on the specific power rating and frame size. Please provide your full drive nameplate data when inquiring, and our technical team will confirm compatibility before shipment.

Q: How long does installation take, and is a Siemens-certified engineer required?
A: Board replacement typically takes 30–90 minutes for a trained drive technician familiar with Siemens SINAMICS/MICROMASTER hardware. A Siemens certification is not mandatory, but ESD precautions, proper lockout/tagout procedures, and familiarity with drive commissioning tools (STARTER or TIA Portal) are essential.

Warranty Assurance

Every A5E00714562 inverter gate drive board shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Our pre-shipment inspection process includes functional verification of gate signal output, logic supply integrity, and connector condition. Units that do not pass inspection are not dispatched.

In the event of a DOA (Dead on Arrival) or early failure within the warranty period, TOPNLMS provides a replacement unit or full refund, subject to return inspection. Our standard response time for warranty claims is within 2 business days of receiving the returned unit at our Xiamen facility. Expedited replacement shipments are available for customers with critical production downtime situations — please contact us directly to arrange priority handling.

We ship globally via DHL Express, FedEx International Priority, and UF Express, with typical transit times of 3–7 business days to most destinations. All shipments include tracking and commercial invoice documentation suitable for customs clearance. For bulk orders or standing purchase agreements, please contact our sales team to discuss lead times, pricing tiers, and consignment stock arrangements.
