Siemens A5E00714561 FS300R12KE3 Replacement Solution: Seamless Transition from Legacy Drive Systems

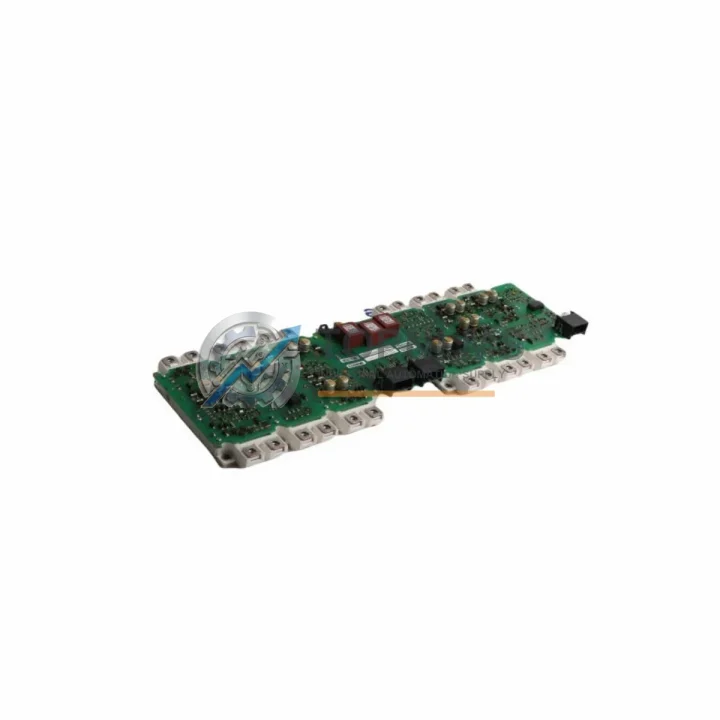

The Siemens A5E00714561 FS300R12KE3 IGBT Gate Driver Board is a critical power electronics component used in Siemens SINAMICS and MASTERDRIVES series variable frequency drives and medium-voltage inverter systems. As aging drive platforms approach end-of-life and original spare parts become increasingly scarce, plant engineers and maintenance teams face mounting pressure to source verified replacement boards that maintain full electrical and mechanical compatibility with existing drive cabinets.

TOPNLMS specializes in sourcing, testing, and supplying hard-to-find Siemens drive components including the A5E00714561 FS300R12KE3. Each unit undergoes functional verification prior to dispatch, ensuring that your replacement board arrives ready for installation without the uncertainty of untested surplus stock. Whether you are performing an emergency repair on a production line or building a strategic spare parts inventory, our stock of this gate driver board supports both immediate and planned procurement needs.

Compatibility Comparison Table

Seamless Upgrade Solutions

Replacing the A5E00714561 FS300R12KE3 gate driver board is rarely an isolated task. In most SINAMICS S120 and MASTERDRIVES installations, the gate driver board sits within a larger power stack that includes the DC bus capacitor bank, the IGBT power module itself (Infineon FS300R12KE3), and the associated snubber and clamp circuits. When performing a drive retrofit or emergency repair, maintenance engineers should simultaneously inspect the condition of the Control Unit — such as the Siemens CU320-2 DP or CU310-2 — to confirm that the fault originated at the gate driver level rather than upstream in the control chain.

In SINAMICS S120 booksize and chassis format installations, the Motor Module and Line Module share a common DC bus. A failed gate driver in one Motor Module can cause DC bus overvoltage events that stress adjacent modules. During the replacement process, it is advisable to verify the health of neighboring Motor Modules and the Active Line Module or Basic Line Module supplying the common DC bus. The DRIVE-CLiQ topology should be re-validated after board replacement using STARTER or TIA Portal commissioning software to ensure that the replaced module is correctly recognized within the drive line-up.

For older MASTERDRIVES MC and VC platforms being migrated toward SINAMICS S120, the gate driver replacement may form part of a broader modernization project. In such cases, the existing PROFIBUS DP communication infrastructure — including the CBP2 communication board and associated DP cables — can typically be retained, as SINAMICS S120 supports PROFIBUS DP natively through the CU320-2 DP Control Unit. This preserves the existing PLC program structure on the upstream Siemens S7-300 or S7-400 controller, minimizing the scope of software changes required during the migration.

Terminal wiring from the motor side — including the U, V, W output terminals and the PE ground connection — remains unchanged when replacing the gate driver board, as the power terminal block is located on the Motor Module chassis rather than on the driver board itself. The encoder feedback cable connecting the motor encoder to the Sensor Module Cabinet-Mounted (SMC) or Sensor Module External (SME) also requires no modification. This significantly reduces rewiring time during a planned maintenance window or emergency shutdown.

Where the drive cabinet also houses a Siemens SIMATIC S7 PLC rack with SM321 digital input modules or SM331 analog input modules for process signal acquisition, the gate driver replacement has no impact on the PLC I/O wiring or program. The drive fault signal — typically wired as a digital output from the drive to the PLC digital input module — will clear automatically once the replacement board is installed and the drive is successfully commissioned. In installations using a Siemens OP177B or TP177B HMI panel for local drive monitoring, the HMI program requires no modification following the board replacement.

For sites operating multiple SINAMICS S120 drive lines, maintaining a buffer stock of the A5E00714561 FS300R12KE3 gate driver board alongside other high-wear components — such as the DC bus pre-charge resistor assembly and the fan/filter unit for the drive cabinet — is a recognized best practice for minimizing unplanned downtime in continuous process industries.

Retrofit Guidance FAQ

Q: Can I replace the A5E00714561 FS300R12KE3 without modifying the existing wiring harness?
A: Yes. The replacement board uses the same connector positions and pinout as the original. The existing wiring harness, including gate signal cables and auxiliary power supply leads, can be reconnected directly without any modification.

Q: Does replacing the gate driver board require re-parameterization of the drive?
A: In most cases, no. The gate driver board does not store drive parameters. Parameters are held in the Control Unit (e.g., CU320-2). However, it is recommended to perform a drive self-test and verify fault-free operation after replacement. A parameter backup via STARTER or TIA Portal prior to any maintenance work is always advisable.

Q: Is this board compatible with both SINAMICS S120 and MASTERDRIVES platforms?
A: The A5E00714561 FS300R12KE3 is associated with the Infineon FS300R12KE3 IGBT module used across multiple Siemens drive platforms. Compatibility should be confirmed against the specific drive model and power rating. Contact TOPNLMS with your drive nameplate data for confirmation before ordering.

Q: What communication protocols are supported after replacement?
A: The gate driver board operates at the power electronics level and is transparent to the communication layer. PROFIBUS DP, PROFINET, and DRIVE-CLiQ communication between the Control Unit and the upstream PLC or DCS are unaffected by the gate driver board replacement.

Q: How much physical space is required for installation?
A: The replacement board is a direct form-factor match for the original. No additional cabinet space or mechanical modification is required. Standard Siemens drive maintenance procedures for DC bus discharge and safe isolation apply before installation.

Q: What is the lead time and shipping arrangement?
A: Units are dispatched from Xiamen, China. Standard international express delivery (DHL / FedEx) typically reaches most destinations within 3–7 business days. Emergency same-day dispatch is available for in-stock units upon order confirmation before the daily cut-off time.

Warranty Assurance

Every Siemens A5E00714561 FS300R12KE3 IGBT Gate Driver Board supplied by TOPNLMS is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each unit undergoes a pre-shipment functional inspection to verify gate signal integrity, auxiliary power supply operation, and the absence of physical damage or component degradation.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund based on the confirmed fault condition. Our after-sales response target is within 24 hours of claim submission. Warranty claims are supported by our technical team, who can assist with fault diagnosis to determine whether the issue originates at the gate driver board level or elsewhere in the drive system.

For procurement teams requiring documentation, we can provide a test report, packing list, and commercial invoice with each shipment. Export compliance documentation for cross-border shipments is available upon request. All units are packed in anti-static protective packaging with foam cushioning to prevent transit damage.

TOPNLMS maintains stock of the A5E00714561 FS300R12KE3 to support both emergency single-unit procurement and bulk orders for MRO inventory programs. Volume pricing is available for orders of 3 units or more. Contact our sales team to discuss your specific requirements and lead time expectations.
