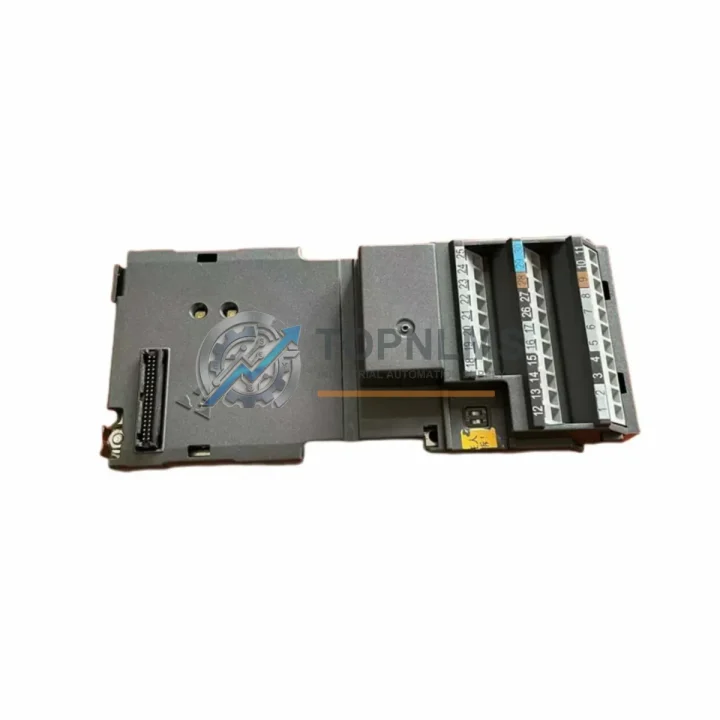

Siemens A5E00684817 Ruggedized VFD Control Board for Harsh Environments

The Siemens A5E00684817 (1790L811A) is a factory-grade VFD control board engineered for the MICROMASTER MM430 and MM440 series variable frequency drives. Designed to operate reliably in the most demanding industrial environments — including high-temperature process lines, high-humidity coastal facilities, dust-laden mining operations, and vibration-intensive heavy manufacturing floors — this control board delivers the signal integrity and thermal resilience that mission-critical automation systems require.

In continuous production environments where unplanned downtime translates directly into revenue loss, the A5E00684817 provides the backbone of stable motor control. Its robust PCB construction, conformal coating, and EMI-shielded signal pathways ensure consistent performance even when deployed alongside high-power equipment such as large-frame servo drives, transformer banks, and industrial welding systems that generate significant electromagnetic interference.

This board governs the core control logic of the MM430 and MM440 drives, managing PWM output signals, parameter memory, operator panel communication, and fault diagnostics. When the control board fails in the field, the entire drive becomes inoperative — making rapid access to a verified replacement unit a top procurement priority for maintenance engineers and plant managers alike.

Rugged Specifications Table

Comprehensive Protection Solutions

The A5E00684817 control board does not operate in isolation — it is the nerve center of a broader drive system that depends on the health of every connected component. In a typical MICROMASTER MM440 installation driving a 75 kW pump motor in a water treatment facility, the control board interfaces directly with the Siemens 6SE6400-0BP00-0AA0 BOP-2 Basic Operator Panel for local parameter access, and communicates upstream to a Siemens S7-300 CPU 315-2 DP PLC via PROFIBUS-DP using the CB15 PROFIBUS option board.

On the power side, the MM440 drive relies on a Siemens 6SE6400-3CC00-4AD3 line filter and a 6SE6400-3TC00-4AD3 output reactor to suppress harmonic distortion and protect both the motor windings and the control board’s analog input circuitry from voltage spikes. In high-vibration environments such as compressor stations or crusher lines, the Siemens 6SL3000-0BE21-6AA0 line reactor provides additional upstream protection.

For cabinet-level integration, the A5E00684817-equipped drive is typically mounted alongside Siemens 3RT2 contactor assemblies and 3RV2 motor protection circuit breakers, which provide upstream short-circuit and overload protection. In safety-rated installations — particularly those governed by IEC 62061 or ISO 13849 — the drive system may be paired with a Siemens 3SK1 safety relay module to implement STO (Safe Torque Off) functionality, ensuring that the motor cannot restart unexpectedly during maintenance windows.

Communication integrity across the control cabinet is maintained through Siemens SIMATIC ET 200SP I/O modules, which relay process signals to the S7-300 or S7-1500 controller. Terminal connectivity is managed via Siemens SIRIUS 8WA1 terminal blocks, which provide reliable, vibration-proof connections even in mobile or skid-mounted equipment. Together, these components form a complete, validated automation architecture in which the A5E00684817 plays a central and irreplaceable role.

Application in Critical Infrastructure

In oil and gas upstream operations, the MICROMASTER MM440 equipped with the A5E00684817 control board is widely deployed to regulate submersible pump motors, gas compressor auxiliaries, and cooling fan drives in Zone 2 classified areas. The board’s robust fault-logging capability — storing up to 8 fault codes with timestamps — enables rapid root-cause analysis after a trip event, minimizing production interruption on wellhead platforms and pipeline booster stations.

In underground mining, where ambient temperatures can swing dramatically between shift changes and where coal dust or silica particulate creates both contamination and explosion risks, the MM430 and MM440 drives are installed inside sealed, pressurized control enclosures. The A5E00684817’s conformal coating provides a critical barrier against conductive dust ingress that could otherwise cause tracking faults across PCB traces.

In municipal water and wastewater treatment, variable speed control of centrifugal pumps via the MM440 reduces energy consumption by 30–50% compared to fixed-speed operation. The A5E00684817 board enables precise PID control of pump speed in response to flow and pressure sensor feedback, supporting both manual and fully automated SCADA-integrated operation. When a control board fails in a 24/7 pumping station, every hour of downtime risks regulatory non-compliance — making pre-qualified spare board inventory a standard practice among facility engineers.

In metallurgical and steel mill environments, where radiated heat from furnaces and induction heaters creates sustained high-temperature stress on electronic components, the thermal design of the A5E00684817 — combined with the MM440’s internal cooling fan and heat sink assembly — ensures continuous operation at ambient temperatures up to 50°C without derating. Rolling mill drives, ladle transfer cars, and fume extraction fans all represent typical applications where this board’s reliability directly impacts plant throughput.

Security & Quality FAQ

Q1: What warranty coverage is provided with the A5E00684817?
Every A5E00684817 unit shipped by TOPNLMS carries a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, we provide a replacement unit or full refund after technical verification. Our warranty process is designed to minimize your downtime — replacement units are typically dispatched within 48 hours of claim approval.

Q2: How is each unit tested before shipment?
All A5E00684817 boards undergo a multi-stage pre-shipment inspection protocol: visual inspection for physical damage, component-level continuity testing, and functional verification using a reference MM430 or MM440 drive chassis. New-old-stock units are verified for storage integrity and re-tested for parametric performance. Refurbished units are additionally subjected to thermal cycling and extended burn-in testing before release. A test report is available upon request.

Q3: Is this board compatible with both MM430 and MM440 drives across all power ratings?
The A5E00684817 (revision 1790L811A) is the standard control board used across the MICROMASTER MM430 and MM440 series. Compatibility spans the full power range of these drive families — from 0.37 kW to 250 kW frame sizes. However, we recommend confirming your drive’s existing board revision against your unit’s nameplate before ordering, as certain regional or OEM-specific variants may use alternate board revisions. Our technical team is available to assist with compatibility verification at no charge.

Q4: Can you support long-term or repeat procurement for maintenance programs?
Yes. TOPNLMS maintains dedicated inventory reserves for high-demand Siemens MICROMASTER spare parts, including the A5E00684817, to support planned maintenance programs, annual MRO contracts, and emergency breakdown coverage. We offer volume pricing for multi-unit orders and can arrange consignment stock agreements for large facilities with recurring demand. Contact our team to discuss a tailored supply arrangement that aligns with your plant’s maintenance schedule and budget cycle.
