Siemens A5E00399482 C98043-A1716-L26 SIMOREG DC Drive Upgrade

Product Overview

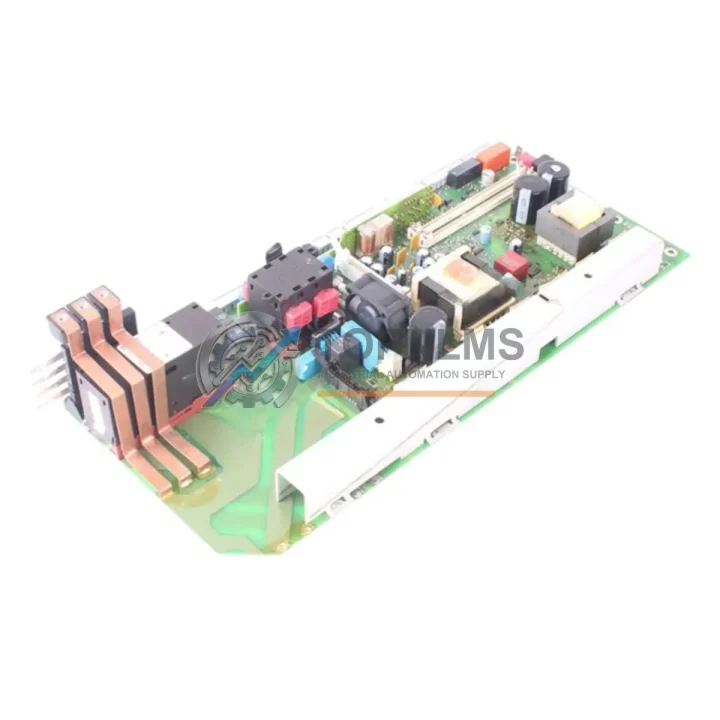

Siemens A5E00399482 C98043-A1716-L26 SIMOREG DC Drive Upgrade: Seamless Transition from Legacy DC Drive Systems

When your existing DC drive infrastructure reaches end-of-life or a critical power module fails, unplanned downtime can cost thousands of dollars per hour. The Siemens A5E00399482 — also referenced under the combined part number C98043-A1716-L26 — is a factory-original SIMOREG DC Master series power module engineered for high-performance, four-quadrant DC motor control in demanding industrial environments. Whether you are replacing a failed unit in a paper mill, steel rolling line, extruder, or crane drive system, this module provides a direct, drop-in upgrade path that preserves your existing wiring harness, control cabinet layout, and PROFIBUS DP communication architecture.

The SIMOREG DC Master platform (6RA70 series) was designed as the successor to the earlier SIMOREG K and SIMOREG D families. If your plant currently operates legacy 6RA24, 6RA26, or 6RA28 converters, the A5E00399482 power module — when installed within the appropriate 6RA70 chassis — offers a validated migration path with minimal re-engineering. The armature and field circuit terminations follow the same physical layout conventions, and the CUD1 / CUD2 control boards retain backward-compatible parameter structures that reduce reprogramming time during commissioning.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful SIMOREG DC Master migration rarely involves a single component. In practice, field engineers replacing the A5E00399482 power module also evaluate the surrounding system architecture to ensure long-term reliability. The CUD1 digital control board (6RA7028-6DS22) is the intelligence layer that manages speed regulation, current limiting, and fieldbus communication; if the existing CUD1 shows parameter corruption or firmware incompatibility, replacing it alongside the power module eliminates a common root cause of recurring faults. Similarly, the CBP2 PROFIBUS communication board must be verified for firmware revision alignment with the host PLC — typically a Siemens S7-300 or S7-400 CPU — to prevent cyclic data exchange errors after the swap.

On the field supply side, the field economy circuit relies on the internal field controller within the 6RA70 chassis; however, plants running older separately-excited DC motors may also need to inspect the field rectifier module and associated fusing. The 6SY7010-0AA20 thyristor module is a commonly stocked spare that supports the armature bridge in mid-range SIMOREG units and should be bench-tested before the new power module is energized. For installations where the control cabinet also houses a Siemens SINAMICS G120 or S120 series AC drive on an adjacent axis, the shared 24 VDC SITOP PSU8600 power supply rail must be load-checked to confirm it can support the additional inrush current during DC drive startup.

Terminal wiring integrity is another critical checkpoint. The XT1 and XT2 terminal blocks on the 6RA70 chassis accept standard 16 mm² armature cables, but aging ferrules and corroded bus bars in legacy cabinets can introduce resistance that triggers overcurrent trips on the new module. Replacing terminal blocks with Phoenix Contact or Weidmüller equivalents during the retrofit window is a low-cost step that prevents nuisance faults. If the plant uses a Siemens OP7 or OP17 operator panel for local speed reference and fault acknowledgment, verify that the panel’s RS-485 USS address matches the parameter P918 setting on the replacement drive before commissioning. For sites that have migrated the HMI layer to a Siemens TP700 Comfort or TP1200 Comfort panel running WinCC Flexible, the PROFIBUS DP GSD file for the 6RA70 must be re-imported into the TIA Portal project to restore the process data mapping. Finally, if the motor encoder feedback uses a Siemens SMC30 sensor module or a legacy HTL pulse encoder wired to the CUD1 encoder input (X103), confirm the pulse-per-revolution setting in P151 matches the physical encoder specification to avoid speed regulation instability after the module replacement.

Retrofit Guidance FAQ

Q: Can I reuse my existing armature and field wiring when installing the A5E00399482?
A: In most cases, yes. The 6RA70 series uses standard IEC terminal designations (U1/V1/W1 for AC input; C1/D1 for armature output; F1/F2 for field output). If your legacy SIMOREG K used the same terminal labeling convention, the existing cable runs can be reconnected directly. Always perform an insulation resistance test on the motor cables before energizing the new module.

Q: Do I need to re-upload the drive parameters after replacing the power module?
A: Yes. The parameter set is stored on the CUD1 control board, not the power module itself. If the CUD1 is retained, parameters are preserved. If the CUD1 is also replaced, upload the backed-up parameter file via STARTER software or DriveMonitor before the first test run. Key parameters to verify include P100 (rated motor current), P101 (rated motor voltage), P151 (encoder pulses), and P918 (PROFIBUS address).

Q: Is PROFIBUS DP communication maintained after the swap?
A: Yes, provided the CBP2 board firmware version is compatible with the host S7 PLC’s DP master configuration. Re-import the GSD file (SI0067xx.GSD) into STEP 7 or TIA Portal and perform a hardware configuration download to re-establish the cyclic DP connection. USS communication over RS-485 requires no GSD file and is re-established automatically once P918 and P700 are correctly set.

Q: Will the module fit in my existing control cabinet without mechanical modification?
A: The A5E00399482 is designed for the standard 6RA70 chassis form factor. If you are migrating from a 6RA24/26/28 chassis, a mechanical adapter plate may be required to match the mounting hole pattern. Cabinet depth and cooling airflow clearances (minimum 100 mm above and below the module) must also be verified per the SIMOREG DC Master installation manual (A5E00207624).

Q: What is the recommended commissioning sequence after installation?
A: (1) Verify AC supply voltage and phase sequence. (2) Check 24 VDC auxiliary supply. (3) Upload parameter set to CUD1. (4) Perform motor data identification (P051 = 25). (5) Run speed controller optimization (P051 = 26). (6) Verify PROFIBUS DP cyclic data exchange. (7) Conduct no-load and full-load test runs. (8) Document fault history via r947/r949 diagnostic registers.

Warranty Assurance

Every Siemens A5E00399482 C98043-A1716-L26 SIMOREG DC Drive Power Module shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes a multi-point outgoing inspection that includes visual examination for physical damage, verification of part number and revision label, functional power-on test where applicable, and ESD-safe packaging in anti-static foam with moisture barrier film.

If a unit develops a verified defect within the warranty period under normal operating conditions, TOPNLMS will arrange a replacement dispatch or issue a credit note at our discretion. Warranty claims are processed within 3 business days of receiving the returned unit and a completed fault description form. Our technical support team is available via email at [email protected] to assist with pre-installation verification, parameter backup guidance, and post-installation fault diagnosis — reducing the risk of warranty claims caused by installation errors.

For urgent breakdown situations, TOPNLMS maintains bonded stock of high-demand SIMOREG DC Master components to support same-day or next-business-day dispatch from our Xiamen warehouse. Export documentation, including commercial invoice, packing list, and certificate of origin, is prepared in parallel with order processing to minimize customs clearance delays for international shipments.

Procurement teams can request a formal quotation, lead time confirmation, and test report by contacting us directly. Volume pricing is available for MRO contracts and plant-wide drive replacement programs.
