Siemens A5E00381705 Ruggedized AC Drive Power Module for Harsh Environments

Product Overview

Siemens A5E00381705 Ruggedized AC Drive Power Module for Harsh Environments

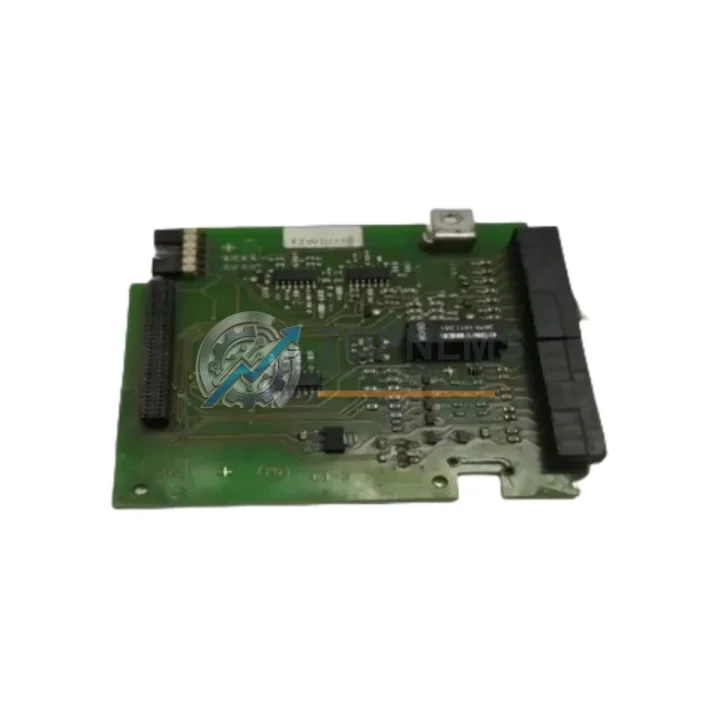

The Siemens A5E00381705 is a high-performance AC drive power module designed for the SIMOVERT MASTERDRIVES 6SE70 series, engineered to deliver uncompromising reliability in the most demanding industrial environments. Covering drive stage variants TP/EP/50/60/70 VC/MC/EBV, this module serves as the core power conversion stage in variable-speed drive systems deployed across continuous production lines, heavy industry, and safety-critical infrastructure worldwide.

Built to Siemens’ exacting standards for industrial-grade electronics, the A5E00381705 is rated for operation in environments characterized by high ambient temperatures, elevated humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference — conditions that routinely compromise lesser components. Its robust internal architecture ensures stable DC bus regulation and precise IGBT gate drive control even under sustained thermal stress, making it the preferred replacement module for plant engineers who cannot afford unplanned downtime.

Rugged Specifications Table

Comprehensive Protection Solutions

In modern industrial drive systems, the power module does not operate in isolation — it is the heart of a tightly integrated control architecture. The Siemens A5E00381705 interfaces directly with the 6SE70 Control Unit (CU), which handles closed-loop vector control, speed regulation, and fault diagnostics. Together, they form the backbone of a SIMOVERT MASTERDRIVES system capable of managing multi-axis motion in rolling mills, extruders, and hoisting applications.

For installations requiring precise torque control, the A5E00381705 pairs seamlessly with the 6SE7090 Technology Board and associated 6SE70 Pulse Encoder Interface Module, enabling encoder-based speed feedback for high-accuracy positioning. In cabinet-level deployments, the module is typically mounted alongside Siemens SITOP PSU300S industrial power supplies, which provide the stabilized 24 VDC auxiliary rail essential for control electronics under fluctuating mains conditions.

Communication integrity is maintained through the 6SE70 PROFIBUS-DP Communication Board (CBP2), allowing the drive to integrate into SIMATIC S7-300 or S7-400 PLC networks via standard DP protocol — critical for coordinated multi-drive control in paper mills and cement plants. Where safety functions are required, the system can be extended with a 6SE70 Safety Module (SBP) to implement Safe Torque Off (STO) in compliance with IEC 62061 and EN ISO 13849-1.

On the I/O side, the 6SE70 Terminal Board (TB) provides the analog and digital I/O interface between the drive and field instrumentation, including process sensors, limit switches, and emergency stop circuits. For installations in high-vibration environments such as mining conveyors or offshore platforms, the drive cabinet is typically completed with Siemens 3RT2 contactor assemblies and 3RV2 motor protection circuit breakers, ensuring upstream protection and safe isolation during maintenance. The 6SE70 Braking Module and associated braking resistor assembly round out the system for applications requiring rapid deceleration, such as crane hoists and test bench drives.

Application in Critical Infrastructure

The Siemens A5E00381705 6SE70 power module has established a proven track record across the most demanding sectors of critical infrastructure globally.

In oil and gas facilities — including offshore platforms, onshore compression stations, and pipeline pumping stations — the 6SE70 drive system controls high-power pump and compressor motors where any unplanned stop translates directly into production loss and safety risk. The module’s robust thermal management and EMC-hardened design allow it to operate reliably in environments saturated with hydrocarbon vapors and subject to extreme temperature cycling.

In mining operations, the A5E00381705 drives conveyor belts, ball mills, and winding engines under continuous duty cycles with heavy mechanical shock and vibration loads. Its ability to sustain stable vector control under rapidly varying load torques makes it indispensable for ore processing lines where motor stalls are unacceptable.

In power generation and grid infrastructure, the 6SE70 series is deployed in auxiliary drive systems for cooling fans, feedwater pumps, and fuel handling conveyors at thermal and hydroelectric power stations. The module’s compatibility with PROFIBUS-DP and SIMATIC S7 PLCs enables full integration into plant-wide DCS architectures, supporting remote monitoring and predictive maintenance strategies.

In water and wastewater treatment plants, the A5E00381705 controls submersible pump drives and aeration blowers in environments with high ambient humidity and corrosive chemical atmospheres. Its sealed power stage design and conformal-coated PCBs resist moisture ingress and chemical contamination, extending mean time between failures in these corrosive conditions.

In metallurgy and steel production, the module drives rolling mill main drives, ladle transfer cars, and continuous casting withdrawal units — applications demanding the highest levels of torque accuracy and thermal endurance. The 6SE70 EBV (Extended Braking) variant is specifically engineered for regenerative braking duty in these high-inertia applications.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
Every Siemens A5E00381705 unit shipped by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes a full functional test prior to dispatch, including power-on verification and output stage integrity checks. In the event of a warranty claim, TOPNLMS provides direct technical support and replacement coordination — no third-party intermediaries.

Q2: How is the module tested and verified before shipment?
All units are inspected against Siemens OEM specifications. Testing includes visual inspection for physical damage, PCB integrity checks, and where applicable, dynamic load testing to verify IGBT switching performance and gate drive signal integrity. A test report is available upon request for critical infrastructure procurement.

Q3: Is the A5E00381705 compatible with all 6SE70 SIMOVERT MASTERDRIVES variants?
The A5E00381705 is designed for the 6SE70 TP/EP/50/60/70 platform covering VC (Vector Control), MC (Motion Control), and EBV (Extended Braking) drive stage configurations. Compatibility with a specific drive frame size and power rating should be confirmed against the 6SE70 hardware configuration manual or by contacting our technical team at [email protected] prior to ordering.

Q4: Can TOPNLMS support long-term supply and emergency replacement requirements?
Yes. TOPNLMS maintains dedicated stock of legacy Siemens 6SE70 series components, including the A5E00381705, specifically to support plant operators managing aging drive infrastructure where OEM supply has been discontinued or lead times are unacceptable. We offer priority dispatch for emergency breakdown situations and can provide multi-unit procurement agreements for planned maintenance programs. Contact us at [email protected] or +86 18359293191 to discuss your supply requirements.
