Siemens A5E00301347 A5E00190843 Original Industrial Spare S120 Compatible: System Stability & Industrial Spare Maintenance Value

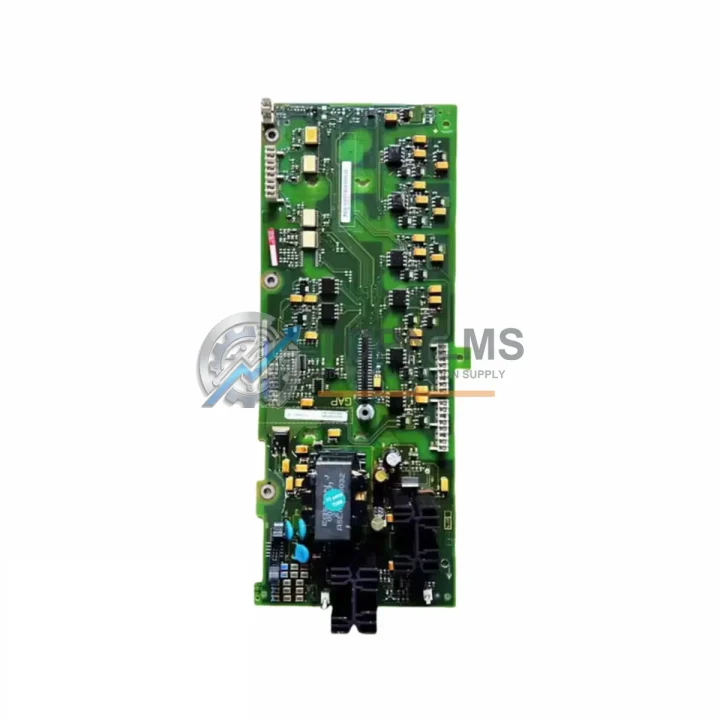

In high-demand manufacturing environments, the reliability of your drive system is non-negotiable. The Siemens A5E00301347 / A5E00190843 Drive Power Control Board is a genuine OEM component engineered for the SINAMICS S120 drive platform — one of Siemens’ most widely deployed servo and vector drive series across automotive, packaging, paper, steel, and process industries worldwide. Sourcing an original replacement board rather than an aftermarket substitute is the single most effective decision a maintenance engineer can make to protect system uptime, preserve drive calibration, and avoid cascading failures in multi-axis motion control architectures.

When a SINAMICS S120 drive trips on a power board fault — whether triggered by overcurrent, thermal overload, DC bus anomaly, or firmware-detected hardware error — the window between fault detection and production resumption is measured in hours, not days. Having the A5E00301347 in your approved spare parts inventory eliminates that uncertainty. This board is a direct plug-in replacement for the original, requiring no firmware re-flashing, no parameter re-mapping, and no mechanical modification. It restores the drive to factory-specification performance immediately upon installation.

Critical Technical Specs Table

Preventive Maintenance Strategy

A drive power control board failure rarely occurs in isolation. In a SINAMICS S120 system, the power board interfaces directly with the Control Unit (CU320-2 or CU310-2), the Line Module, and individual Motor Modules via the DRIVE-CLiQ topology. A comprehensive preventive maintenance inspection — particularly during scheduled plant shutdowns — should treat the entire drive cabinet as a system, not a collection of independent components.

When replacing or inspecting the A5E00301347 board, maintenance teams should simultaneously audit the SINAMICS S120 Control Unit (e.g., 6SL3040-1MA01-0AA0) for firmware currency and connector integrity. The DRIVE-CLiQ cables connecting the Control Unit to Motor Modules are a frequent source of intermittent faults and should be inspected for chafing, connector seating, and shield continuity. The 24 VDC SITOP power supply module feeding the control electronics should be load-tested; a sagging 24 V rail is a common root cause of spurious board faults that are misdiagnosed as PCB failures.

Within the same control cabinet, the Siemens SINAMICS S120 Active Line Module (ALM) and its associated line filter (6SL3000 series) should be checked for capacitor aging and contactor wear. The Smart Line Module (SLM) DC bus capacitors have a defined service life and should be part of any 5-year overhaul plan. Terminal blocks and Weidmüller or Phoenix Contact terminal strips on the power and signal wiring should be re-torqued to specification — loose terminals cause thermal hot spots that accelerate board degradation.

For multi-axis systems, the Siemens S120 Double Motor Module (e.g., 6SL3120-2TE21-0AA3) and Single Motor Modules in the same booksize row should be inspected for fan operation, heat sink cleanliness, and DC bus bar connection torque. The Sensor Module Cabinet-Mounted (SMC30) used for encoder feedback should be verified for signal quality — degraded encoder feedback can cause the drive to generate fault codes that appear to originate from the power board. Finally, the Braking Module and braking resistor assembly should be checked for resistor continuity and thermal cutout integrity, as a failed braking circuit places abnormal stress on the power control board during deceleration cycles.

Stocking the A5E00301347 alongside these related components as a coordinated spare kit transforms reactive maintenance into a structured, predictable program — reducing mean time to repair (MTTR) from days to under two hours for most fault scenarios.

Strategic Replacement Solutions

The SINAMICS S120 platform has been in active deployment since the early 2000s, and many installations are now operating well beyond their original design lifecycle. Siemens has progressively moved older S120 hardware variants to limited availability or phase-out status, making the procurement of original spare boards like the A5E00301347 increasingly time-sensitive. Facilities that delay sourcing these components risk facing extended lead times — or outright unavailability — precisely when an unplanned failure occurs.

The A5E00301347 / A5E00190843 is a direct OEM replacement that preserves full compatibility with the existing SINAMICS S120 firmware, parameter sets, and DRIVE-CLiQ device identification. Unlike third-party remanufactured boards, this original Siemens component carries the factory calibration data and component tolerances required for precise torque and speed regulation in servo applications. Substituting a non-original board in a high-precision axis — such as a CNC spindle drive or a tension-controlled winding application — introduces calibration risk that can result in product quality defects far more costly than the board itself.

For facilities managing aging S120 systems, a strategic approach involves purchasing one or two A5E00301347 boards as insurance stock, cross-referenced against the installed base of Motor Modules on site. This is particularly valuable for multi-shift operations where a drive fault during a night shift — when procurement channels are closed — would otherwise result in a full production stoppage until the next business day. With an on-site spare, the maintenance team can execute a board swap, restore production, and initiate the repair or replacement cycle on the failed unit without any production impact.

Support FAQ

Q1: Is the A5E00301347 compatible with all SINAMICS S120 Motor Module variants?
The A5E00301347 is designed for specific Motor Module frame sizes within the SINAMICS S120 Booksize and Chassis range. Compatibility depends on the power rating and hardware revision of your installed Motor Module. Please provide your full drive nameplate data (order number, serial number, and firmware version) when ordering, and our technical team will confirm fitment before shipment.

Q2: What pre-shipment testing is performed on this board?
Every A5E00301347 unit undergoes a functional power-on test, visual inspection for component integrity, and ESD-safe packaging before dispatch. Units sourced from original Siemens manufacturing channels are verified against known-good reference standards. A test report is available upon request for quality-critical applications.

Q3: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact us with your order number, fault description, and photographic evidence of the failure. We will arrange return logistics and provide a replacement or refund within the agreed service window.

Q4: Can I use this board to extend the life of an S120 system that Siemens has classified as discontinued?
Yes. Sourcing original spare boards is one of the most cost-effective strategies for extending the operational life of a SINAMICS S120 system beyond Siemens’ official support window. Many facilities operate legacy S120 installations for 5–10 years beyond the product’s active sales period by maintaining a curated spare parts inventory. This approach defers the capital expenditure of a full drive system upgrade while maintaining production reliability — a common and well-established practice in industrial maintenance management.
