Siemens A5E00158598 Replacement for SINAMICS Drive

Product Overview

Siemens A5E00158598 Replacement for SINAMICS Drive: Smooth Transition & Legacy System Compatibility

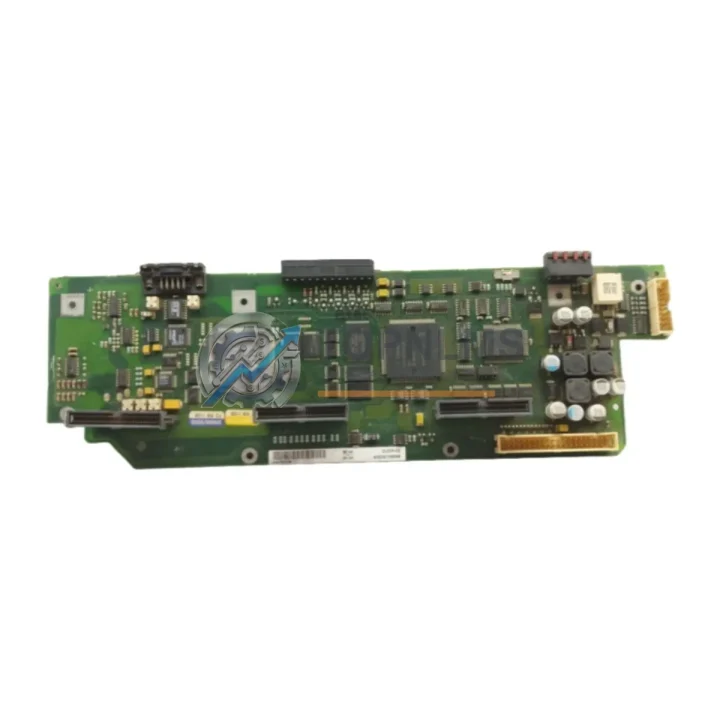

The Siemens A5E00158598 Motor Control Board is a critical component within the SINAMICS and SIMOVERT drive platform, widely deployed across industrial automation systems in manufacturing, process control, and energy sectors. As legacy SIMOVERT Masterdrives and early-generation SINAMICS S120 installations approach end-of-life, facilities engineers and procurement teams are actively seeking verified replacement and upgrade solutions that minimize downtime, preserve existing wiring infrastructure, and maintain compatibility with established control architectures.

TOPNLMS maintains ready stock of the A5E00158598 motor control board, sourced from authorized supply chains and subjected to full functional testing prior to dispatch. Whether you are executing a like-for-like swap of a failed board or planning a phased modernization of your drive system, this component provides the electrical and mechanical compatibility required for a seamless retrofit.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful motor control board replacement rarely involves a single component in isolation. During a SINAMICS or SIMOVERT drive system retrofit, engineers typically address several interdependent subsystems simultaneously to ensure system stability and reduce the risk of repeat failures.

When replacing the A5E00158598, it is common practice to inspect and, where necessary, replace the associated SINAMICS S120 Control Unit CU320-2 DP, which governs the overall drive coordination and PROFIBUS communication. If the existing CU320 is running firmware below V4.5, a firmware update or unit replacement is strongly recommended before commissioning the new motor control board.

The SINAMICS S120 Power Module PM340 and Active Line Module (ALM) should be verified for compatibility with the replacement board’s current rating. In multi-axis configurations using a shared DC bus, the SINAMICS S120 Double Motor Module or Single Motor Module may also require inspection to confirm that gate driver signals and feedback loops remain correctly synchronized after the board swap.

On the feedback side, the Siemens SMC30 Sensor Module Cabinet-Mounted is frequently used alongside the A5E00158598 in applications requiring HTL or TTL encoder evaluation. Verifying the SMC30 firmware version and encoder cable shielding integrity is a standard step in the commissioning checklist following a motor control board replacement.

For facilities still operating legacy SIMOVERT Masterdrives 6SE70 series inverters, the A5E00158598 provides a validated upgrade path that avoids the cost and complexity of full drive replacement. The existing control cabinet wiring, terminal assignments, and PROFIBUS node addresses can typically be preserved, significantly reducing engineering hours and production downtime during the changeover.

Communication continuity is a key concern in any drive modernization project. The SINAMICS CBC10 Communication Board and CBP2 PROFIBUS Communication Board are commonly retained or upgraded in parallel with the motor control board to ensure uninterrupted PLC-to-drive communication via the existing PROFIBUS DP network. Where facilities are migrating toward PROFINET, the SINAMICS CBE20 PROFINET Communication Board can be introduced at the same time, enabling a phased protocol transition without disrupting the broader control architecture.

Power distribution integrity should also be confirmed. The Siemens SITOP PSU100S 24V DC power supply is the standard auxiliary supply for SINAMICS drive electronics; verifying its output voltage stability under load is a prerequisite before energizing the replacement board. In cabinet installations where the original power supply is aging, simultaneous replacement of the SITOP unit is a cost-effective preventive measure.

Finally, for parameter backup and restoration, the Siemens STARTER commissioning software (or its successor, SINAMICS Startdrive within TIA Portal) is the recommended tool for uploading saved drive parameters to the replacement A5E00158598 board, verifying speed controller tuning, and validating encoder feedback before returning the drive to production service.

Retrofit Guidance FAQ

Q: Can I reuse the existing wiring when replacing the A5E00158598?
A: Yes. The A5E00158598 uses the same terminal layout and connector positions as the original board. No rewiring is required for standard installations. Verify cable shielding and grounding integrity before powering up.

Q: Do I need to re-enter drive parameters after replacing the board?
A: If parameters were previously saved to an MMC card or backed up via DriveMonitor or STARTER software, they can be restored directly to the replacement board. A full recommissioning run is recommended to verify speed loop tuning and encoder feedback.

Q: Is the A5E00158598 compatible with PROFIBUS DP networks?
A: Yes. The board supports PROFIBUS DP communication consistent with the SINAMICS and SIMOVERT platform. Existing PROFIBUS node addresses and telegram configurations are preserved after parameter restore.

Q: Will the replacement board fit in the existing control cabinet without modification?
A: The A5E00158598 has an identical mechanical footprint to the original board. No cabinet modification, additional mounting hardware, or DIN rail adaptation is required.

Q: What if my system uses USS protocol instead of PROFIBUS?
A: The A5E00158598 supports USS protocol communication. Existing USS parameter sets (baud rate, drive address, PKW/PZD word configuration) are compatible and can be restored from backup without modification.

Q: How do I verify the replacement board is functioning correctly before returning to production?
A: After parameter restore, perform a no-load motor run to verify speed reference tracking, check encoder feedback signals via the drive diagnostic display, and confirm PROFIBUS/USS cyclic communication status before applying full load.

Warranty Assurance

Every A5E00158598 Motor Control Board shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes a structured outgoing inspection that includes visual examination for physical damage, connector integrity verification, and functional power-on testing where applicable.

In the event of a confirmed defect within the warranty period, TOPNLMS provides replacement support with priority processing to minimize impact on your production schedule. Our technical team is available to assist with fault diagnosis, compatibility confirmation, and commissioning guidance throughout the warranty period.

Stock availability is maintained to support urgent replacement requirements. Standard lead time from order confirmation to dispatch is 1–3 business days for in-stock units, with express shipping options available for critical downtime situations. All shipments are accompanied by a packing list and, where applicable, test records.

For procurement teams requiring documentation, TOPNLMS can provide proforma invoices, product datasheets, and warranty certificates upon request. Bulk order pricing and framework agreements are available for MRO and system integrator customers.
