Siemens A5E00120261-02 Replacement for SIMATIC OP270

Product Overview

Siemens A5E00120261-02 Replacement for SIMATIC OP270: Seamless Transition & Legacy System Upgrade

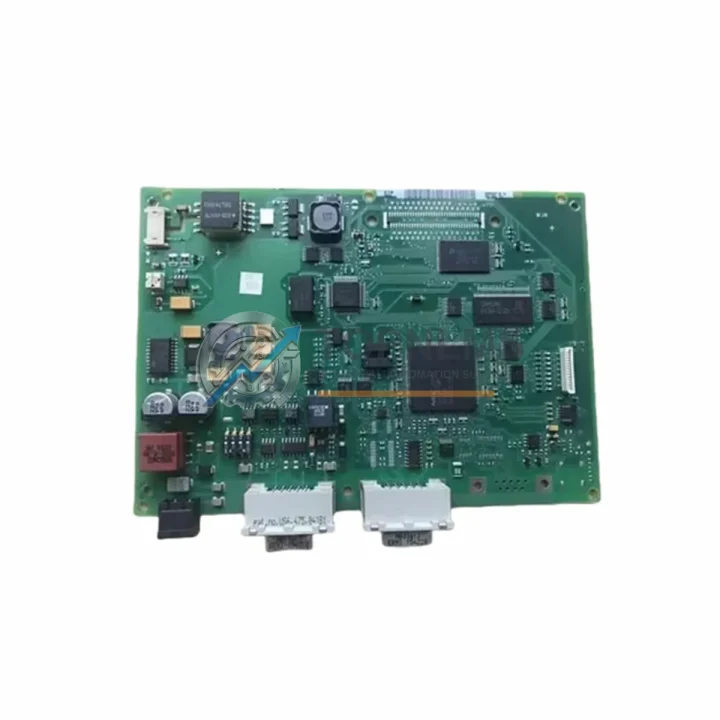

The Siemens A5E00120261-02 (order number 6AV6545-0BA15-2AX0) is the core motherboard assembly for the SIMATIC OP270 operator panel — a widely deployed HMI platform across discrete manufacturing, process control, and machine automation environments. As the OP270 series approaches end-of-life and spare parts become increasingly scarce, plant engineers and maintenance teams are actively seeking verified replacement boards and structured upgrade paths to maintain production continuity without full panel replacement.

TOPNLMS stocks this board as a tested, ready-to-ship replacement unit, sourced from decommissioned systems and verified against Siemens factory specifications. Each unit undergoes functional testing prior to dispatch, with a 12-month warranty covering board-level defects and operational failures under normal industrial use conditions.

Compatibility Comparison Table

Seamless Upgrade Solutions

Replacing the A5E00120261-02 motherboard is rarely an isolated task — it typically occurs within a broader OP270 panel refurbishment or a phased migration from an aging SIMATIC HMI infrastructure. During the board swap and recommissioning process, several companion components are commonly required or evaluated for simultaneous replacement.

The SIMATIC OP270 backlight assembly (CCFL or LED retrofit kit) is frequently replaced alongside the motherboard, as both components share similar service life cycles in high-ambient-temperature environments. If the panel has been in continuous operation for more than five years, the OP270 touch screen overlay or membrane keypad assembly should be inspected and replaced preventively to avoid a second unplanned shutdown.

For sites migrating from S7-300 CPU 315-2 DP or CPU 314C-2 DP controllers, the MPI/PROFIBUS DP connection between the OP270 and the PLC rack remains fully compatible with this board revision — no changes to the PROFIBUS DP cable or network termination resistors are required. However, if the site is simultaneously upgrading the PLC to a S7-1500 CPU 1515-2 PN, the communication path must be re-evaluated: the OP270 does not natively support PROFINET, so a SIMATIC PN/MPI Link (6GK1411-5AB00) or migration to a newer HMI panel such as the KTP700 Basic PN or KTP1000 Basic PN should be considered as a parallel workstream.

During the board replacement, the 24 VDC panel power supply feeding the OP270 should be load-tested. Aging SITOP PSU100S 24V/5A or equivalent DIN-rail power supplies in the same control cabinet often exhibit voltage droop under cold-start conditions, which can cause the replacement board to fail POST. Replacing or verifying the PSU before commissioning the new board eliminates this common false-failure scenario.

Project re-flashing requires a working PC adapter USB (6ES7972-0CB20-0XA0) or MPI/PROFIBUS PC adapter connected to the OP270’s MPI port, along with a licensed copy of WinCC flexible 2008 SP5 or ProSave for backup and restore. If the original project file (.hmi) is unavailable, TOPNLMS can advise on project recovery options. For sites that have already migrated their PLC program to TIA Portal V17/V18, note that OP270 projects cannot be imported directly — a panel migration wizard or manual recreation in WinCC flexible is required.

Where the control cabinet also houses SINAMICS G120 or MM440 variable frequency drives communicating via PROFIBUS DP, the network segment configuration (station address, baud rate) must be verified after the board swap, as the OP270 stores network parameters on the motherboard’s onboard flash. These settings are restored when the project is re-downloaded, but manual verification on the BOP-2 keypad of each drive is recommended before returning the line to production.

For sites considering a longer-term migration away from the OP270 platform entirely, the SIMATIC HMI KTP900 Basic or TP900 Comfort panels offer a compatible panel-cut upgrade path with PROFINET-native communication, TIA Portal integration, and extended product lifecycle support through 2030+. TOPNLMS can supply both the replacement A5E00120261-02 board for immediate stabilization and advise on the longer-term panel upgrade roadmap.

Retrofit Guidance FAQ

Q: Can I replace just the motherboard without replacing the entire OP270 panel?
A: Yes. The A5E00120261-02 is a board-level replacement. The panel housing, display, keypad, and front bezel remain in place. Only the internal motherboard assembly is swapped. This is the most cost-effective approach for panels with intact housings and functional displays.

Q: Do I need to rewire the 24 VDC power or communication cables?
A: No rewiring is required. The power connector, MPI/PROFIBUS DP port, RS-232 ports, and Ethernet jack are all in the same physical positions as the original board. Reconnect all cables as found after the swap.

Q: Will my existing WinCC flexible or ProTool project run on the replacement board?
A: Yes, provided the project was created for the OP270 10″ panel. After the board swap, download the project via ProSave or WinCC flexible using a PC adapter connected to the MPI port. The board will boot to the project normally after a successful download.

Q: What communication protocols does this board support?
A: MPI (up to 12 Mbit/s), PROFIBUS DP (up to 12 Mbit/s), RS-232 (COM1 for barcode scanners or printers, COM2 for PLC point-to-point), and 10/100 Mbit Ethernet (for project transfer and optional S7 Ethernet communication). PROFINET is not supported natively on the OP270 platform.

Q: The panel shows a black screen after board installation — what should I check?
A: First verify 24 VDC supply voltage at the panel terminal (should be 18–30 V under load). Second, confirm the backlight assembly is connected to the new board’s backlight header. Third, attempt a project download via MPI — the board may boot to a blank screen if no project is loaded. If the screen remains black after a confirmed project download, contact TOPNLMS support for RMA evaluation.

Q: Is the board compatible with S7-1200 or S7-1500 PLCs?
A: The OP270 can communicate with S7-1200 via MPI (using a PN/MPI link gateway) and with S7-300/400 natively via MPI or PROFIBUS DP. Direct PROFINET communication to S7-1500 is not supported without a gateway device. For new installations targeting S7-1500, a KTP700 or KTP900 Basic PN panel is recommended.

Q: How much physical space does the board swap require?
A: The board swap is performed inside the existing OP270 chassis. No additional panel cutout or cabinet space is required. Standard ESD precautions and a Torx T10 screwdriver are sufficient for the procedure.

Warranty Assurance

Every Siemens A5E00120261-02 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Our pre-shipment testing protocol includes power-on verification, display output confirmation, communication port continuity check, and boot-to-OS validation using a reference OP270 chassis.

If a unit fails within the warranty period under normal operating conditions (24 VDC supply within specification, ambient temperature within OP270 rated range, no physical damage or unauthorized modification), TOPNLMS will provide a free replacement unit with priority dispatch. Return shipping for warranty claims is covered by TOPNLMS for the first 90 days; after 90 days, the customer is responsible for return freight.

Our typical order processing time is 1–2 business days from payment confirmation, with DHL Express, FedEx International Priority, and UPI air freight options available for urgent requirements. Customers in Southeast Asia, the Middle East, and Europe typically receive shipments within 3–7 business days from our Xiamen warehouse.

For bulk procurement, OEM integrators, and MRO stocking programs, TOPNLMS offers volume pricing, consignment stock arrangements, and dedicated account management. Contact our technical sales team to discuss your specific requirements.

All units are shipped in anti-static packaging with foam cushioning, accompanied by a test report and packing list. Export documentation (commercial invoice, packing list, and certificate of origin) is provided as standard for international shipments.
