Siemens A5E00105203 Original Industrial Spare MASTERDRIVES 6SE70 Compatible

Product Overview

Siemens A5E00105203 Original Industrial Spare MASTERDRIVES 6SE70 Compatible: Ensuring System Stability in Critical Drive Applications

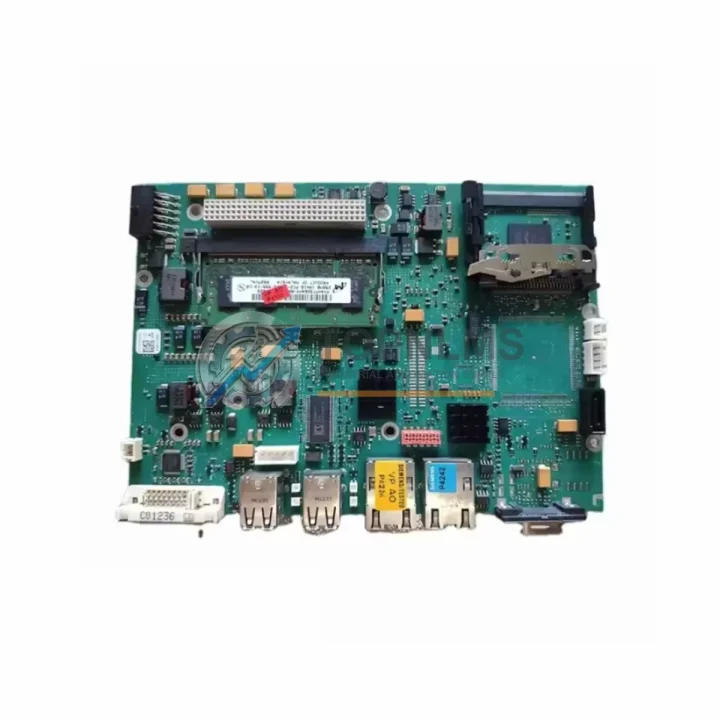

The Siemens A5E00105203 is an original CU (Control Unit) Vector Control Board designed for the SIEMENS MASTERDRIVES 6SE70 series AC drive platform — one of the most widely deployed variable-frequency drive systems in heavy industrial environments worldwide. Whether you are managing a steel mill, chemical processing plant, paper machine line, or large-scale HVAC system, the 6SE70 drive platform remains a backbone of production continuity. When the CU Vector Control Board fails, the entire drive axis goes offline. Sourcing a verified original replacement — not a counterfeit or incompatible substitute — is the single most important decision in your maintenance response.

At TOPNLMS, every A5E00105203 unit is sourced from authorized industrial supply channels, individually inspected, and function-tested prior to shipment. Each unit ships with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Critical Technical Specs

Preventive Maintenance Strategy

A failed CU Vector Control Board rarely occurs in isolation. In most field cases, the root cause involves cascading stress across the drive’s power and control subsystems. A disciplined preventive maintenance approach — one that addresses the full drive ecosystem rather than just the failed component — is the most effective way to reduce unplanned downtime and extend the operational life of aging 6SE70 installations.

When replacing the A5E00105203, maintenance engineers should simultaneously inspect the 6SE70 Power Interface Board (A5E00105204 or equivalent), which handles the signal bridge between the control unit and the IGBT power stack. Degraded signal integrity on the power interface board is a common secondary failure mode that can damage a newly installed control board within weeks if left unaddressed.

The 6SE70 IGBT power module and associated gate driver board should be checked for thermal stress marks, capacitor bulging, and insulation resistance. These components share the same thermal environment as the CU board and are subject to the same aging cycles. If the drive has been in service for more than seven years, proactive replacement of the DC bus capacitor bank is strongly recommended — capacitor degradation is the leading cause of repeat control board failures in mature 6SE70 installations.

On the control cabinet level, inspect the 24VDC auxiliary power supply module that feeds the control electronics. Voltage ripple or dropout events from an aging SITOP or equivalent PSU are frequently misdiagnosed as control board faults. A calibrated power quality check at the control board’s supply terminals takes less than ten minutes and can prevent a costly misdiagnosis.

The encoder feedback module (such as the SBP or SBR option board for 6SE70) should be verified for connector integrity and signal quality. Vector control performance depends entirely on accurate speed feedback; a degraded encoder interface will cause erratic torque behavior even after a successful control board replacement. Similarly, the PROFIBUS or PROFINET communication module installed in the drive should be inspected for firmware version compatibility with the replacement CU board.

At the field wiring level, check the terminal block assemblies and signal cable shielding connected to the CU board’s analog and digital I/O terminals. Loose terminations and compromised cable shields are a persistent source of nuisance faults in 6SE70 drives operating in high-EMI environments such as steel processing or large motor rooms. Replacing worn Phoenix Contact or Weidmüller terminal blocks during the same maintenance window is a low-cost, high-value action.

Finally, if the drive is part of a multi-axis MASTERDRIVES system, verify the common DC bus connection hardware and the braking resistor module for signs of thermal fatigue. A single failing axis in a common DC bus configuration can inject voltage transients that stress control electronics across the entire drive line.

Strategic Replacement Solutions

The Siemens MASTERDRIVES 6SE70 platform was introduced in the mid-1990s and remains in active service across thousands of industrial facilities globally. Siemens has progressively transitioned support toward the SINAMICS S120 and G120 platforms, making original 6SE70 spare parts increasingly difficult to source through standard distribution channels. This supply constraint makes proactive spare parts inventory — particularly for high-criticality components like the CU Vector Control Board — a strategic imperative rather than an optional convenience.

The A5E00105203 is a direct form-fit-function replacement for the original board. No firmware re-flashing or parameter re-entry is required beyond the standard drive commissioning procedure documented in the 6SE70 operating instructions (Siemens document 6SE7087-6AK85-0AA0). This means replacement can be completed by a qualified maintenance technician in under two hours, minimizing production downtime to the shortest possible window.

For facilities managing multiple 6SE70 drives, maintaining a minimum of one A5E00105203 board in local spare parts inventory eliminates the lead time risk entirely. Given the global supply chain constraints on legacy Siemens drive components, procurement lead times from standard distributors can range from four to sixteen weeks. A locally stocked unit reduces your worst-case downtime from weeks to hours.

TOPNLMS ships globally with standard lead times of 3–7 business days for in-stock units. All units are packed in anti-static ESD-safe packaging with foam cushioning to prevent transit damage. A detailed inspection report and test record accompany each shipment upon request.

Support FAQ

Q1: Is the A5E00105203 compatible with all 6SE70 frame sizes?
The A5E00105203 CU Vector Control Board is designed for the MASTERDRIVES 6SE70 Vector Control platform. Compatibility depends on the specific drive variant (e.g., 6SE7021, 6SE7031, 6SE7041 frame sizes). Please confirm your drive’s full order number from the nameplate before ordering. Our technical team can assist with compatibility verification at [email protected].

Q2: What is covered under the 12-month warranty?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed within 5 business days of receiving the returned unit.

Q3: How is the board tested before shipment?
Each A5E00105203 unit undergoes a functional verification test on a compatible 6SE70 drive test bench prior to dispatch. Key parameters checked include control signal integrity, communication interface response, and power supply rail stability. A test record is available upon request.

Q4: Can I stock this part as a long-term inventory spare?
Yes. Electronic control boards stored in a dry, temperature-controlled environment (15–25°C, <60% RH) in their original ESD-safe packaging maintain functional integrity for 5–10 years. For facilities with multiple 6SE70 drives, we recommend maintaining at least one A5E00105203 in local inventory to eliminate lead time risk during unplanned outages.
