Siemens 86002249 Z-OC Replacement for SINUMERIK

Product Overview

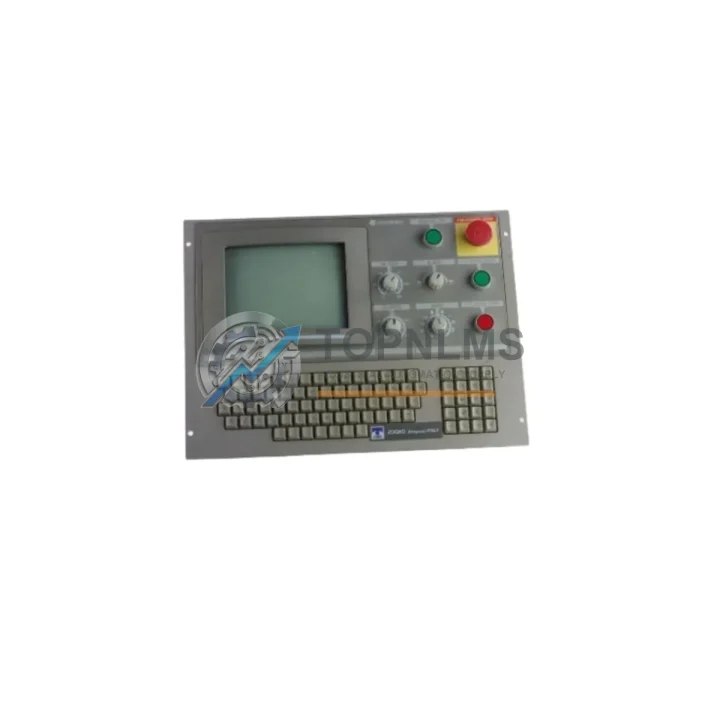

Siemens 86002249 Z-OC Replacement for SINUMERIK: Smooth Transition & Legacy System Compatibility

When your SINUMERIK CNC control system relies on the Siemens 86002249 Z-OC operator panel and the original unit reaches end-of-life or becomes unavailable through standard supply channels, a carefully managed replacement strategy is essential to minimize production downtime. The 86002249 Z-OC is a dedicated operator panel designed for Siemens SINUMERIK CNC controllers, providing the human-machine interface layer between the machine operator and the underlying CNC logic. TOPNLMS supplies this unit as a direct replacement or upgrade solution, fully tested and backed by a 12-month warranty, ready to ship from Xiamen to global destinations.

Facilities running legacy SINUMERIK 810, 820, or 840 series CNC systems frequently encounter the challenge of sourcing operator panels that maintain full compatibility with existing wiring harnesses, panel cutout dimensions, and communication interfaces. The 86002249 Z-OC integrates directly into these architectures without requiring modifications to the machine cabinet layout or the CNC controller backplane. The panel’s connector pinout and signal assignments align with the SINUMERIK standard, meaning field engineers can complete the swap using existing cable assemblies and without reprogramming the NC kernel or PLC logic stored in the controller.

From a physical installation perspective, the 86002249 Z-OC maintains the same mounting footprint as predecessor operator panels used in SINUMERIK-based machine tool cabinets. This is particularly valuable in retrofit scenarios where the machine enclosure has fixed cutout dimensions and there is no budget or schedule allowance for sheet metal rework. The panel mounts using standard M4 fasteners and the rear connector block mates directly with the existing operator panel cable from the SINUMERIK NCU or CCU module.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful SINUMERIK operator panel replacement rarely occurs in isolation. In most retrofit projects, the 86002249 Z-OC is installed alongside a broader set of system components that must all function cohesively. When the NCU module — such as the Siemens SINUMERIK NCU 571, NCU 572, or NCU 573 — is also being refreshed, the operator panel replacement can be coordinated with the NCU swap to ensure firmware compatibility and consistent HMI behavior across the updated system.

In machine tool environments where the SINUMERIK system communicates with drive components via Profibus DP, the operator panel change must be validated against the drive configuration stored in units such as the Siemens SIMODRIVE 611 drive module or the SINAMICS S120 drive system. These drives retain their parameterization independently of the operator panel, so the replacement does not require drive re-commissioning in most cases. However, if the project scope includes upgrading from SIMODRIVE 611 to SINAMICS S120, the operator panel firmware version should be confirmed compatible with the new drive communication profile.

The machine’s I/O interface — typically handled by Siemens SINUMERIK I/O modules or PP 72/48 peripheral modules — connects to the NCU independently of the operator panel. Replacing the 86002249 Z-OC does not affect I/O mapping or PLC address assignments, which significantly reduces the risk of unintended machine behavior during commissioning. Field engineers can verify I/O status directly from the replacement panel’s diagnostic screens once the unit is powered and communicating with the NCU.

For machines where the operator panel communicates over MPI rather than Profibus DP, the MPI bus termination resistors and cable topology should be inspected before installation. The Siemens MPI programming cable (PC Adapter USB or equivalent) is recommended for any pre-installation parameter backup from the NCU, ensuring that the NC program, tool offsets, and zero-point data are preserved before the panel swap begins. This is standard practice when replacing any HMI component in a live production environment.

In control cabinets where space is constrained, the 86002249 Z-OC’s identical form factor eliminates the need to relocate adjacent components such as the machine control panel (MCP), the handwheel interface unit, or the operator panel bus coupler. This is especially relevant in compact machining center cabinets where the operator station, NCU rack, and power supply modules share a tightly organized enclosure. The 24 V DC power feed to the operator panel can remain connected to the existing SITOP power supply module without any current rating recalculation, as the replacement panel draws equivalent power to the original.

Retrofit Guidance FAQ

Q: Does replacing the 86002249 Z-OC require any changes to the NC or PLC program?
A: No. The operator panel is a display and input device; it does not store NC programs or PLC logic. All programs reside in the NCU module. The replacement panel communicates with the NCU using the same protocol and address as the original, so no software changes are required.

Q: Is the wiring connector on the 86002249 Z-OC identical to the panel it replaces?
A: Yes. The rear connector block is pin-compatible with the standard SINUMERIK operator panel cable. The existing cable harness can be reconnected directly without modification or adapter cables.

Q: What communication protocol does the 86002249 Z-OC use?
A: The panel communicates with the SINUMERIK NCU via the operator panel bus, which uses MPI or Profibus DP depending on the NCU generation. The 86002249 Z-OC is compatible with the standard SINUMERIK OP bus configuration used in 810, 820, and 840 series systems.

Q: Will the physical dimensions fit the existing cabinet cutout?
A: Yes. The 86002249 Z-OC maintains the standard SINUMERIK operator panel mounting dimensions. No cabinet modification, sheet metal work, or adapter frame is required.

Q: How should we handle the transition to minimize machine downtime?
A: We recommend backing up all NC data and PLC programs via the MPI programming cable before beginning the swap. The physical replacement typically takes under 30 minutes for an experienced field engineer. Power-on and communication verification can be completed within the same maintenance window.

Q: Can this panel be used as a spare for multiple machines running SINUMERIK?
A: Yes. The 86002249 Z-OC is a standard SINUMERIK operator panel and can serve as a universal spare across compatible machine tool installations, reducing the number of unique spare part numbers that need to be stocked.

Warranty Assurance

Every Siemens 86002249 Z-OC unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a functional inspection to verify display operation, keypad response, connector integrity, and communication interface continuity. Units that do not meet our quality threshold are not shipped.

In the event of a warranty claim, TOPNLMS provides replacement support with priority processing to minimize the impact on your production schedule. Our after-sales response team is reachable via email and phone, and warranty cases are acknowledged within one business day. Replacement units are dispatched from our Xiamen warehouse, with express shipping options available for urgent requirements.

For procurement teams, we can provide a product test report and packing list upon request. We accept purchase orders from industrial end-users, system integrators, and MRO distributors. Lead time for in-stock units is typically 3–5 business days for international shipments, with DHL, FedEx, and UPS express options available.

TOPNLMS maintains inventory of SINUMERIK operator panels and related CNC components to support both planned maintenance programs and emergency breakdown situations. Contact our team to confirm current stock availability and request a quotation.
