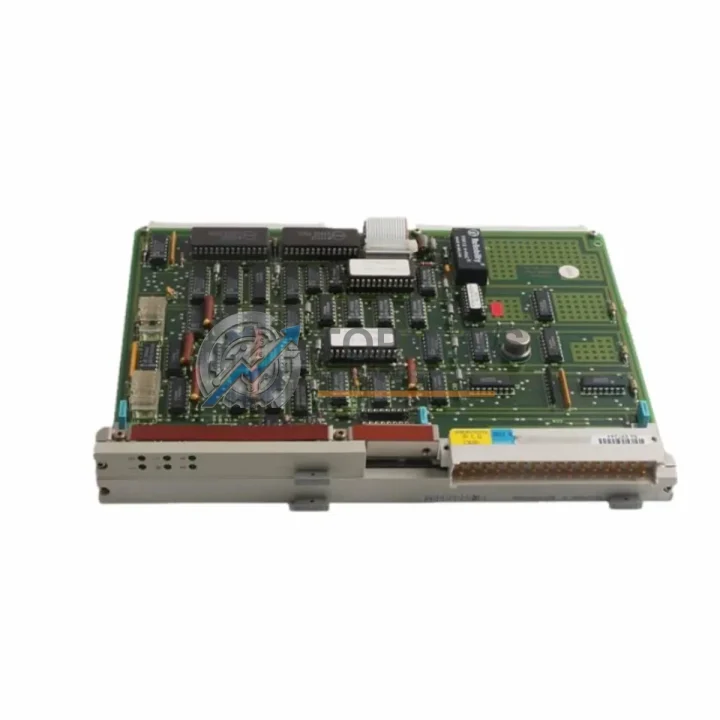

Siemens 700-443-0TP01 S7-TCP/IP CP Replacement Module

Product Overview

Siemens 700-443-0TP01 S7-TCP/IP CP Replacement & Upgrade Solution: Seamless Transition from Legacy SIMATIC Systems

The Siemens 700-443-0TP01 (order reference: S7-TCP/IP 200-8000-01) is a Communications Processor (CP) module originally designed for integration within SIMATIC S7-200 and early S7-300 control architectures. As Siemens has progressively phased out this product line, plant engineers and procurement teams across manufacturing, utilities, and process industries are actively seeking verified replacement and upgrade pathways that preserve existing wiring infrastructure, minimize reprogramming effort, and reduce unplanned downtime.

TOPNLMS maintains tested, ready-to-ship stock of the 700-443-0TP01 S7-TCP/IP 200-8000-01 CP module, sourced from authorized distribution channels and subject to full functional verification prior to dispatch. Each unit ships with a 12-month warranty, outbound inspection documentation, and dedicated post-sale technical support — giving procurement engineers and maintenance managers the confidence to plan both emergency replacements and scheduled retrofit projects.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy SIMATIC S7-200 communications architecture to a TCP/IP-based network rarely involves a single component swap. In practice, field engineers replacing the 700-443-0TP01 CP module will typically audit and, where necessary, update several adjacent components to ensure end-to-end system integrity.

On the controller side, the CPU 224XP and CPU 226 — the most common S7-200 central processing units paired with this CP module — generally require no firmware changes when the 700-443-0TP01 is installed as a direct replacement. The existing I/O expansion modules, such as the EM 223 digital I/O module and EM 231 analog input module, remain fully operational on the S7-200 expansion bus without rewiring.

For sites upgrading from a serial MPI or PPI topology to Ethernet, the addition of a PC Adapter USB A2 or equivalent programming cable allows STEP 7 Micro/WIN to communicate with the CPU over the local MPI port during commissioning, while the 700-443-0TP01 handles Ethernet traffic independently. This dual-access approach is particularly valuable during phased cutover, where the SCADA or HMI system — often a SIMATIC HMI TP177B or similar operator panel — must remain online while the communications layer is being reconfigured.

In control cabinet environments where DIN rail space is constrained, the compact form factor of the 700-443-0TP01 is a significant advantage. Unlike some third-party Ethernet gateways that require an external 24 VDC power supply module and additional terminal blocks, this CP module draws power directly from the S7-200 backplane, eliminating the need for panel modifications. Sites that do require supplementary power conditioning — particularly in high-noise industrial environments — may benefit from adding a SITOP PSU100S 24 VDC stabilized power supply upstream of the PLC rack.

For applications where the TCP/IP network must interface with legacy Profibus DP field devices — such as variable frequency drives, remote I/O stations, or distributed motor control centers — a DP/AS-Interface Link 20E or a dedicated Profibus DP communication module can be retained in the existing rack alongside the 700-443-0TP01, preserving field device connectivity without requiring re-engineering of the Profibus segment. Similarly, where signal isolation between the Ethernet network and field wiring is required, a signal isolator or surge protection module installed at the cabinet entry point is recommended practice for long-cable industrial installations.

Finally, for sites planning a longer-term migration toward S7-1200 or S7-1500 platforms, the 700-443-0TP01 serves as an effective interim solution: it stabilizes the communications layer of the existing S7-200 system, extends its serviceable life, and allows engineering teams to plan the full platform migration — including new SIMATIC S7-1200 CPU modules and TIA Portal-based programming — on a controlled schedule rather than under emergency conditions.

Retrofit Guidance FAQ

Q: Can I retain my existing Ethernet wiring when replacing the CP module?
A: Yes. The 700-443-0TP01 uses a standard RJ45 interface. Existing Cat5e or Cat6 patch cables connected to your network switch or SCADA system can be reconnected directly without modification.

Q: Do I need to rewrite my STEP 7 Micro/WIN program after installing this module?
A: In most cases, no. The TCP/IP communication blocks (ETH_CTRL, T_SEND, T_RCV) configured in your existing project remain valid. You will need to re-enter the IP address, subnet mask, and gateway parameters using the Ethernet wizard in STEP 7 Micro/WIN, but the application logic itself does not require modification.

Q: Is the 700-443-0TP01 compatible with both S7-200 CPU 224 and CPU 226?
A: Yes. This CP module is compatible with the full S7-200 CPU range that supports expansion modules, including CPU 222, CPU 224, CPU 224XP, and CPU 226. Verify your CPU firmware version is at V2.0 or above for full TCP/IP functionality.

Q: What happens to my Profibus DP field devices during the Ethernet CP replacement?
A: The 700-443-0TP01 handles Ethernet (TCP/IP) communications only and does not affect the Profibus DP port on the CPU or any dedicated Profibus CP modules installed in the same rack. Your Profibus field devices will continue to operate normally during and after the replacement.

Q: How much physical space does this module require in the control cabinet?
A: The 700-443-0TP01 occupies a single S7-200 expansion module slot on the DIN rail. No additional panel cutouts, external enclosures, or cable management modifications are required.

Q: Can this module communicate with third-party SCADA systems over TCP/IP?
A: Yes. The module supports standard TCP/IP socket communication, making it compatible with most SCADA and HMI platforms that support Ethernet-based data exchange, including those using Modbus TCP wrappers or custom socket protocols.

Warranty Assurance

Every 700-443-0TP01 S7-TCP/IP 200-8000-01 unit dispatched by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our pre-shipment inspection process includes power-on functional verification, communications port testing, and visual inspection for physical integrity — ensuring that the unit you receive is ready for immediate installation.

In the event of a warranty claim, TOPNLMS provides a straightforward replacement process: contact our technical support team at [email protected] or +86 18359293191 with your order reference and a description of the fault. Replacement units are dispatched within 2 business days of claim approval, and return shipping of the defective unit is coordinated by our logistics team.

For procurement teams managing planned maintenance schedules or emergency breakdown situations, TOPNLMS maintains buffer stock of the 700-443-0TP01 and related S7-200 series components. Same-day dispatch is available for orders confirmed before 14:00 CST. International shipping to Southeast Asia, the Middle East, Europe, and the Americas is supported via DHL Express, FedEx, and UPS, with full tracking provided at the time of dispatch.

Our after-sales team includes engineers with hands-on SIMATIC S7 commissioning experience, available to assist with installation queries, parameter configuration, and compatibility verification — at no additional charge during the warranty period.
