Siemens 6SX7010-0KC00 Replacement for MASTERDRIVES MC/VC

Product Overview

Siemens 6SX7010-0KC00 Replacement for MASTERDRIVES MC/VC: Seamless Transition & Legacy System Compatibility

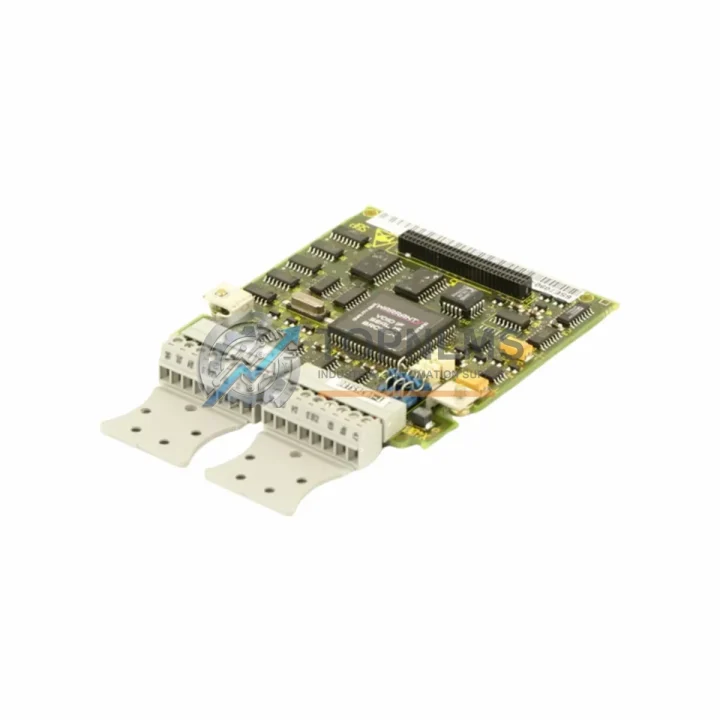

The Siemens 6SX7010-0KC00 (cross-reference: 6SE7090-0XX84-0KC0) is the Control Expansion Board designed for the SIMOVERT MASTERDRIVES MC (Motion Control) and MASTERDRIVES VC (Vector Control) drive series. As Siemens progressively phases out legacy MASTERDRIVES hardware in favor of the SINAMICS platform, sourcing a verified replacement or upgrade-compatible unit for the 6SX7010-0KC00 has become a critical procurement priority for plant engineers, maintenance teams, and system integrators managing aging drive infrastructure.

At TOPNLMS, we stock tested and verified 6SX7010-0KC00 boards to support your retrofit, emergency replacement, or planned migration program — with same-week dispatch from our Xiamen warehouse and a 12-month warranty on every unit.

Compatibility Comparison Table

Seamless Upgrade Solutions: Migration-Ready Components for MASTERDRIVES Systems

Replacing the 6SX7010-0KC00 is rarely an isolated task. In most MASTERDRIVES MC/VC retrofit projects, the control expansion board swap is part of a broader system modernization effort. Engineers typically address the drive’s communication stack, I/O interface, and power distribution simultaneously to minimize future downtime and ensure the upgraded system meets current plant network standards.

When migrating from a legacy MASTERDRIVES cabinet, the PROFIBUS DP communication module (such as the 6SE7090-0XX84-0FF5 CBP2 board) is often replaced alongside the control expansion board to restore reliable fieldbus connectivity to the SIMATIC S7 PLC or DCS host. In parallel, the 6SX7010-0AA00 basic interface board may require inspection or replacement if the drive has experienced backplane communication faults during the legacy period.

For sites running mixed MASTERDRIVES VC and MC frames in the same control cabinet, the 6SE7090-0XX84-0AB0 terminal expansion module provides additional analog and digital I/O channels that simplify the transition from hardwired relay logic to parameterized drive control — reducing the need for external signal conditioning hardware. Where signal isolation is required between the drive output and field instrumentation, DIN-rail mounted signal isolators rated for ±10 V analog channels are commonly integrated during the retrofit.

Power supply integrity is another key consideration. The SITOP PSU100S 24 V DC power supply is frequently specified during MASTERDRIVES cabinet refurbishments to replace aging unregulated DC rails that may have caused intermittent control board resets. Pairing a stable 24 V SITOP supply with the replacement 6SX7010-0KC00 board eliminates a common root cause of unexplained drive faults in older installations.

For commissioning and parameter backup, the 6SE7090-0XX84-0KA0 PC adapter cable (or equivalent USS-to-RS232 programming cable) is essential when using DriveMonitor on a Windows engineering station to upload, compare, and restore drive parameter sets before and after the board swap. This step is critical for verifying that speed reference scaling, ramp times, and torque limits are correctly transferred to the replacement board.

Sites planning a longer-term migration from MASTERDRIVES to the SINAMICS G120 or S120 platform should note that the 6SX7010-0KC00 replacement extends the operational life of the existing MASTERDRIVES frame, buying time for a structured migration without emergency shutdowns. The SINAMICS S120 CU320-2 DP control unit and its associated SMC30 sensor module are the typical target components when a full platform migration is eventually executed, and TOPNLMS can support procurement of both legacy MASTERDRIVES spares and new SINAMICS components within the same purchase order.

HMI connectivity is also addressed during many MASTERDRIVES retrofit projects. Where a SIMATIC OP7 or OP17 operator panel is still in service communicating with the drive via MPI or PROFIBUS, the replacement 6SX7010-0KC00 board maintains protocol compatibility, preserving the existing HMI configuration without requiring panel reprogramming.

Retrofit Guidance FAQ

Q: Can I replace the 6SX7010-0KC00 without modifying the existing field wiring?
A: Yes. The 6SX7010-0KC00 is a direct slot-in replacement for the MASTERDRIVES MC/VC option board position. All existing terminal block connections and field wiring are retained. No rewiring is required at the drive terminal strip.

Q: Do I need to re-parameterize the drive after replacing the control expansion board?
A: It is strongly recommended to back up the existing parameter set using DriveMonitor before removing the old board. After installing the replacement 6SX7010-0KC00, restore the parameter backup via the USS programming cable. Verify key parameters including P100 (control mode), P300 (motor data), and ramp function settings before returning the drive to service.

Q: Is PROFIBUS DP communication maintained after the board swap?
A: The 6SX7010-0KC00 itself is the control expansion board, not the PROFIBUS communication board. PROFIBUS DP connectivity is handled by the CBP2 option board (e.g., 6SE7090-0XX84-0FF5) installed in a separate slot. Replacing the control expansion board does not affect PROFIBUS operation, provided the CBP2 board remains installed and functional.

Q: Will the replacement board fit in the same physical slot without panel modifications?
A: Yes. The 6SX7010-0KC00 uses the standard MASTERDRIVES option board form factor. No panel cutout changes, DIN rail modifications, or additional mounting hardware are required. The board slides into the existing slot and secures with the original retention mechanism.

Q: What is the lead time and how is the unit tested before shipment?
A: Units are dispatched from our Xiamen warehouse within 3–5 business days of order confirmation. Each board undergoes functional verification and visual inspection prior to packaging. Express international shipping (DHL / FedEx) is available for urgent requirements. A 12-month warranty is included with every unit.

Q: Can TOPNLMS support a full MASTERDRIVES-to-SINAMICS migration project?
A: Yes. We supply both legacy MASTERDRIVES spare parts (for interim operation) and new SINAMICS S120/G120 components (for planned migration). Contact our technical team at [email protected] to discuss your project timeline and BOM requirements.

Warranty Assurance

Every Siemens 6SX7010-0KC00 Control Expansion Board supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our warranty program is designed to meet the procurement standards of industrial maintenance teams and MRO buyers who require documented quality assurance as part of their supplier qualification process.

Pre-shipment testing: Each unit is visually inspected and functionally verified before dispatch. Boards showing any signs of physical damage, component degradation, or parameter corruption are quarantined and not shipped.

Warranty coverage: The 12-month warranty covers manufacturing defects, functional failures under normal operating conditions, and DOA (Dead on Arrival) claims. Warranty claims are processed within 5 business days of receipt of the returned unit.

Replacement support: In the event of a warranty claim, TOPNLMS will ship a verified replacement unit upon confirmation of the fault. Return shipping labels are provided for warranty returns at no additional cost to the buyer.

After-sales response: Our technical support team is available via email ([email protected]) and phone (+86 18359293191) to assist with installation questions, parameter restoration guidance, and compatibility verification during the warranty period.

Procurement documentation: Certificate of conformity, packing list, and commercial invoice are provided with every shipment. Additional documentation (test reports, country of origin certificates) is available upon request for customs and quality audit purposes.
