Siemens 6SN1146-1BB02-0CA2 Replacement for SIMODRIVE 611: Smooth Transition & Legacy System Compatibility

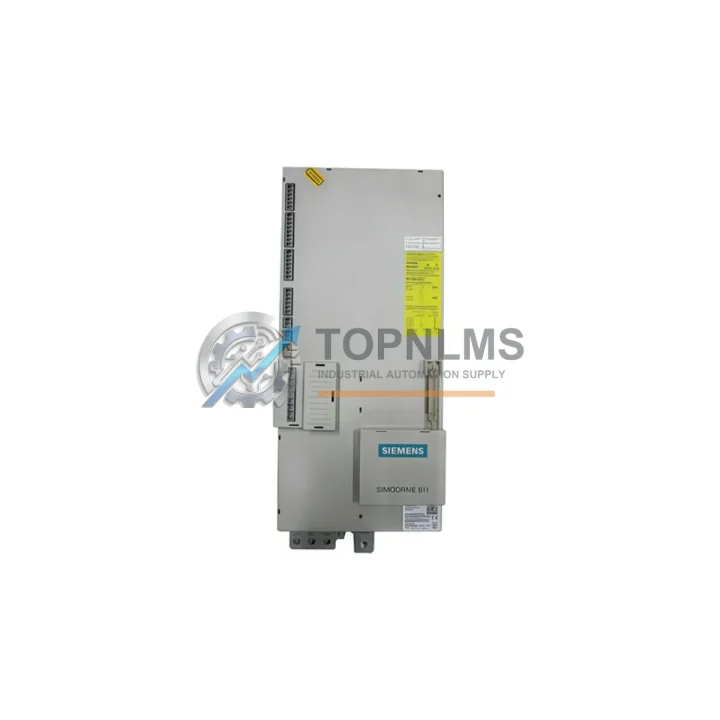

The Siemens 6SN1146-1BB02-0CA2 is a high-performance Infeed Regenerative Feedback Module within the SIMODRIVE 611 drive system platform. Designed for regulated infeed and regenerative energy feedback to the DC bus, this module is a critical component in CNC machine tool control cabinets, automated production lines, and multi-axis servo drive systems. As legacy SIMODRIVE 611 installations age and original modules become increasingly difficult to source, the 6SN1146-1BB02-0CA2 serves as the verified drop-in replacement for discontinued or end-of-life infeed units — enabling engineers to restore full drive system functionality with minimal downtime and zero reprogramming.

For facilities operating older SINUMERIK 840D or SINUMERIK 810D CNC systems, the SIMODRIVE 611 drive bus architecture remains the backbone of spindle and feed axis control. The 6SN1146-1BB02-0CA2 slots directly into the existing SIMODRIVE 611 power module rack, sharing the same DC link bus bar, drive bus connector, and 24 VDC auxiliary supply as the original infeed unit. No mechanical rework of the control cabinet is required — the module’s physical footprint and mounting interface are fully compatible with standard SIMODRIVE 611 booksize enclosures.

When replacing a failed or obsolete infeed module such as the earlier 6SN1145-1BA01-0BA2 or 6SN1146-1BB00-0CA2, engineers will find that the 6SN1146-1BB02-0CA2 maintains backward wiring compatibility on the X9 mains connection terminal and the X181 drive bus interface. The regenerative feedback circuit topology is preserved, meaning existing line reactors, input fuses, and contactor wiring do not need to be modified. This dramatically reduces retrofit labor hours and eliminates the risk of wiring errors during changeover.

From a communications and control architecture perspective, the 6SN1146-1BB02-0CA2 integrates seamlessly with the SIMODRIVE 611 digital drive bus (SIMODRIVE bus protocol), which links the infeed module to downstream power modules such as the 6SN1123-1AA00-0HA2 single-axis and 6SN1124-1AA00-0DA2 double-axis drive modules. The NCU (Numerical Control Unit) communicates with the drive system via the PROFIBUS-DP interface on the SINUMERIK controller — no changes to the PLC or NC program are needed when swapping the infeed module, as the drive bus topology and axis parameterization remain intact.

For system integrators managing a broader SIMODRIVE 611 retrofit, the 6SN1146-1BB02-0CA2 is typically deployed alongside the 6SN1162-0GA00-0AA0 shield connection terminal and the 6SN1111-0AA01-1BA0 line filter to ensure EMC compliance and stable DC bus operation. In applications where the original 6SN1161-1AA01-0AA0 monitoring module is also being replaced, the new infeed module’s integrated monitoring functions provide equivalent overcurrent, overvoltage, and ground fault protection without requiring an external monitoring card.

Installation space within the control cabinet is a common concern during SIMODRIVE 611 upgrades. The 6SN1146-1BB02-0CA2 occupies the same booksize slot width as its predecessors, and its cooling airflow requirements are identical — bottom-to-top forced air cooling via the standard SIMODRIVE 611 fan unit. If the existing 6SN1162-0EA00-0AA0 fan and brake resistor module is already installed in the cabinet, no additional thermal management modifications are necessary.

For facilities that have already migrated their CNC control layer to a SINUMERIK 828D or are planning a phased migration, the SIMODRIVE 611 drive system can continue to operate in parallel during the transition period. The 6SN1146-1BB02-0CA2 supports this hybrid architecture, allowing the drive hardware to remain in service while the NC and PLC software is progressively updated. This phased approach minimizes production interruption and allows commissioning engineers to validate each axis independently before full system handover.

Procurement teams will note that the 6SN1146-1BB02-0CA2 is available from TOPNLMS stock, tested prior to shipment, and covered by a 12-month warranty. Units are dispatched from our Xiamen warehouse with full export documentation, and expedited shipping options are available to minimize line-down situations. Our technical team can provide pre-shipment test reports and assist with parameter backup and restoration procedures for SIMODRIVE 611 systems using the SIMODRIVE 611 start-up tool or STARTER software.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful SIMODRIVE 611 infeed module replacement rarely involves a single component in isolation. During the retrofit process, engineers frequently address adjacent modules that have reached end-of-life concurrently. The 6SN1123-1AA00-0HA2 single-axis power module and 6SN1124-1AA00-0DA2 double-axis power module are the most common drive modules sharing the same DC bus as the 6SN1146-1BB02-0CA2 — replacing these together eliminates the risk of a secondary failure shortly after the infeed module is restored.

The 6SN1162-0GA00-0AA0 shield connection terminal is a standard accessory in SIMODRIVE 611 cabinets and should be inspected during any infeed module swap. Similarly, the 6SN1111-0AA01-1BA0 line filter protects the infeed stage from mains-borne interference and is often replaced as a preventive measure during planned maintenance windows. For cabinets where the 6SN1161-1AA01-0AA0 monitoring module is still in service, verifying its compatibility with the new infeed module’s firmware revision is recommended before commissioning.

In multi-axis CNC environments, the 6FC5203-0AF02-1AA0 SINUMERIK 840D NCU or equivalent NCU module coordinates axis parameterization across the drive bus. Ensuring the NCU firmware is current before replacing the infeed module prevents parameter mismatch errors during startup. For commissioning and parameter transfer, a SIMODRIVE 611 programming cable (6FX2002-1DC00 series) connected to a laptop running STARTER or the SIMODRIVE 611 start-up tool is the standard field procedure. The 6SN1162-0EA00-0AA0 fan and brake resistor module should also be checked for wear, as it directly supports the thermal management of the infeed module during regenerative braking cycles.

Retrofit Guidance FAQ

Q: Can I reuse existing wiring when replacing the infeed module with the 6SN1146-1BB02-0CA2?
A: Yes. The X9 mains terminal and X181 drive bus connector pinouts are compatible with earlier SIMODRIVE 611 infeed variants. Existing cable looms, line reactors, and input fusing do not need to be modified.

Q: Do I need to modify the NC or PLC program after replacing the infeed module?
A: No. The infeed module does not carry axis-specific parameters. The SINUMERIK NC program and PLC logic remain unchanged. Only the drive bus address and monitoring thresholds may need to be verified in the SIMODRIVE 611 start-up tool after installation.

Q: Is the 6SN1146-1BB02-0CA2 compatible with PROFIBUS-DP-based SINUMERIK systems?
A: Yes. The module operates on the SIMODRIVE digital drive bus, which is independent of the PROFIBUS-DP layer used by the SINUMERIK controller. PROFIBUS configuration on the NCU is unaffected by the infeed module replacement.

Q: Will the module fit in the existing cabinet without mechanical modification?
A: Yes. The 6SN1146-1BB02-0CA2 uses the standard SIMODRIVE 611 booksize form factor. It occupies the same slot width and depth as the modules it replaces, and the existing DIN rail mounting and bus bar connections are directly reusable.

Q: What is the commissioning procedure after installation?
A: After mechanical installation and wiring reconnection, power up the drive system in the standard SIMODRIVE 611 sequence. Use the STARTER software or SIMODRIVE 611 start-up tool to verify the infeed module’s status LEDs, check DC bus voltage, and confirm drive bus communication with downstream power modules. No axis re-parameterization is required for a like-for-like replacement.

Q: Can this module be used during a phased migration to SINUMERIK 828D?
A: Yes. The SIMODRIVE 611 drive hardware, including the 6SN1146-1BB02-0CA2, can continue to operate while the CNC control layer is progressively migrated. This allows production to continue on existing axes while new axes are commissioned on the updated platform.

Warranty Assurance

Every 6SN1146-1BB02-0CA2 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes functional testing to verify DC bus charging behavior, drive bus communication, and auxiliary supply integrity. Units that do not pass our pre-shipment test protocol are not released for sale.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response team is reachable via email and phone, with a target response time of 24 hours for technical inquiries and warranty cases. Replacement units are dispatched from Xiamen with priority shipping to minimize customer downtime.

For procurement teams requiring documentation, we can provide pre-shipment test reports, product datasheets, and export compliance certificates upon request. Bulk orders and long-term supply agreements for SIMODRIVE 611 spare parts are supported — contact our sales team to discuss inventory reservation and scheduled delivery arrangements.

All units are packaged in anti-static protective packaging with foam cushioning to prevent transit damage. Shipping is available worldwide via DHL, FedEx, and UPS, with tracking provided for all orders.
