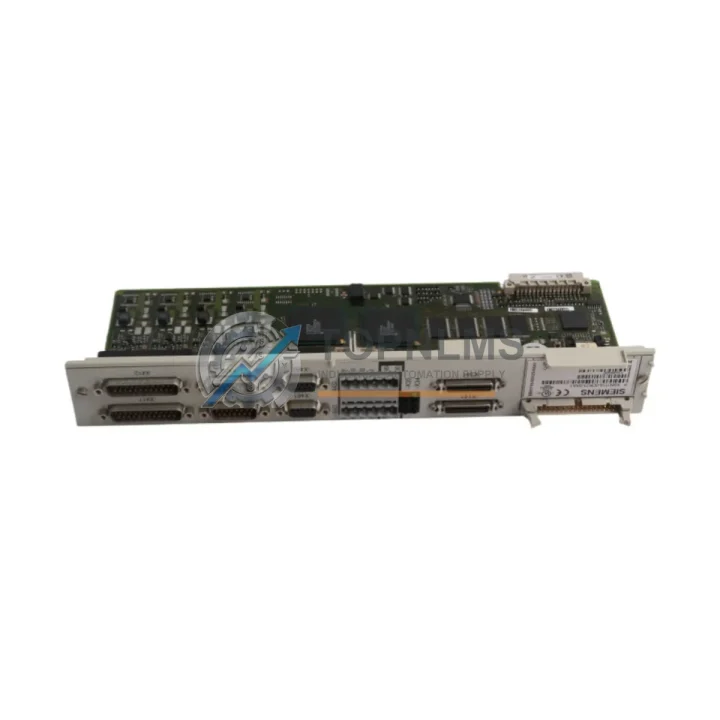

Siemens 6SN1118-0DK23-0AA1 Original Industrial Spare SIMODRIVE 611 Compatible: System Stability and Industrial Spare Parts Maintenance Value

In high-demand manufacturing environments, the reliability of CNC drive systems is non-negotiable. The Siemens 6SN1118-0DK23-0AA1 is a genuine 2-axis drive control module designed for the SIMODRIVE 611 series — one of Siemens’ most widely deployed CNC drive platforms across metalworking, automotive, aerospace, and heavy machinery industries. Sourcing an original, tested replacement for this module is a critical step in any preventive maintenance program or emergency repair scenario.

When a SIMODRIVE 611 drive control module fails, the consequences extend far beyond the module itself. Unplanned downtime on a CNC machining center can cost thousands of dollars per hour. The 6SN1118-0DK23-0AA1 is a direct, plug-compatible replacement that restores full 2-axis drive functionality without requiring firmware reconfiguration or mechanical adaptation — preserving your existing system architecture and minimizing mean time to repair (MTTR).

This module is sourced as an original Siemens spare part, inspected, and dispatched with a 12-month warranty, giving maintenance engineers and procurement teams the confidence to stock it as a critical spare in their control cabinet inventory.

Critical Technical Specs

Preventive Maintenance Strategy

A SIMODRIVE 611 drive system is rarely a standalone component — it operates as part of an integrated control cabinet ecosystem. When scheduling maintenance or responding to a drive fault, experienced maintenance engineers know that replacing only the failed module without inspecting adjacent components is a missed opportunity that often leads to repeat failures within weeks.

When replacing the 6SN1118-0DK23-0AA1 drive control module, the following components in the same control cabinet and electrical circuit should be inspected or proactively replaced as part of the same maintenance window:

• SIMODRIVE 611 Power Supply Module (e.g., 6SN1145 series) — The infeed/regenerative power module feeds the DC bus shared by all drive modules. A degraded power module causes intermittent drive faults that are often misdiagnosed as control module failures. Inspect capacitor condition and check for fault codes on the power module display.
• Encoder Cables and Connectors (e.g., 6FX series encoder cables) — Encoder signal integrity is critical for 2-axis position control. Inspect the 6FX2002 or 6FX5002 encoder cables for insulation wear, connector corrosion, and secure seating. A faulty encoder cable will cause immediate axis faults after module replacement.
• SIMODRIVE 611 Monitoring Module (6SN1113 series) — The monitoring module provides overtemperature and short-circuit protection for the drive group. Verify its status LEDs and check for any stored fault history before commissioning the new drive control module.
• Terminal Blocks and Bus Connectors — The drive rack’s internal bus connectors and external terminal blocks (e.g., Siemens SIMATIC ET200 terminal modules or equivalent) should be cleaned and re-torqued. Loose connections on the DC bus or signal terminals are a leading cause of premature drive module failure.
• SINUMERIK 840D / 810D NCU (Numerical Control Unit) — If the machine uses a SINUMERIK 840D sl or 810D controller, verify that the NCU firmware version is compatible with the replacement module. Check the NCU’s drive configuration parameters (MD30130, MD30240) to confirm axis assignment is intact after module swap.
• Siemens SIMATIC S7-300 or S7-400 PLC I/O Modules — In integrated CNC-PLC architectures, the PLC I/O modules (e.g., SM321 digital input, SM322 digital output) interface with the drive system for enable signals, fault acknowledgment, and safety interlocks. Inspect these modules for blown fuses and verify signal continuity during the maintenance window.
• Fuse Modules and Circuit Breakers (e.g., Siemens 3RV series) — Check all fuse holders and miniature circuit breakers in the drive cabinet. A blown fuse on the 24V control supply is a common root cause of drive control module faults and is easily overlooked during fault diagnosis.
• Signal Isolators and Analog I/O Modules — If the machine uses analog speed or torque references, inspect signal isolators (e.g., Phoenix Contact MINI MCR series or equivalent) for drift or signal noise that could cause axis instability after the drive module is replaced.
• Cooling Fans and Heat Sink Assemblies — SIMODRIVE 611 modules are sensitive to thermal stress. Inspect the drive rack’s internal cooling fans for bearing wear and clean heat sink fins. A failed cooling fan will cause the new module to overheat within hours of operation.
• SIMODRIVE 611 Axis Expansion Modules (6SN1123 series) — If the machine has additional axes sharing the same drive rack, inspect neighboring axis modules for fault indicators. A fault on an adjacent module can mask or trigger faults on the newly replaced 6SN1118-0DK23-0AA1.

Conducting a comprehensive cabinet inspection during a planned maintenance window — rather than a reactive single-module swap — significantly reduces the probability of repeat unplanned downtime and extends the operational life of the entire drive system.

Strategic Replacement Solutions

The Siemens 6SN1118-0DK23-0AA1 is a legacy SIMODRIVE 611 module that has been in service on CNC machines for over two decades. Many facilities operating SINUMERIK 840D or 810D-based machining centers continue to rely on this module because the cost and complexity of a full CNC system upgrade far exceeds the cost of maintaining the existing drive architecture with original spare parts.

Sourcing a genuine 6SN1118-0DK23-0AA1 replacement — rather than an aftermarket substitute — ensures full compatibility with the existing SIMODRIVE 611 drive rack, preserves the original axis tuning parameters stored in the NCU, and eliminates the risk of firmware incompatibility that can arise with non-original modules. This is particularly important in precision machining applications where axis positioning accuracy is tightly controlled.

For facilities managing aging SIMODRIVE 611 installations, a strategic approach to spare parts procurement involves maintaining a minimum stock of one drive control module per critical machine axis. Given the lead times associated with sourcing legacy Siemens modules through standard distribution channels, holding a tested spare on-site reduces emergency repair time from days to hours — a critical advantage in high-throughput production environments.

Our inventory of the 6SN1118-0DK23-0AA1 is sourced from verified supply chains, inspected for functionality, and dispatched with full documentation. Each unit undergoes pre-shipment testing to verify communication bus integrity, axis control output, and encoder interface functionality — ensuring that the module is ready for immediate installation upon arrival.

Support FAQ

Q1: Is the 6SN1118-0DK23-0AA1 compatible with both SINUMERIK 840D and 810D systems?
Yes. The 6SN1118-0DK23-0AA1 is designed for the SIMODRIVE 611 drive rack and is compatible with SINUMERIK 840D, 840D sl, and 810D numerical control systems. Always verify the drive configuration parameters in the NCU after installation to confirm axis assignment and encoder interface settings.

Q2: What is the warranty coverage and what does pre-shipment testing include?
Every 6SN1118-0DK23-0AA1 unit is covered by a 12-month warranty from the date of dispatch. Pre-shipment testing includes verification of the DRIVE-CLiQ or encoder interface, internal bus communication, and output stage integrity. A test report is available upon request.

Q3: How should I manage spare parts inventory for legacy SIMODRIVE 611 systems?
For critical production machines, we recommend maintaining at least one tested spare drive control module per machine. For facilities with multiple SIMODRIVE 611-based machines, a shared pool of 2–3 modules per module type is a cost-effective strategy. Modules should be stored in anti-static packaging in a dry, temperature-controlled environment and inspected annually.

Q4: Can I replace the 6SN1118-0DK23-0AA1 without reconfiguring the CNC system?
In most cases, yes. The 6SN1118-0DK23-0AA1 is a direct plug-in replacement for the same module type within the SIMODRIVE 611 rack. Axis parameters are stored in the NCU, not the drive module, so they are preserved after replacement. However, it is recommended to perform a drive optimization (servo gain adjustment) after replacement to confirm axis performance meets specification.
