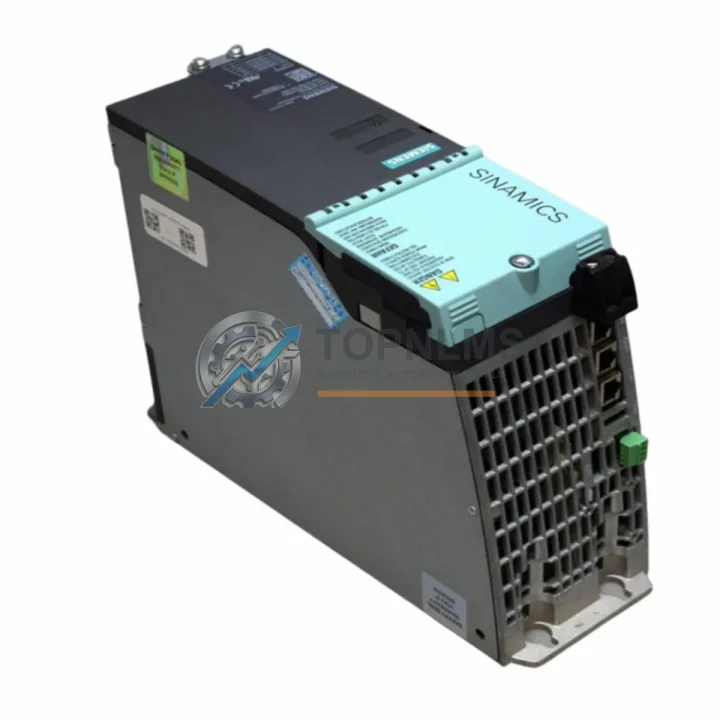

Siemens 6SL3430-6TE21-6AA1 Original Industrial Spare S120 Compatible

Product Overview

Siemens 6SL3430-6TE21-6AA1 Original Industrial Spare S120 Compatible: System Stability and Industrial Spare Parts Maintenance Value

In modern manufacturing and process automation environments, the reliability of drive systems is non-negotiable. The Siemens 6SL3430-6TE21-6AA1 Smart Line Module is a critical active infeed component within the SINAMICS S120 drive system architecture. Designed to provide regulated DC bus voltage to connected Motor Modules, this unit ensures stable, regenerative power supply for multi-axis drive configurations across demanding industrial applications — from automotive assembly lines to heavy-duty material handling systems.

When this module fails or degrades, the entire drive cabinet can be rendered inoperative, triggering unplanned downtime that cascades across production. Sourcing a verified original replacement — tested, certified, and ready to install — is the fastest path back to full operation. TOPNLMS stocks the 6SL3430-6TE21-6AA1 as an original spare, pre-tested before shipment, with a 12-month warranty and worldwide logistics support.

Critical Technical Specs Table

Preventive Maintenance Strategy

A Smart Line Module does not operate in isolation. It sits at the heart of a coordinated drive cabinet ecosystem, and its health is directly tied to the condition of surrounding components. When scheduling a planned maintenance window or responding to an unplanned shutdown involving the 6SL3430-6TE21-6AA1, experienced maintenance engineers know to inspect the entire infeed and distribution chain simultaneously.

Begin with the DRIVE-CLiQ communication cables connecting the Smart Line Module to the Control Unit (typically a CU320-2 DP or CU320-2 PN). Degraded or intermittently connected DRIVE-CLiQ cables are a leading cause of false fault codes and erratic module behavior. Replace any cable showing physical wear or connector corrosion.

Next, inspect the 24 V DC power supply module (such as the Siemens SITOP PSU series) that feeds the control electronics of the S120 cabinet. An unstable 24 V rail can cause the Smart Line Module to report undervoltage faults even when the AC infeed is healthy. Verify output voltage under load and replace if ripple exceeds specification.

The S120 Booksize Motor Modules downstream of this Smart Line Module — for example the 6SL3120-1TE21-0AA3 or 6SL3120-1TE23-0AA3 — should be inspected for DC bus capacitor aging, IGBT thermal performance, and fan operation. A failing Motor Module can back-feed instability onto the DC bus, stressing the Smart Line Module and shortening its service life.

Check the line reactor (e.g., 6SL3000-0BE21-6DA0) installed upstream of the Smart Line Module. Line reactors protect the module from mains voltage spikes and harmonic distortion. A saturated or physically damaged reactor will reduce the module’s effective input impedance protection and should be replaced as a paired item during any Smart Line Module swap.

The braking resistor module or Braking Module (if installed in the cabinet, such as the 6SL3100-1BE21-3AA0) should also be tested for resistor continuity and thermal fuse integrity. During regenerative braking cycles, a failed braking circuit forces excess energy back onto the DC bus, which the Smart Line Module must absorb — accelerating wear.

Finally, inspect the terminal block assemblies and busbar connections within the drive cabinet. Loose AC input terminals, corroded PE connections, or undertorqued DC bus busbars are common root causes of intermittent faults that are misdiagnosed as module failures. A torque check of all power terminals — including those on the Cabinet Module or Line Connection Module — should be part of every scheduled inspection cycle.

For facilities running extended S120 installations, consider maintaining a cabinet-level spare kit that includes: one Smart Line Module (6SL3430-6TE21-6AA1), one set of DRIVE-CLiQ cables, one 24 V SITOP power supply, and at least one Motor Module matched to your most critical axis. This kit approach minimizes mean time to repair (MTTR) and eliminates the multi-week lead times associated with emergency procurement.

Strategic Replacement Solutions

The 6SL3430-6TE21-6AA1 is a direct replacement for aging or failed Smart Line Modules in existing SINAMICS S120 Booksize installations. Because it maintains full compatibility with the original DRIVE-CLiQ topology and CU320-2 firmware, no re-parameterization of the Control Unit is required in most cases — the replacement module is recognized automatically upon power-up, dramatically reducing commissioning time during emergency maintenance.

For facilities still operating legacy SIMODRIVE 611 or early-generation SINAMICS S120 Chassis systems, the S120 Booksize architecture represented by this module offers a validated migration path. Upgrading the infeed section to a Smart Line Module with active front-end technology reduces harmonic distortion on the plant mains, improves power factor, and enables energy recovery during deceleration — all without replacing the downstream motor or mechanical drivetrain.

TOPNLMS sources the 6SL3430-6TE21-6AA1 as an original Siemens component. Each unit undergoes functional testing prior to shipment and is dispatched with full traceability documentation. Standard lead time is 3–7 business days for in-stock units, with express options available for critical production environments. All units are covered by a 12-month warranty from the date of invoice.

Support FAQ

Q1: Is the 6SL3430-6TE21-6AA1 a direct drop-in replacement for my existing Smart Line Module?
Yes. The 6SL3430-6TE21-6AA1 is a direct replacement for the same part number in SINAMICS S120 Booksize drive cabinets. It uses the same DRIVE-CLiQ interface and DC bus connector layout. In most installations, the CU320-2 Control Unit will auto-identify the replacement module without requiring manual parameter changes. Always verify firmware compatibility with your existing Control Unit version before installation.

Q2: How do I verify compatibility with my existing S120 system before ordering?
Confirm your Control Unit model (CU320-2 DP or CU320-2 PN), the existing Smart Line Module order number from the cabinet nameplate, and the rated input voltage of your mains supply (380–480 V AC). If your system uses a Line Connection Module or Cabinet Module upstream, verify that the rated current of the 6SL3430-6TE21-6AA1 (16 A input) matches your load profile. Contact TOPNLMS at [email protected] with your cabinet layout for pre-order compatibility confirmation.

Q3: What pre-shipment testing does TOPNLMS perform on this module?
Every 6SL3430-6TE21-6AA1 unit is functionally tested on a dedicated S120 test bench before dispatch. Testing includes DC bus voltage regulation verification, DRIVE-CLiQ communication handshake confirmation, and thermal performance check under partial load. Units that do not pass all test criteria are quarantined and not shipped. A test report summary is available upon request.

Q4: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or operation outside specified environmental parameters. To initiate a warranty claim, contact [email protected] with your invoice number, a description of the fault, and any available fault codes from the drive system. TOPNLMS will arrange return logistics and provide a replacement or repair within the agreed service window.
