Siemens 6SL3244-0BB12-1PA1 Original Industrial Spare G120 Compatible

Product Overview

Siemens 6SL3244-0BB12-1PA1 Original Industrial Spare G120 Compatible: System Stability and Industrial Spare Maintenance Value

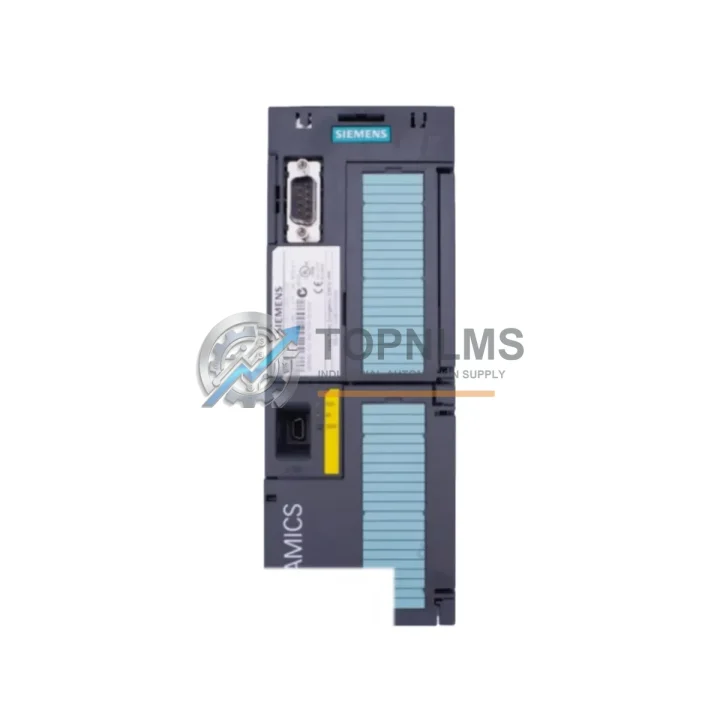

The Siemens 6SL3244-0BB12-1PA1 is the CU240E-2DP PROFIBUS Control Unit designed for the SINAMICS G120 modular drive platform — one of Siemens’ most widely deployed variable frequency drive (VFD) series in global industrial automation. This control unit governs motor speed, torque, and process feedback across a broad range of applications including conveyor systems, pumps, compressors, fans, and precision manufacturing lines. Sourced directly from authorized supply channels, this unit is an original Siemens spare part, not a clone or aftermarket substitute, ensuring full firmware compatibility and long-term system reliability.

For maintenance engineers and procurement teams managing aging SINAMICS G120 installations, securing a verified replacement CU240E-2DP with PROFIBUS DP communication is a critical step in any preventive maintenance or emergency repair strategy. The 6SL3244-0BB12-1PA1 slots directly into existing G120 Power Module frames — including the PM240, PM250, and PM260 series — without requiring hardware reconfiguration, making it the fastest path to restoring drive functionality after a control unit failure.

Critical Technical Specs

Preventive Maintenance Strategy

A control unit failure in a SINAMICS G120 drive rarely occurs in isolation. In most industrial environments, the CU240E-2DP operates within a tightly integrated electrical cabinet where multiple components share the same power rail, communication bus, and thermal environment. When replacing the 6SL3244-0BB12-1PA1, experienced maintenance teams use the opportunity to inspect and — where necessary — pre-stock adjacent components that are subject to similar wear cycles.

The PM240 Power Module paired with this control unit should be inspected for DC bus capacitor aging, particularly in installations exceeding five years. Simultaneously, the 24V DC SITOP power supply feeding the control unit logic circuit is a common single point of failure; a spare unit on the shelf can prevent hours of unplanned downtime. The PROFIBUS DP communication cable and connectors (such as Siemens 6ES7972-0BA52-0XA0 bus connectors) should be checked for contact oxidation and cable sheath integrity, especially in high-vibration or high-humidity environments.

Within the same control cabinet, the 6SL3262-1AA00-0BA0 BOP-2 Basic Operator Panel is frequently used for local parameter access and fault diagnostics — having a spare panel simplifies on-site commissioning after a CU swap. The terminal block and signal wiring connected to the CU’s DI/DO/AI/AO ports should be re-torqued and inspected for insulation breakdown during any scheduled maintenance window.

For plants running multiple G120 drives on a shared PROFIBUS segment, it is advisable to audit the PROFIBUS repeater or DP/DP coupler at the same time, as bus topology faults can cause cascading drive faults that mimic control unit failures. If the installation includes a Siemens S7-300 or S7-1500 PLC as the PROFIBUS master, verify the GSD file version and parameter assignment in the hardware configuration to ensure seamless re-integration after the CU replacement.

Plants with legacy G120 installations should also consider pre-stocking the 6SL3255-0AA00-4CA1 Memory Card, which stores drive parameters externally — enabling rapid parameter restore after a control unit swap without requiring a laptop or STARTER software on-site. Rounding out a comprehensive G120 spare kit, the 6SL3060-4AX00-0AA0 signal cable connecting the CU to the PM is a low-cost, high-impact item that is often overlooked until it causes a fault.

Strategic Replacement Solutions

The 6SL3244-0BB12-1PA1 is a direct replacement for earlier CU240E-2DP variants used in SINAMICS G120 installations commissioned from 2010 onward. Unlike third-party or refurbished alternatives, this original Siemens unit ships with factory firmware pre-loaded and is fully compatible with Siemens STARTER, SCOUT TIA, and Startdrive commissioning tools — eliminating the risk of firmware mismatch or parameter incompatibility that can extend downtime by days.

For plants transitioning from older CU240B-2 or CU240S-DP control units, the CU240E-2DP offers expanded I/O, integrated STO safety function, and enhanced PROFIBUS DP communication — all within the same mechanical footprint. This makes the 6SL3244-0BB12-1PA1 a viable upgrade path for aging drive installations without requiring a full drive replacement or cabinet redesign.

Procurement teams managing multi-site operations benefit from standardizing on the CU240E-2DP platform across all G120 installations. A single spare unit covers a wide range of power module frame sizes (FSA through FSF), reducing the number of unique SKUs in the maintenance inventory while maximizing coverage. Combined with a documented parameter backup strategy using the G120 memory card, this approach can reduce mean time to repair (MTTR) for drive-related stoppages to under 30 minutes.

Support FAQ

Q1: Is the 6SL3244-0BB12-1PA1 compatible with all SINAMICS G120 Power Modules?
The CU240E-2DP is compatible with G120 Power Modules in frame sizes FSA through FSF, including the PM240, PM250, and PM260 series. It connects via the standard G120 signal interface and requires no mechanical adaptation. Always verify the firmware version of the power module matches the supported range for this control unit before installation.

Q2: What is included in the 12-month warranty?
All units supplied by TOPNLMS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit is tested for basic electrical integrity before dispatch. Warranty claims are processed via email with fault description and photographic evidence; replacement or refund is arranged within agreed lead times.

Q3: Can I restore my existing drive parameters after replacing the control unit?
Yes. If your existing installation uses a G120 Memory Card (6SL3255-0AA00-4CA1), parameters are stored externally and transfer automatically to the new CU on first power-up. Alternatively, parameters can be backed up and restored via Siemens STARTER or Startdrive software over PROFIBUS or USB. TOPNLMS recommends backing up parameters before any control unit replacement.

Q4: How quickly can the unit be shipped, and what documentation is provided?
In-stock units are dispatched within 1–3 business days. International shipments are supported with commercial invoice, packing list, and country-of-origin documentation (Germany) for customs clearance. Express courier options are available on request. Contact us at [email protected] or +86 18359293191 for lead time confirmation and freight quotation.
