Siemens 6SL3224-0BE37-5AA0 Original Industrial Spare S120

Product Overview

Siemens 6SL3224-0BE37-5AA0 Original Industrial Spare S120: System Stability and Industrial Spare Maintenance Value

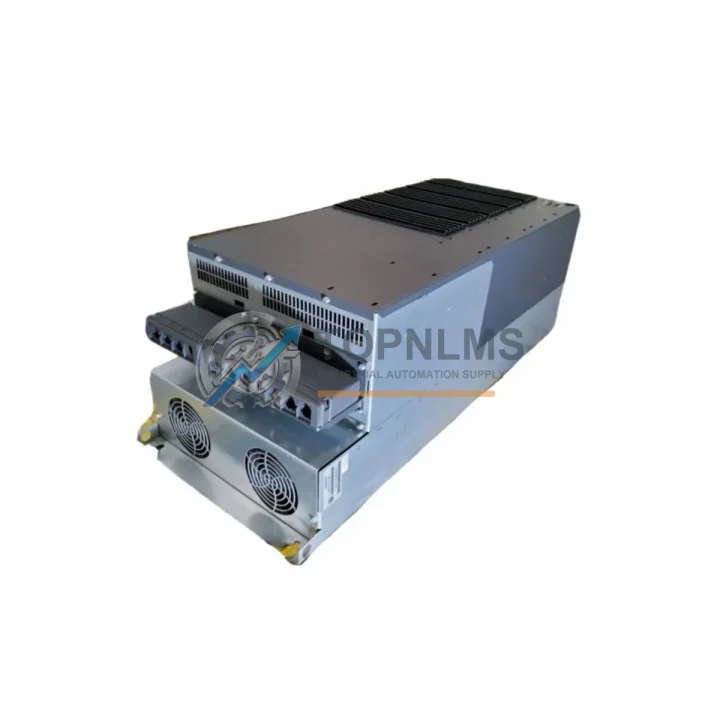

The Siemens 6SL3224-0BE37-5AA0 is an original Active Line Module rated at 75 kW, designed for the SINAMICS S120 Booksize drive system. As a core power infeed component, it provides regulated DC bus voltage to connected Motor Modules, enabling precise multi-axis motion control across demanding industrial environments including automotive assembly, paper mills, printing presses, material handling systems, and heavy-duty CNC machining centers.

In high-availability production environments, the Active Line Module is a single point of failure for the entire drive cabinet. Holding a verified original spare — tested, serialized, and ready for immediate swap — is the most effective strategy to minimize unplanned downtime and protect production continuity. The 6SL3224-0BE37-5AA0 is a direct, plug-compatible replacement for aging or failed units within the S120 Booksize architecture, requiring no firmware reconfiguration when the drive topology is preserved.

Critical Technical Specs

Preventive Maintenance Strategy

When scheduling a planned shutdown or responding to an unplanned fault on an S120 Booksize drive cabinet, the Active Line Module should never be inspected in isolation. The 6SL3224-0BE37-5AA0 operates as part of a tightly integrated power and control architecture, and degradation in adjacent components frequently accelerates ALM failure or masks the true root cause of a fault.

During any cabinet inspection involving this module, maintenance engineers should simultaneously verify the condition of the SINAMICS S120 Line Reactor (e.g., 6SL3000-0BE32-5AA0 series) and the associated Line Filter (6SL3000-0BE21-6DA0 or equivalent), as harmonic distortion and EMC compliance depend on these upstream components remaining within specification. A degraded line reactor will increase THD on the DC bus and shorten the service life of the ALM’s IGBT bridge.

The DRIVE-CLiQ communication cable connecting the ALM to the Control Unit (typically a CU320-2 DP or CU320-2 PN) should be inspected for connector wear, shield continuity, and correct seating. DRIVE-CLiQ faults are a common misdiagnosis when the actual failure is a loose or corroded cable termination rather than a module fault. Keeping a spare DRIVE-CLiQ cable (6SL3060-4Axxxx series) in the maintenance kit is strongly recommended.

Downstream Motor Modules — such as the 6SL3120-1TE23-0AA3 (Single Motor Module) or 6SL3120-2TE21-8AA3 (Double Motor Module) — share the DC bus supplied by the 6SL3224-0BE37-5AA0. If the ALM trips on overcurrent or DC bus overvoltage, the fault may originate in a Motor Module with a failing brake chopper or a shorted IGBT. Inspecting Motor Module status via STARTER or TIA Portal diagnostics before replacing the ALM prevents unnecessary part expenditure.

The Braking Module (6SL3100-1BE31-0AA0 or similar) and its associated braking resistor should be checked for thermal discoloration and resistance drift during any ALM-related maintenance event. An oversized regenerative load that exceeds the braking module’s capacity will back-feed into the DC bus and trigger ALM protective shutdowns.

Finally, the 24 V DC power supply module (SITOP PSU series or equivalent) feeding the Control Unit and I/O infrastructure should be load-tested. Voltage sag on the 24 V rail during motor acceleration is a known cause of spurious CU320 resets that are incorrectly attributed to ALM instability. Pairing the 6SL3224-0BE37-5AA0 replacement with a verified 24 V supply and a fresh set of terminal block connectors on the X1/X2 power terminals ensures a clean baseline for post-maintenance commissioning.

Strategic Replacement Solutions

The 6SL3224-0BE37-5AA0 is a direct replacement for earlier S120 Booksize Active Line Modules of equivalent power rating. Facilities running legacy SINAMICS S120 systems commissioned before 2015 frequently encounter end-of-life ALM units where Siemens standard availability has shifted to extended lead times. Sourcing a verified original spare through an authorized industrial parts distributor eliminates the 8–16 week OEM procurement delay that can paralyze a production line.

Unlike a full drive cabinet replacement — which requires new engineering, cabinet fabrication, cable rerouting, and PLC program adaptation — a like-for-like ALM swap preserves the existing S120 topology, motor parameterization, and safety function configuration. Maintenance personnel familiar with STARTER or TIA Portal V16+ can complete a module exchange and recommission the axis within a single shift, provided the replacement unit is pre-tested and serialized correctly.

For facilities managing multiple S120 Booksize cabinets across a plant floor, a strategic inventory of one ALM per power tier (37 kW, 55 kW, 75 kW, 110 kW) provides coverage for the most statistically probable failure scenarios without excessive capital commitment. The 6SL3224-0BE37-5AA0 at 75 kW is typically the highest-demand tier in mixed-power S120 installations and warrants priority stocking.

All units supplied by TOPNLMS are tested prior to dispatch, shipped with protective packaging appropriate for sensitive power electronics, and covered by a 12-month warranty from the date of delivery. Expedited shipping options are available for emergency breakdown scenarios.

Support FAQ

Q1: Is the 6SL3224-0BE37-5AA0 a direct plug-in replacement for my existing S120 Booksize ALM?
Yes. The 6SL3224-0BE37-5AA0 is mechanically and electrically compatible with the S120 Booksize cabinet format. Provided your existing drive topology, DRIVE-CLiQ wiring, and Control Unit firmware are intact, the replacement module will be recognized automatically on power-up without requiring a full recommissioning cycle. Parameter upload from the CU memory card is recommended as a precaution.

Q2: How is the unit tested before shipment?
Each unit undergoes functional verification including DC bus output voltage check, DRIVE-CLiQ interface handshake test, and thermal cycling inspection before dispatch. Units are serialized and the test record is retained. A copy of the test report can be provided upon request for quality documentation purposes.

Q3: What does the 12-month warranty cover?
The warranty covers manufacturing defects and functional failure under normal operating conditions for 12 months from the delivery date. It does not cover damage resulting from incorrect installation, overvoltage events beyond rated input tolerance, or physical damage in transit. Warranty claims are processed within 5 business days of fault confirmation.

Q4: Can I stock this module as a long-term spare for an aging S120 system?
Absolutely. Long-term spare stocking is one of the most cost-effective strategies for extending the operational life of legacy S120 Booksize installations. The 6SL3224-0BE37-5AA0 is stored in anti-static, climate-controlled packaging and retains full functionality for multi-year storage when kept within recommended environmental conditions (15–35 °C, <75% RH, non-condensing). Contact us for volume pricing on multi-unit spare inventory orders.
