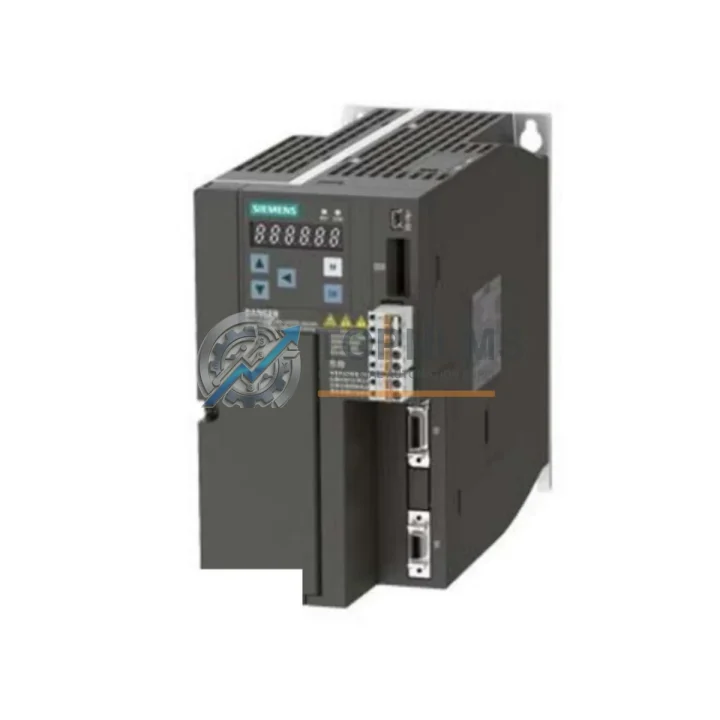

Siemens 6SL3210-5FE11-5UF0 Original Industrial Spare S210 Compatible

Product Overview

Siemens 6SL3210-5FE11-5UF0 Original Industrial Spare S210 Compatible: Ensuring System Stability in Servo-Driven Production Lines

The Siemens 6SL3210-5FE11-5UF0 is a single-axis servo drive module from the SINAMICS S210 series, engineered for high-precision motion control in demanding industrial environments. As an original spare part sourced directly from the Siemens supply chain, this module delivers the exact electrical characteristics, firmware compatibility, and mechanical form factor required for seamless drop-in replacement in existing S210 servo axis configurations.

In modern manufacturing facilities — whether automotive assembly, packaging machinery, CNC machining centers, or semiconductor handling equipment — servo drive availability is a direct determinant of line uptime. A failed or degraded drive module can halt an entire production cell within seconds. Stocking the 6SL3210-5FE11-5UF0 as a certified spare ensures that maintenance teams can execute rapid, validated replacements without waiting on lead times that can stretch from days to weeks for non-stocked components.

This module is rated for a 1.5 kW continuous output power at 1-phase 200–240 V AC input, making it well-suited for compact servo axis applications such as rotary indexing tables, conveyor positioning drives, robotic joint actuators, and precision feed axes. Its integrated safety functions — including STO (Safe Torque Off) — comply with IEC 62061 and EN ISO 13849-1, supporting machine safety architectures without additional external safety relays in many configurations.

Critical Technical Specs

Preventive Maintenance Strategy

Replacing a servo drive module in isolation rarely addresses the full scope of a maintenance event. When a 6SL3210-5FE11-5UF0 is flagged for replacement — whether due to fault codes, thermal degradation, or scheduled lifecycle rotation — experienced maintenance engineers treat the intervention as an opportunity to audit the entire servo axis assembly and its surrounding control cabinet infrastructure.

Begin with the DRIVE-CLiQ cable connecting the drive to the motor encoder. These cables are subject to continuous flexing in dynamic axis applications and are a common source of intermittent encoder faults that are frequently misdiagnosed as drive failures. Inspect the cable shielding, connector seating, and bend radius compliance. A degraded DRIVE-CLiQ cable can cause the replacement drive to generate the same fault codes as the original unit, leading to unnecessary repeat replacements.

Next, verify the condition of the 24 V DC control power supply module feeding the S210 drive’s logic and safety circuits. Siemens SITOP PSU series power supplies are commonly deployed in S210 control cabinets; a supply operating at the edge of its voltage tolerance can cause erratic drive behavior, STO triggering, or communication dropouts that mimic drive hardware faults. Replacing the drive without confirming supply voltage stability under load is a frequent source of repeat failures.

The SINAMICS S210 Control Unit (if deployed in a distributed configuration) and its associated CompactFlash parameter card should be inspected for firmware version compatibility with the replacement drive module. Mismatched firmware between the control unit and the power module is a known commissioning risk after spare part replacement. Ensure the parameter backup is current before swapping hardware.

During cabinet inspection, evaluate the line filter module and braking resistor (if installed externally). The S210 series supports optional external braking resistors for high-inertia or frequent-cycle applications; a degraded resistor can cause DC link overvoltage faults that stress the replacement drive immediately after installation. Similarly, inspect the input fuse module or circuit breaker protecting the drive’s AC input — a fuse operating at marginal capacity after a drive fault event may not provide reliable protection for the new module.

For facilities running multiple S210 axes in a multi-axis cabinet, this maintenance window is also the appropriate time to inspect terminal block assemblies and signal wiring on adjacent axes. Loose terminals on shared 24 V rails or PE (protective earth) conductors can introduce ground loops or voltage fluctuations that affect all drives in the cabinet. A signal isolator module on analog reference inputs is worth verifying for calibration drift, particularly in older installations where analog speed or torque references are still in use.

Finally, if the facility operates SIMATIC S7-1500 or S7-1200 PLC controllers as the motion coordinator for this servo axis, confirm that the PLC’s PROFINET or DRIVE-CLiQ topology is correctly mapped after the drive replacement. A drive swap that changes the device name or IP assignment in the network configuration can cause the PLC to fail to establish communication with the new module, resulting in a startup fault that appears unrelated to the hardware replacement.

Proactive spare parts planning for S210 servo systems should include: DRIVE-CLiQ cables (various lengths), 24 V SITOP power supply modules, CompactFlash parameter cards, input fuse modules, braking resistors (where applicable), and at least one additional 6SL3210-5FE11-5UF0 drive module per axis type deployed in the facility. This inventory posture reduces mean time to repair (MTTR) for servo axis faults from hours to minutes.

Strategic Replacement Solutions

The 6SL3210-5FE11-5UF0 is a direct replacement for any S210 single-axis drive module of equivalent power rating that has reached end-of-life, suffered physical damage, or is exhibiting fault patterns consistent with internal component degradation (capacitor aging, IGBT thermal fatigue, or encoder interface failure).

For facilities transitioning from older SINAMICS S120 booksize configurations to the more compact S210 platform, the 6SL3210-5FE11-5UF0 offers a significant reduction in cabinet footprint while maintaining full PROFINET IRT and DRIVE-CLiQ integration. The S210’s integrated single-cable motor connection technology (combining power and encoder in one cable when used with compatible SIMOTICS S-1FK2 motors) further simplifies wiring during retrofit projects, reducing installation time and potential wiring error points.

For legacy systems where the original drive has been discontinued or is on extended lead time, the 6SL3210-5FE11-5UF0 provides a validated, in-production replacement that does not require PLC program modifications when the axis parameters are correctly restored from backup. This is a critical advantage in facilities where PLC program change management is subject to strict validation and approval workflows — the hardware replacement can be executed as a like-for-like spare substitution rather than a system modification requiring re-validation.

All units supplied by TOPNLMS are tested prior to shipment, shipped with protective packaging appropriate for sensitive power electronics, and covered by a 12-month warranty from the date of delivery. Expedited shipping options are available for urgent maintenance requirements.

Support FAQ

Q1: Is the 6SL3210-5FE11-5UF0 a genuine original Siemens spare part?
Yes. TOPNLMS supplies original Siemens SINAMICS S210 modules sourced through verified industrial supply channels. Each unit is inspected and function-tested before shipment. A 12-month warranty is provided from the date of delivery.

Q2: How do I verify compatibility with my existing S210 servo axis before ordering?
Confirm the input voltage (1-phase 200–240 V AC), rated output power (1.5 kW), and motor interface (DRIVE-CLiQ + SIMOTICS S-1FK2 compatible). Cross-reference the existing drive’s nameplate data with the 6SL3210-5FE11-5UF0 datasheet. If your system uses a different power rating or 3-phase input, contact us with your existing part number for a compatibility assessment.

Q3: What is included in the pre-shipment testing process?
Each unit undergoes electrical continuity verification, DC link capacitor charge testing, and interface port inspection prior to packaging. Units that do not pass inspection are not shipped. Test records are available upon request for quality-critical procurement processes.

Q4: What is the recommended spare inventory quantity for a facility running multiple S210 axes?
For facilities with 5 or fewer S210 axes of this power rating, a minimum of 1 spare unit is recommended. For facilities with 6–20 axes, 2 spare units provide adequate coverage for simultaneous or rapid-succession failures. For larger installations or those with high-cycle, high-thermal-stress duty cycles, a 10–15% spare ratio per axis type is the industry standard for servo drive inventory planning.
