Siemens 6SL3210-5BE17-5UV0 Original Industrial Spare SINAMICS V20: System Stability and Maintenance Value

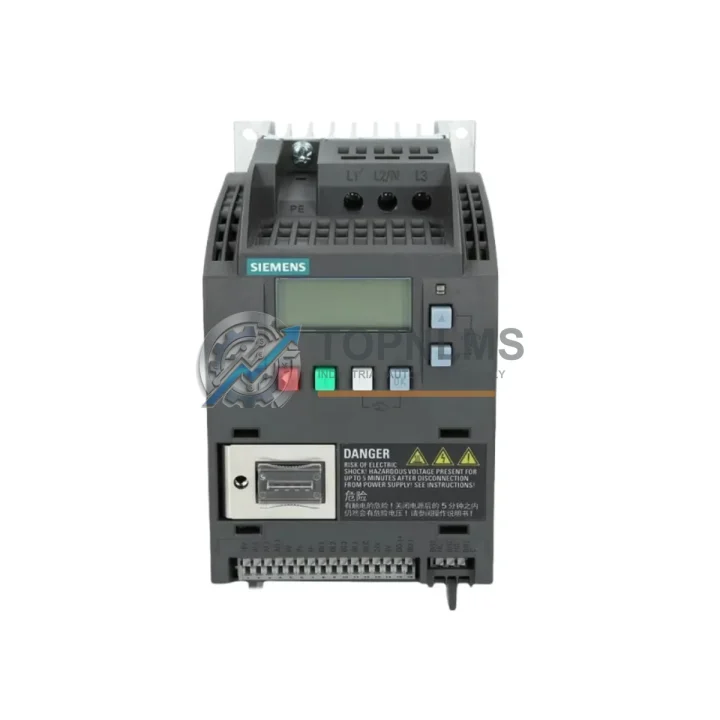

The Siemens 6SL3210-5BE17-5UV0 is a genuine SINAMICS V20 compact inverter rated at 0.75kW with a 200V single-phase input, engineered for demanding industrial environments where uptime is non-negotiable. As a direct original spare part sourced from Siemens’ manufacturing chain, this unit delivers the precise electrical characteristics, firmware compatibility, and mechanical form factor required for seamless drop-in replacement in existing SINAMICS V20 installations. Whether you are managing a conveyor system, pump station, fan array, or compressor drive in a manufacturing plant, this inverter is a critical component in maintaining continuous production and avoiding costly unplanned downtime.

In modern industrial facilities, variable frequency drives like the 6SL3210-5BE17-5UV0 are the backbone of motor control systems. Their failure — often sudden and without warning — can halt entire production lines. Maintaining a verified original spare on the shelf is not a luxury; it is a fundamental element of any responsible maintenance strategy. With this unit, your maintenance team can execute a field replacement in under two hours, restoring full motor control without reconfiguration or parameter re-entry when the drive is pre-programmed to match the outgoing unit.

Critical Technical Specs

Preventive Maintenance Strategy

When a SINAMICS V20 drive such as the 6SL3210-5BE17-5UV0 is flagged for replacement during a scheduled shutdown or emergency repair, experienced maintenance engineers know that the drive itself is rarely the only component that warrants attention. A thorough inspection of the surrounding electrical circuit and control cabinet is essential to prevent repeat failures and maximize the return on each maintenance intervention.

Begin by inspecting the input power wiring and terminal connections feeding the inverter. Loose or corroded terminals at the L1/L2 input are a common root cause of drive faults and premature failure. At the same time, verify the integrity of the motor output cables connecting the drive to the motor terminals — insulation breakdown on U/V/W leads can cause overcurrent trips that are often misdiagnosed as drive failures. If the motor cable run exceeds 15 meters, confirm that an output reactor or dV/dt filter is installed to protect the drive’s IGBT output stage.

The 24V DC control power supply feeding the drive’s digital inputs and relay outputs should be tested under load. A degraded SITOP PSU100S or equivalent 24V power supply module can cause erratic drive behavior, spurious fault codes, and communication dropouts on the USS/Modbus link. Replacing a marginal power supply during the same maintenance window as the drive is a cost-effective decision that eliminates a future call-out.

Check the BOP (Basic Operator Panel) or IOP (Intelligent Operator Panel) connected to the drive. These operator panels store parameter sets and provide local control capability. If the panel shows display anomalies or fails to communicate, it should be replaced alongside the drive to ensure parameter upload and commissioning can proceed without delay. A spare BOP-2 panel is a low-cost insurance item for any SINAMICS V20 installation.

Inspect the control terminal block and signal wiring connected to the drive’s DI (digital input) and AO (analog output) terminals. Verify that the 0–10V or 4–20mA speed reference signal from the PLC or process controller is clean and within specification. Signal noise on the analog input — often introduced by a failing signal isolator or a broken cable shield — can cause unstable speed control and nuisance trips. A DIN-rail mounted signal isolator or analog input filter module is worth stocking alongside the drive spare.

For facilities running SINAMICS V20 drives in multi-drive panels, also inspect the shared DC bus connections, braking resistors, and any installed EMC line filters. The Siemens 6SL3201-0BE17-5AA0 line filter, designed for the FSA frame, should be checked for signs of overheating or capacitor degradation. Similarly, if a braking resistor is installed for applications with regenerative loads such as hoists or centrifuges, verify its resistance value and thermal condition before commissioning the replacement drive.

Finally, review the fuse protection upstream of the drive. Semiconductor fuses or circuit breakers rated for the drive’s input current should be tested or replaced as part of the maintenance cycle. A 3NA3803 or equivalent gG-type fuse in the correct amperage rating ensures the drive is protected against upstream fault currents without nuisance blowing during normal operation.

Strategic Replacement Solutions

The 6SL3210-5BE17-5UV0 is a direct replacement for earlier SINAMICS V20 FSA-frame units that may have reached end-of-service life or been discontinued in your facility’s spare parts catalog. Because the SINAMICS V20 platform has maintained consistent parameter structure and terminal layout across production batches, a new 6SL3210-5BE17-5UV0 can be installed in place of a failed unit with minimal reconfiguration — provided the parameter set has been backed up to a BOP panel or uploaded to the Startdrive commissioning software prior to the failure.

For facilities managing aging automation systems, the SINAMICS V20 platform offers a clear migration path from older Micromaster 420 (6SE6420 series) installations. The 6SL3210-5BE17-5UV0 can replace a 6SE6420-2UD17-5AA1 in many applications with appropriate terminal adapter wiring, preserving the existing motor, cabling, and control architecture while gaining the benefits of the V20’s improved energy efficiency, built-in EMC filter options, and extended diagnostic capability.

Stocking a verified original 6SL3210-5BE17-5UV0 as a critical spare reduces mean time to repair (MTTR) from days — the typical lead time for emergency procurement — to hours. For production environments where each hour of downtime carries significant financial impact, this inventory investment pays for itself on the first emergency replacement. We recommend maintaining at least one unit per drive type installed in your facility, with a review cycle aligned to your annual maintenance budget.

Support FAQ

Q1: Is the 6SL3210-5BE17-5UV0 a genuine original Siemens part?
Yes. All units supplied by TOPNLMS are original Siemens-manufactured components sourced through verified industrial supply channels. Each unit is inspected and tested prior to dispatch, and comes with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Q2: Can this drive replace my existing SINAMICS V20 unit without parameter re-entry?
Yes, provided you have a saved parameter backup. The SINAMICS V20 BOP-2 panel or Startdrive software can upload a saved parameter file to the replacement drive in minutes. If no backup exists, the drive can be recommissioned using the Quick Commissioning wizard, which typically takes 15–30 minutes for standard pump or fan applications.

Q3: What testing is performed before shipment?
Each unit undergoes functional verification including power-on self-test, output voltage symmetry check, and communication port validation before packaging. Units are shipped in original or equivalent anti-static protective packaging with all factory accessories included.

Q4: What is the warranty coverage and claim process?
TOPNLMS provides a 12-month warranty from the date of delivery. Warranty claims are handled directly by our technical team. In the event of a confirmed manufacturing defect, we offer priority replacement dispatch to minimize your downtime. Contact us at [email protected] or +86 18359293191 to initiate a claim.
