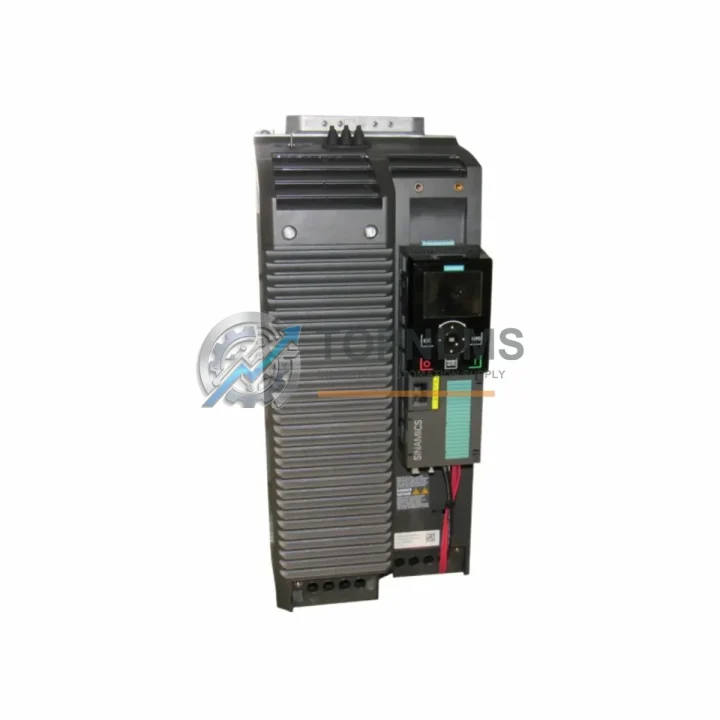

Siemens 6SL3210-1KE15-8UF2 Replacement for SINAMICS S120: Seamless Migration & Upgrade Solution

The Siemens 6SL3210-1KE15-8UF2 is a 2.2 kW Single Motor Module within the SINAMICS S120 booksize drive system — one of Siemens’ most widely deployed servo and vector drive platforms in industrial automation. As legacy S120 configurations age and original modules reach end-of-service life, facilities engineers and procurement teams face the challenge of sourcing verified replacement units that maintain full compatibility with existing wiring harnesses, DC link bus bars, drive CLiQ topology, and TIA Portal / STARTER commissioning environments.

TOPNLMS supplies the 6SL3210-1KE15-8UF2 as a direct drop-in replacement module, tested and verified against Siemens factory specifications. Whether you are replacing a failed unit in a running production line, building a spare-parts buffer for a multi-axis S120 cabinet, or executing a phased modernization of an older SINAMICS S120 booksize rack, this module ships ready for installation with no firmware pre-loading required when used with a compatible CU320-2 DP or CU320-2 PN Control Unit.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to or around the 6SL3210-1KE15-8UF2 rarely involves a single component swap. In practice, field engineers replacing a failed S120 Single Motor Module will also audit the surrounding drive train to ensure system-level compatibility and minimize future unplanned downtime.

The 6SL3210-1KE15-8UF2 operates within a shared DC bus architecture supplied by a 6SL3130-6AE21-0AB1 Smart Line Module or an Active Line Module such as the 6SL3130-7TE21-6AA3. Verifying that the Line Module’s rated output current covers the aggregate demand of all connected Single Motor Modules — including this 2.2 kW unit — is a mandatory pre-commissioning step. If the existing Line Module is also approaching end-of-life, sourcing a replacement simultaneously reduces the risk of a second emergency shutdown.

The DRIVE-CLiQ daisy-chain connecting this module to the Control Unit relies on standard DRIVE-CLiQ cables (6SL3060-4Axxx-0AA0 series). Damaged or aged cables are a common root cause of intermittent F07900 faults. Replacing the cable alongside the motor module eliminates this variable during post-installation commissioning. Similarly, the 6SL3162-2AA00-0AA0 Shield Connection Kit ensures proper EMC grounding when the module is reinstalled in a booksize cabinet.

On the control side, the CU320-2 PN Control Unit manages axis parameterization via PROFINET and stores drive object configurations on a 6SL3054-0EJ00-1BA0 CompactFlash Card. When replacing a motor module, it is best practice to back up the CF card image before the swap and restore it after, preserving all axis parameters, safety functions, and speed/torque limits without manual re-entry.

For multi-axis cabinets where the 6SL3210-1KE15-8UF2 drives a servo axis alongside higher-power axes, the 6SL3210-1KE21-3UF1 (3.0 kW) or 6SL3210-1KE18-8UF1 (1.8 kW) Single Motor Modules may occupy adjacent slots. Confirming that all modules share the same firmware baseline (loaded via STARTER or TIA Portal) prevents version-mismatch faults on the DRIVE-CLiQ bus after the replacement module is inserted.

Terminal modules such as the 6SL3162-2AA00-0AA0 Terminal Module TM31 or TM15 are frequently used in the same cabinet to handle digital I/O expansion for safety interlocks and speed feedback signals. These modules connect to the same DRIVE-CLiQ ring and do not require reconfiguration when only the motor module is replaced, provided the topology file in the Control Unit is updated to reflect the new module’s serial number.

Where the legacy system used a SIMODRIVE 611 Universal with analog setpoint input, migration to the S120 platform requires a signal isolation step. A 6ES7134-4FB01-0AB0 analog input module on a distributed ET 200S rack — or a dedicated signal isolator — bridges the 0–10 V or ±10 V reference from the existing PLC output to the PROFINET-based S120 speed reference, eliminating ground loop interference common in retrofitted cabinets.

Finally, for sites running SIMATIC S7-300 or S7-400 PLCs that communicate with the S120 via PROFIBUS DP, the transition to a CU320-2 DP-based S120 system is straightforward: the existing GSD file and DP address assignment remain valid, and the PLC program requires only minor modifications to the drive telegram (typically Telegram 1 or Telegram 111) to accommodate the new module’s process data structure.

Retrofit Guidance FAQ

Q: Is the 6SL3210-1KE15-8UF2 a direct wiring replacement for the same slot in an existing S120 booksize cabinet?
A: Yes. The booksize form factor, DC link bus bar connectors, and motor output terminal positions are identical across the S120 Single Motor Module family. No cabinet re-wiring is required for a like-for-like replacement.

Q: Do I need to re-parameterize the drive after installing this replacement module?
A: If the Control Unit’s CompactFlash card contains a valid backup of the original drive configuration, the CU320-2 will automatically download parameters to the new module on first power-up. Manual re-parameterization is only required if the CF card backup is missing or corrupted.

Q: Is this module compatible with PROFIBUS DP and PROFINET simultaneously?
A: The 6SL3210-1KE15-8UF2 itself does not carry a fieldbus interface — communication is handled by the Control Unit (CU320-2 DP for PROFIBUS, CU320-2 PN for PROFINET). This motor module is compatible with both Control Unit variants.

Q: What firmware version is required on the Control Unit?
A: Siemens recommends firmware V4.7 SP10 or later on the CU320-2 for reliable operation with current S120 booksize modules. Firmware can be updated via STARTER or TIA Portal without replacing hardware.

Q: Can this module replace a unit in a system originally commissioned with STARTER V4.x?
A: Yes, but the project file should be migrated to STARTER V5.4 or TIA Portal V15+ before commissioning the replacement module to ensure full access to diagnostic and safety function parameters.

Q: What is the physical installation space requirement?
A: The 6SL3210-1KE15-8UF2 occupies a standard S120 booksize slot (45 mm width). No additional clearance or cabinet modification is needed when replacing an equivalent-rated module.

Q: How do I verify the replacement module is functioning correctly after installation?
A: After power-up, use STARTER or TIA Portal to confirm the module appears on the DRIVE-CLiQ topology, check for active faults (F-codes) in the diagnostics buffer, and perform a no-load test run at low speed before reconnecting the motor load.

Warranty Assurance

Every 6SL3210-1KE15-8UF2 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a multi-point outgoing inspection that includes visual examination for physical damage, verification of firmware version and module identification data, and functional power-on testing where applicable.

In the event of a confirmed defect within the warranty period, TOPNLMS provides a replacement unit or full refund — whichever the customer prefers — with no requirement to return the defective unit for initial claim processing. Replacement units are dispatched within 3 business days of claim confirmation.

Shipping is available worldwide from our Xiamen warehouse. Standard lead time for in-stock units is 3–7 business days to most destinations. Express DHL/FedEx options are available for urgent production-line recovery scenarios. All units are shipped in anti-static packaging with individual serial number documentation to support your incoming inspection and asset management records.
