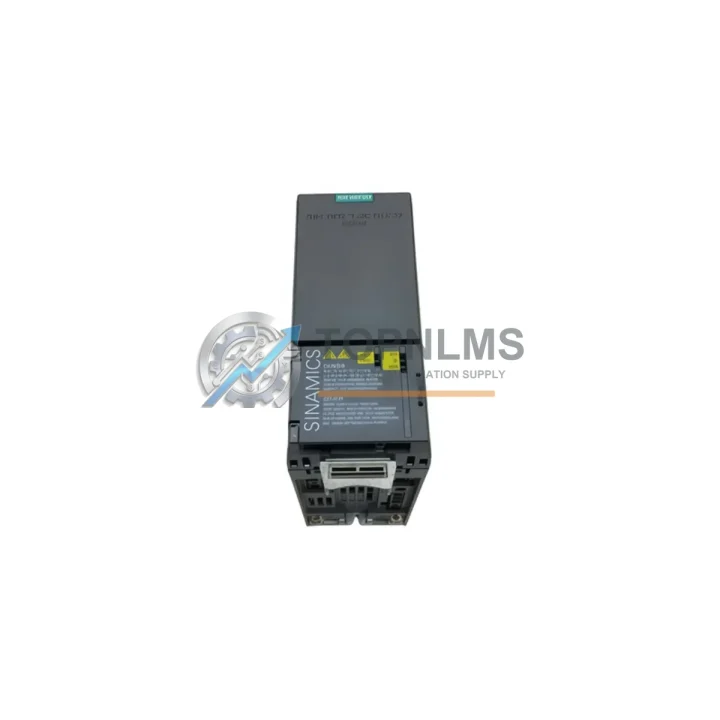

Siemens 6SL3210-1KE11-8UF2 Ruggedized Motor Drive Module

Product Overview

Siemens 6SL3210-1KE11-8UF2 Ruggedized Motor Drive Module: Industrial Resilience for Harsh Environments

The Siemens 6SL3210-1KE11-8UF2 is a Single Motor Module from the SINAMICS S120 Booksize series, engineered to deliver precise, reliable variable-speed drive control in the most demanding industrial environments. Rated at 0.75 kW and designed for seamless integration into the SINAMICS S120 drive system architecture, this module is a cornerstone component for engineers and procurement specialists who cannot afford downtime in continuous production lines, critical infrastructure, or heavy-industry facilities.

Built to Siemens’ exacting standards for industrial-grade electronics, the 6SL3210-1KE11-8UF2 is engineered to withstand elevated ambient temperatures, high-humidity conditions, airborne particulate contamination, mechanical vibration, and electromagnetic interference — all of which are routine challenges in sectors such as oil and gas processing, mining, metallurgy, power generation, water treatment, and chemical manufacturing. Its compact Booksize form factor allows dense cabinet integration without sacrificing thermal performance or signal integrity.

Rugged Specifications Table

Comprehensive Protection Solutions

The 6SL3210-1KE11-8UF2 Single Motor Module does not operate in isolation — it is part of a tightly integrated SINAMICS S120 drive system that demands equally robust supporting components. In a typical Booksize cabinet configuration, this module receives its DC bus power from a SINAMICS S120 Active Line Module (ALM) such as the 6SL3130-6AE21-0AB1, which provides clean, regulated DC power with active front-end harmonic mitigation. The ALM works in concert with a Line Filter and a SINAMICS S120 Braking Module (6SL3100-1BE21-3AA0) to manage regenerative energy during motor deceleration — critical in applications with high-inertia loads such as centrifuges, compressors, or hoisting equipment.

Communication and coordination across the drive system rely on the DRIVE-CLiQ interface, which connects the 6SL3210-1KE11-8UF2 to the SINAMICS S120 Control Unit (CU320-2 DP or CU320-2 PN), enabling real-time closed-loop vector control, safety function integration, and diagnostic data exchange. For installations requiring PROFIBUS DP or PROFINET IO connectivity back to a Siemens SIMATIC S7-300 or S7-1500 PLC, the CU320-2 series control units provide the necessary fieldbus interface without additional gateway hardware.

In safety-critical zones — such as SIL 2 or PLd applications in chemical plants or offshore platforms — the 6SL3210-1KE11-8UF2 can be paired with a SINAMICS S120 Safety Integrated option, enabling Safe Torque Off (STO) and Safe Stop 1 (SS1) functions directly within the drive, eliminating the need for external safety relays in many configurations. This integration reduces wiring complexity inside the control cabinet and improves response time for emergency stop sequences.

For I/O expansion and terminal connectivity within the same cabinet, Siemens Terminal Module TM31 (6SL3055-0AA00-3AA1) provides additional analog and digital I/O channels, while the Sensor Module Cabinet-Mounted SMC30 (6SL3055-0AA00-5AA3) enables encoder feedback from motors without integrated DRIVE-CLiQ interfaces. These components, combined with the 6SL3210-1KE11-8UF2, form a complete, validated drive solution that meets the reliability expectations of continuous-process industries.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, the 6SL3210-1KE11-8UF2 is deployed to control pump motors, compressor auxiliaries, and valve actuators where precise speed regulation directly impacts process safety and energy efficiency. Its robust EMC shielding and compliance with EN 61800-3 Category C2 ensure stable operation even in environments with high-frequency interference from variable-frequency welding equipment, high-power switchgear, or co-located radio transmitters.

In underground mining and mineral processing facilities, mechanical shock and vibration are constant stressors. The 6SL3210-1KE11-8UF2’s compliance with IEC 60068-2-6 sinusoidal vibration and IEC 60068-2-27 shock standards means it maintains electrical contact integrity and PCB structural soundness even when mounted in cabinets subject to blasting vibration or heavy conveyor-induced resonance.

Power generation plants — including thermal, hydroelectric, and wind — rely on SINAMICS S120 Booksize modules for auxiliary drive control: cooling fans, lubrication pumps, and pitch control systems. The 6SL3210-1KE11-8UF2’s wide storage temperature range (−40 °C to +70 °C) makes it suitable for spare-parts inventory in outdoor substations or remote wind turbine nacelles where temperature swings are extreme.

In water and wastewater treatment, continuous operation of aeration blowers, sludge pumps, and dosing systems is non-negotiable. The 6SL3210-1KE11-8UF2 supports energy-saving variable-speed operation that reduces pump wear and extends mean time between maintenance intervals — a direct operational cost benefit for municipal utilities operating on tight maintenance budgets.

Metallurgical and steel-rolling applications subject drive electronics to intense radiated heat and airborne metallic particulates. Cabinet-level IP54 enclosures combined with the 6SL3210-1KE11-8UF2’s IP20-rated Booksize design allow system integrators to achieve the necessary ingress protection at the enclosure level while maintaining the module’s thermal performance through forced-air cooling channels built into the Booksize mounting rail system.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the 6SL3210-1KE11-8UF2?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing — including DC bus energization, DRIVE-CLiQ communication verification, and output stage switching checks — before dispatch. If a unit fails within the warranty period due to a covered defect, we provide replacement or repair at no additional cost. Warranty claims are processed within 5 business days of receipt of the returned unit.

Q2: How is compatibility with my existing SINAMICS S120 system verified?
The 6SL3210-1KE11-8UF2 is fully compatible with all SINAMICS S120 Booksize line-ups using a shared DC bus architecture. It connects via standard DRIVE-CLiQ to CU320-2 DP and CU320-2 PN control units and is supported by STARTER and TIA Portal V14 and above for commissioning. If you provide your existing system configuration — including firmware version and control unit type — our technical team can confirm compatibility before shipment.

Q3: Is long-term supply availability guaranteed for this module?
We maintain dedicated stock of the 6SL3210-1KE11-8UF2 to support both planned maintenance schedules and emergency replacement needs. For customers with critical infrastructure dependencies, we recommend discussing a consignment or reserved-stock arrangement to ensure zero lead-time availability. Contact our team to discuss volume pricing and long-term supply agreements.

Q4: What testing is performed before shipment, and how is the unit packaged?
Every 6SL3210-1KE11-8UF2 unit is inspected for physical integrity, label authenticity, and functional performance prior to dispatch. Units are packed in anti-static ESD bags, cushioned with foam inserts, and shipped in double-walled corrugated cartons rated for international freight. For air freight shipments, we include a shock indicator label to detect mishandling in transit. Tracking information and a packing list are provided at the time of shipment.
