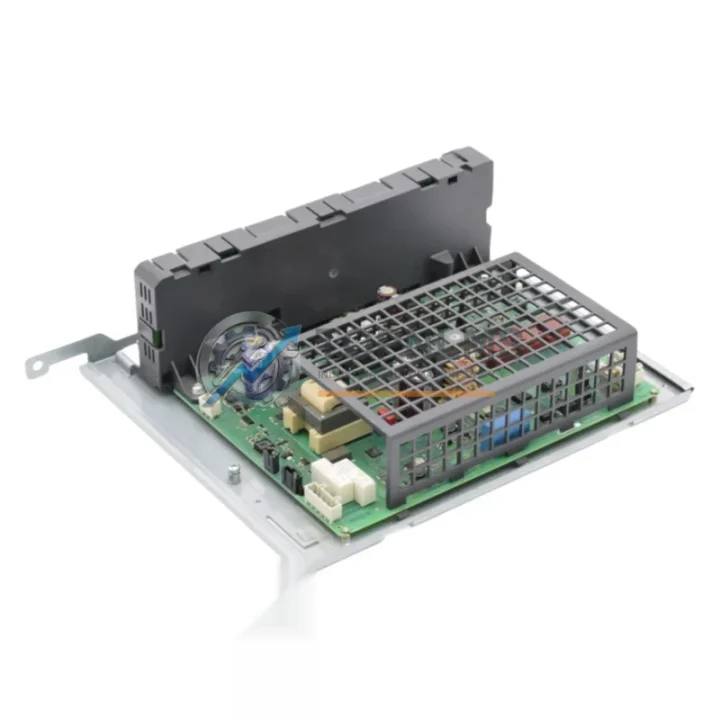

Siemens 6SL3200-0SP01-0AA0 Ruggedized Drive Module for Harsh Environments

Product Overview

Siemens 6SL3200-0SP01-0AA0 Ruggedized Drive Module for Harsh Environments

The Siemens 6SL3200-0SP01-0AA0 is a high-performance DC link component within the SINAMICS S120 drive system, engineered to deliver unwavering reliability in the most demanding industrial environments. Designed and manufactured in Germany to Siemens’ exacting quality standards, this drive module is purpose-built for continuous operation in conditions characterized by extreme temperatures, elevated humidity, pervasive dust, mechanical vibration, and intense electromagnetic interference (EMI). Whether deployed on a continuous steel rolling line, inside a petrochemical control cabinet, or at the heart of a municipal water treatment facility, the 6SL3200-0SP01-0AA0 maintains stable DC bus voltage and ensures uninterrupted power delivery to connected SINAMICS S120 Motor Modules and Power Modules.

In heavy industrial settings, drive system failures cascade rapidly — a single unstable DC link can trip an entire production line, triggering costly unplanned downtime. The 6SL3200-0SP01-0AA0 addresses this risk through robust internal filtering, reinforced bus bar connections, and thermal management architecture that sustains rated performance across a wide ambient temperature range. Its compact booksize form factor integrates seamlessly into the SINAMICS S120 modular drive architecture, allowing engineers to configure scalable multi-axis drive systems with a shared DC bus — a critical advantage in applications where multiple servo axes or vector-controlled motors must operate in tight synchronization.

For procurement engineers and maintenance managers sourcing replacement or expansion components, TOPNLMS maintains verified stock of the 6SL3200-0SP01-0AA0, with each unit subject to pre-shipment functional testing. All units are shipped with a 12-month warranty, providing documented assurance for capital equipment budgets and maintenance planning cycles.

Rugged Specifications Table

Comprehensive Protection Solutions

The 6SL3200-0SP01-0AA0 does not operate in isolation — it is the backbone of a coordinated SINAMICS S120 drive train. In a typical booksize drive cabinet, it works in concert with the SINAMICS S120 Active Line Module (e.g., 6SL3130 series) to provide a regulated, low-ripple DC bus, which in turn feeds one or more SINAMICS S120 Single Motor Modules (6SL3120 series) or Double Motor Modules (6SL3121 series) driving servo or induction motors. The entire system is orchestrated by a SINAMICS S120 Control Unit CU320-2 DP or CU320-2 PN, which communicates with each drive component over the proprietary DRIVE-CLiQ interface — a high-speed serial bus that eliminates traditional encoder wiring complexity and enables real-time diagnostics.

In safety-critical installations, the drive train is further protected by SINAMICS S120 Safety Integrated functions — including Safe Torque Off (STO), Safe Stop 1 (SS1), and Safely Limited Speed (SLS) — which are activated through dedicated safety I/O terminals or via PROFINET/PROFIBUS safety protocols. These functions comply with IEC 62061 SIL 2 and EN ISO 13849-1 PL d, making the S120 platform suitable for machinery safety applications without the need for external safety relays in many configurations.

On the power supply side, the S120 booksize system typically draws from a Siemens SITOP PSU300S or equivalent 24 VDC control power supply for the electronics rail, while the main power feed passes through a Siemens 3RT contactor and a 3RV circuit breaker for upstream protection. For installations in environments with significant harmonic distortion — common in mining substations and arc furnace facilities — a SINAMICS S120 Basic Line Module (6SL3130-6AE series) with an external line reactor provides additional harmonic mitigation and protects the DC link from voltage spikes.

Communication integration is handled through the CU320-2’s onboard PROFINET IRT or PROFIBUS DP interface, enabling seamless integration with Siemens SIMATIC S7-300, S7-400, or S7-1500 PLC controllers running in the plant’s distributed control architecture. For legacy installations, the SINAMICS S120 CBE20 Communication Board extends connectivity to EtherNet/IP or other industrial Ethernet protocols. Terminal expansion and I/O mapping are managed through SIMATIC ET 200SP or ET 200M distributed I/O stations, which relay process signals from field instruments back to the drive control logic.

Application in Critical Infrastructure

The Siemens 6SL3200-0SP01-0AA0 has established a proven track record across the most demanding sectors of critical infrastructure. In oil and gas facilities — including offshore platforms, onshore compression stations, and pipeline pump drives — the S120 drive system’s robust DC link architecture ensures that motor drives continue operating through grid disturbances and voltage sags that would trip lesser systems. The module’s compliance with EMC Category C3 standards makes it suitable for installation in industrial power networks where variable-frequency drives, welding equipment, and large transformer loads create persistent electromagnetic noise.

In underground mining operations, where conveyor belt drives, hoist systems, and ventilation fans must run continuously under heavy mechanical load and in atmospheres with elevated coal dust or mineral particulate, the S120 booksize system’s sealed control cabinet installation (IP54 or higher enclosure) combined with the 6SL3200-0SP01-0AA0’s wide operating temperature tolerance ensures reliable performance even when ambient temperatures fluctuate significantly between shifts. Maintenance teams value the module’s hot-swap-compatible design within the S120 architecture, which allows replacement during scheduled maintenance windows without full system shutdown in certain configurations.

For power generation and grid-tied applications — including wind turbine pitch control systems, hydroelectric governor drives, and thermal power plant auxiliary drives — the S120 platform’s DRIVE-CLiQ diagnostics provide real-time health monitoring of the DC link, enabling predictive maintenance strategies that reduce unplanned outages. Water treatment facilities operating large centrifugal pump arrays rely on the S120’s precise speed control and energy recovery capabilities to optimize pump efficiency across varying flow demand profiles, with the 6SL3200-0SP01-0AA0 providing the stable DC bus foundation that makes multi-pump coordination possible.

In metals and steel production — arguably the harshest environment for drive electronics, combining radiant heat, vibration from rolling mills, and aggressive electromagnetic interference from induction furnaces — the S120 system’s thermal management and EMI shielding architecture have made it a preferred platform for rolling mill main drives, coiler tension control, and continuous casting line synchronization. The 6SL3200-0SP01-0AA0’s role as the DC link stabilizer in these multi-axis coordinated drive systems is critical to maintaining the tight speed and torque tolerances that product quality demands.

Security & Quality FAQ

Q1: What warranty coverage is provided with the 6SL3200-0SP01-0AA0?
All units supplied by TOPNLMS carry a 12-month warranty from the date of shipment. This covers functional defects identified under normal operating conditions consistent with Siemens SINAMICS S120 installation guidelines. Warranty claims are supported by our technical team at [email protected], and replacement or repair logistics are coordinated promptly to minimize your downtime exposure.

Q2: How is each unit tested before shipment?
Every 6SL3200-0SP01-0AA0 unit in our inventory undergoes a pre-shipment functional verification process. This includes visual inspection for physical integrity, power-on testing to confirm internal electronics are operational, and where applicable, communication interface checks. Units that do not pass inspection are quarantined and not dispatched. A test record is available upon request for quality-critical procurement processes.

Q3: Is the 6SL3200-0SP01-0AA0 compatible with my existing SINAMICS S120 system?
Yes — the 6SL3200-0SP01-0AA0 is a standard DC link component within the SINAMICS S120 booksize family and is compatible with S120 Active Line Modules, Motor Modules, and Control Units (CU320-2 DP/PN, CU310-2 DP/PN) that share the same DC bus architecture. It is also compatible with STARTER and SINAMICS Startdrive commissioning software. If you require confirmation for a specific system configuration, please contact our technical team with your existing drive topology and firmware version.

Q4: Can TOPNLMS support long-term supply and emergency replacement needs?
Yes. TOPNLMS maintains ongoing stock of the 6SL3200-0SP01-0AA0 and related SINAMICS S120 components to support both planned maintenance schedules and emergency breakdown replacement scenarios. We understand that production-critical facilities cannot afford extended lead times on spare parts. Our standard dispatch timeline is within 3–5 business days for in-stock units, with expedited shipping options available for urgent requirements. For facilities managing a broader S120 spare parts program, we welcome discussions on blanket order arrangements and consignment stock agreements.
