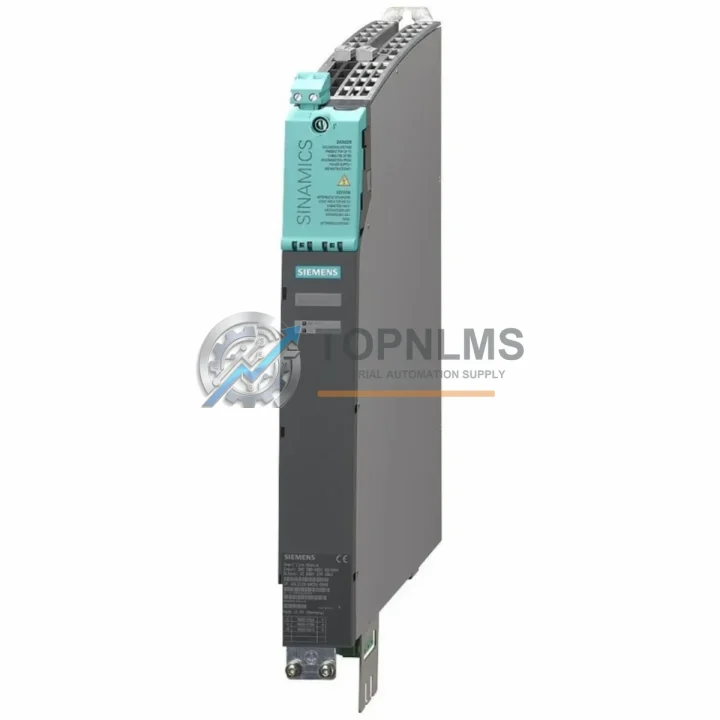

SIEMENS 6SL3130-6TE21-6AA4 Ruggedized Smart Line Module: Industrial Resilience for Harsh Environments

The SIEMENS 6SL3130-6TE21-6AA4 is a high-performance Smart Line Module (SLM) within the SINAMICS S120 drive system, engineered for active infeed and regenerative energy feedback in demanding industrial environments. Designed to operate reliably under conditions of elevated temperature, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference, this module is a cornerstone component for engineers who cannot afford downtime in continuous production lines, heavy industry facilities, or safety-critical infrastructure.

As part of the SINAMICS S120 booksize cabinet kit architecture, the 6SL3130-6TE21-6AA4 delivers a regulated DC bus voltage to connected Motor Modules — including single-axis and double-axis variants such as the 6SL3120 series — ensuring stable power delivery even when upstream supply quality fluctuates. Its active front-end topology enables sinusoidal line current draw and unity power factor operation, reducing harmonic distortion and protecting sensitive co-located equipment such as SIMATIC S7-300 and S7-400 PLCs, ET 200 distributed I/O systems, and SIRIUS safety relays from grid-borne interference.

In environments where vibration from heavy machinery, conveyors, or compressors is constant, the module’s robust mechanical design and conformal-coated PCBs maintain signal integrity across the DRIVE-CLiQ communication backbone. DRIVE-CLiQ enables seamless topology recognition and real-time diagnostics between the 6SL3130-6TE21-6AA4, the Control Unit (CU320-2 DP or CU320-2 PN), and downstream components including the SINAMICS S120 Braking Module and the Smart Line Module’s associated Line Filter and Line Reactor. This integrated communication architecture eliminates manual parameter assignment errors and accelerates commissioning in field replacement scenarios.

Rugged Specifications Table

Comprehensive Protection Solutions

The 6SL3130-6TE21-6AA4 does not operate in isolation — it is the power foundation upon which an entire SINAMICS S120 drive train depends. For optimal system protection, it is paired with a SINAMICS S120 Line Filter 6SL3000-0BE21-6DA0 and a Line Reactor 6SL3000-0CE21-6AA0 on the AC input side, which together suppress conducted emissions and protect the module from voltage spikes originating in the plant network. On the DC bus, a SINAMICS S120 Braking Module 6SL3100-1BE21-3AA0 handles regenerative overvoltage events during emergency stops or rapid deceleration cycles.

Within the control cabinet, the module communicates via DRIVE-CLiQ with the CU320-2 PN Control Unit, which coordinates axis motion across multiple Motor Modules. The SINAMICS S120 Double Motor Module 6SL3120-2TE21-0AA3 and Single Motor Module 6SL3120-1TE21-0AA3 draw regulated DC power directly from the Smart Line Module’s DC bus, enabling synchronized multi-axis operation in machine tool and press applications. For safety-critical axes, the SINAMICS S120 Safety Integrated functions — including STO (Safe Torque Off) and SS1 (Safe Stop 1) — are activated through the CU320-2 and monitored by a SIRIUS 3SK1 Safety Relay, ensuring IEC 62061 SIL 2 compliance without external safety PLCs.

Distributed I/O expansion is handled by ET 200SP HA or ET 200M modules connected to the SIMATIC S7-400H controller via PROFIBUS DP or PROFINET, providing real-time feedback on drive status, thermal conditions, and fault codes directly to the plant DCS. Terminal modules such as the SIMATIC S7 SM 321 Digital Input Module interface field sensors and limit switches into the control loop, completing a fully integrated, diagnostics-capable automation architecture.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the 6SL3130-6TE21-6AA4 drives compressor trains and pump stations where unplanned shutdowns translate directly into production loss and safety incidents. Its regenerative capability allows energy recovery during pressure-relief valve cycling, reducing net energy consumption in high-cycle applications. Cabinet installations in these environments typically include positive-pressure purging systems to maintain IP54 or higher protection at the enclosure level, while the module itself operates within its rated IP20 envelope inside the sealed cabinet.

In mining and mineral processing, the module powers conveyor belt drives, crusher motors, and hoist systems subject to continuous vibration, coal dust ingress at the cabinet seams, and wide ambient temperature swings between surface and underground installations. The SINAMICS S120 platform’s modular architecture allows rapid swap-out of the Smart Line Module during scheduled maintenance windows, minimizing conveyor downtime to under 30 minutes with a pre-configured replacement unit.

In power generation and utilities — including hydroelectric, thermal, and wind energy facilities — the module’s active front-end ensures that auxiliary drive systems (cooling fans, feed pumps, valve actuators) do not inject harmonic currents into the plant’s internal MV/LV distribution network, protecting sensitive protection relays and metering equipment from measurement errors. Water treatment plants rely on the same architecture for variable-speed aeration blowers and sludge pump drives, where energy efficiency and continuous availability are both regulatory and operational requirements.

In metallurgy and heavy industry — rolling mills, arc furnace auxiliaries, and ladle transfer cars — the regenerative feedback capability of the 6SL3130-6TE21-6AA4 is particularly valuable. During braking of high-inertia loads, recovered energy is fed back to the plant grid rather than dissipated as heat in braking resistors, reducing both energy costs and thermal load within the control room.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the 6SL3130-6TE21-6AA4?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. Each unit shipped by TOPNLMS has been bench-tested for DC bus output voltage regulation, DRIVE-CLiQ communication integrity, and fan operation prior to dispatch. Warranty claims are processed with a replacement-first policy to minimize your downtime.

Q2: How is each unit tested before shipment?
Every 6SL3130-6TE21-6AA4 undergoes a multi-point pre-shipment inspection: visual inspection for physical damage, power-on functional test confirming correct DC link voltage output, DRIVE-CLiQ port communication verification, and thermal imaging to confirm no abnormal heat signatures. Units that do not pass all checkpoints are quarantined and not dispatched.

Q3: Is this module compatible with existing SINAMICS S120 installations using older firmware?
The 6SL3130-6TE21-6AA4 is compatible with SINAMICS S120 systems running firmware V4.7 and above. For installations on earlier firmware versions, a firmware update via STARTER or TIA Portal is recommended before integration. TOPNLMS can provide firmware guidance and commissioning support documentation upon request.

Q4: Can TOPNLMS guarantee long-term supply and replacement support?
Yes. TOPNLMS maintains dedicated stock of SINAMICS S120 Smart Line Modules and associated components to support both planned maintenance schedules and emergency breakdown replacements. Orders placed before 14:00 CST on business days are processed for same-day dispatch. For critical infrastructure operators requiring guaranteed lead times, framework supply agreements are available — contact our team directly to discuss your requirements.
