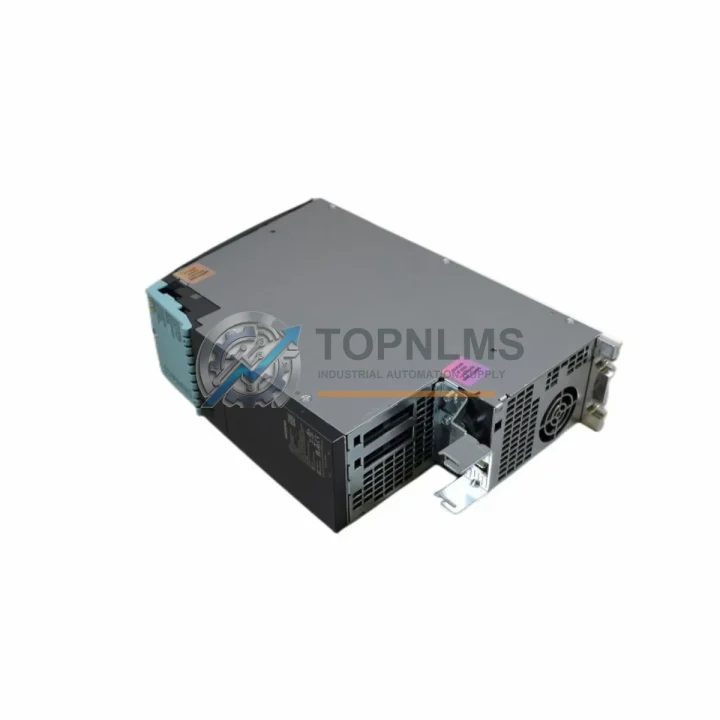

Siemens 6SL3120-2TE21-8AC0 Replacement for SINAMICS S120: Smooth Transition & Legacy System Compatibility

The Siemens 6SL3120-2TE21-8AC0 is a SINAMICS S120 Booksize Double Motor Module rated at 18 A continuous output current, supporting two independent 7.5 kW motor axes from a single booksize slot. As legacy SINAMICS S120 infrastructure ages and original modules reach end-of-service, plant engineers and procurement teams increasingly require a verified replacement path that preserves existing wiring harnesses, cabinet layouts, drive bus topology, and PROFIBUS/PROFINET communication architecture — without forcing a full drive system redesign.

This listing provides a tested, ready-to-ship 6SL3120-2TE21-8AC0 replacement unit sourced for industrial retrofit and modernization projects. Whether you are replacing a failed module in a running production line, building a spare-parts buffer for a multi-axis S120 installation, or executing a phased migration from an older SIMODRIVE 611 or MASTERDRIVES MC platform to the current SINAMICS S120 architecture, this module delivers the electrical and mechanical compatibility your project demands.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to or within the SINAMICS S120 Booksize platform rarely involves a single module swap. In practice, the 6SL3120-2TE21-8AC0 Double Motor Module operates as part of a coordinated drive system. The Control Unit — typically a CU320-2 PN or CU320-2 DP — manages axis parameterization and communicates drive status upstream to the S7-300 or S7-1500 PLC via PROFINET or PROFIBUS. When replacing a failed double motor module, engineers should simultaneously verify the condition of the adjacent 6SL3130-7TE21-6AA3 Smart Line Module or Active Line Module, which supplies the shared DC bus voltage to all Booksize power modules in the cabinet section.

Encoder feedback integrity is equally critical. The 6SL3120-2TE21-8AC0 relies on Drive-CLiQ signals from SMC20 or SMC30 Sensor Modules to close the speed and position loops for each axis. If the legacy installation used HTL incremental encoders connected through a 6SL3055-0AA00-5BA0 Terminal Module, those terminal modules should be inspected and replaced as part of the same maintenance window to avoid intermittent feedback faults after the module swap.

Power supply continuity is another migration consideration. The 6EP1336-3BA00 SITOP PSU300S or equivalent 24 VDC control supply feeds the Drive-CLiQ network and the CU320-2 logic board. A degraded SITOP supply can cause sporadic F07801 or A07801 alarms that are incorrectly attributed to the motor module itself. Replacing the 6SL3120-2TE21-8AC0 alongside a verified SITOP unit eliminates this diagnostic ambiguity.

For installations migrating from SIMODRIVE 611 to SINAMICS S120, the mechanical transition typically requires a 6SL3162-2AA00-0AA0 Booksize Mounting Adapter to align the new module footprint within the existing cabinet rail system. Signal wiring from legacy X1/X2 motor terminals can often be re-terminated directly to the S120 motor connector with no length modification, provided the cable cross-section meets the 6SL3120-2TE21-8AC0 specification. PROFIBUS address assignment and drive object configuration are handled through STARTER or TIA Portal Startdrive, replacing the older DriveMonitor workflow.

Where the application involves coordinated multi-axis motion — such as gantry systems, winding lines, or CNC spindle/feed combinations — the 6SL3120-2TE21-8AC0 must be commissioned in conjunction with the correct DSC (Dynamic Servo Control) telegram configuration (typically PROFIdrive Telegram 105 or 106) to maintain synchronization performance equivalent to the replaced system. The 6FC5303-0DT12-1AA0 SINUMERIK 828D or 840D sl NCU can serve as the higher-level motion controller in such architectures, issuing setpoints to the CU320-2 over PROFINET IRT.

Retrofit Guidance FAQ

Q: Can I replace only the 6SL3120-2TE21-8AC0 without changing the Control Unit?
A: Yes, provided the existing CU320-2 firmware version is compatible with the replacement module’s hardware revision. Check the firmware release notes in the SINAMICS S120 List Manual (LH1) and update via STARTER if required before commissioning.

Q: Will my existing motor cables and connectors fit?
A: The 6SL3120-2TE21-8AC0 uses standard Booksize X1/X2 motor output connectors. Existing power cables rated for the original module’s current class are directly reusable. Verify cable screen termination at the EMC shield clamp on the module chassis.

Q: How do I migrate parameters from the failed module?
A: If the CU320-2 CompactFlash card is intact, all drive object parameters are stored on the card and will be automatically loaded to the replacement module on first power-up. No manual re-parameterization is required in most cases.

Q: Is PROFIBUS addressing affected by the module swap?
A: No. PROFIBUS node addresses are assigned at the Control Unit level, not the motor module. The replacement 6SL3120-2TE21-8AC0 inherits the existing drive object topology from the CompactFlash card.

Q: What alarms should I expect during first commissioning after replacement?
A: Expect A01900 (topology mismatch) on first power-up if the module hardware revision differs from the stored topology. Accept the new topology in STARTER or via p9905/p9906 to clear. F-alarms related to encoder feedback should clear once Drive-CLiQ cables are seated and the SMx modules are recognized.

Q: Can this module replace a single-axis 6SL3120-1TE21-8AC0 in a space-constrained cabinet?
A: The double motor module occupies the same Booksize slot width as a single-axis module of equivalent current rating, making it a space-neutral or space-saving substitution when consolidating two single-axis modules into one double module slot.

Warranty Assurance

Every 6SL3120-2TE21-8AC0 unit shipped from TOPNLMS undergoes a pre-shipment functional inspection covering DC bus insulation resistance, Drive-CLiQ port continuity, output IGBT gate drive integrity, and thermal interface condition. Units are packed in anti-static ESD bags with foam-lined cartons to prevent transit damage.

All units carry a 12-month warranty from the date of delivery. Warranty coverage includes free replacement of any unit that exhibits functional failure under normal operating conditions within the warranty period. Warranty claims are processed within 3 business days of fault confirmation, and replacement units are dispatched from Xiamen with priority freight to minimize production downtime.

TOPNLMS maintains a standing inventory of SINAMICS S120 Booksize modules to support emergency breakdown orders. Same-day dispatch is available for orders confirmed before 14:00 CST. Export documentation, including commercial invoice, packing list, and certificate of origin, is provided as standard for international shipments.

For technical pre-sales consultation, compatibility verification, or bulk procurement inquiries, contact our engineering team directly.
