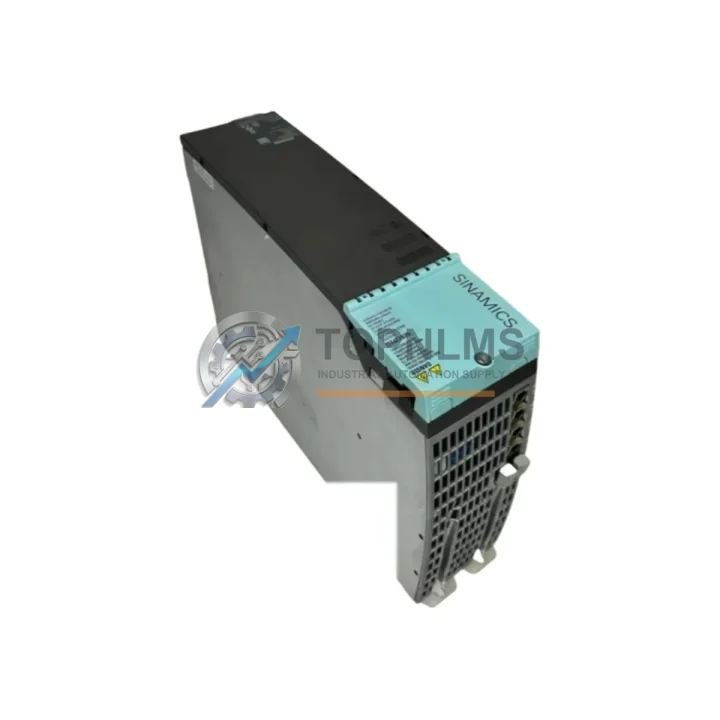

Siemens 6SL3120-2TE21-8AA3 Ruggedized Dual-Axis Motor Module

Product Overview

Siemens 6SL3120-2TE21-8AA3 Ruggedized Dual-Axis Motor Module: Industrial Resilience for Harsh Environments

The Siemens 6SL3120-2TE21-8AA3 is a high-performance Double Motor Module within the SINAMICS S120 Booksize drive family, engineered to deliver precise, dual-axis servo control under the most demanding industrial conditions. Rated at 18A continuous output current per axis, this module is purpose-built for applications where uptime, accuracy, and environmental resilience are non-negotiable. Whether deployed in high-temperature foundries, dust-laden mining galleries, vibration-intensive press lines, or EMI-saturated power generation facilities, the 6SL3120-2TE21-8AA3 maintains stable, fault-tolerant operation across the full duty cycle.

Designed as a Booksize format component, it integrates seamlessly into the SINAMICS S120 modular drive architecture, sharing a common DC bus with other Booksize power and motor modules. This shared-bus topology enables regenerative energy exchange between axes, reducing overall energy consumption and heat dissipation — a critical advantage in enclosed control cabinets operating in ambient temperatures up to 40°C (with derating to 55°C). The module communicates via the DRIVE-CLiQ digital interface, enabling high-speed, noise-immune data exchange with the SIMATIC S7-300 / S7-400 / S7-1500 PLC controllers and the CU320-2 Control Unit, ensuring deterministic motion control even in electrically noisy environments.

Rugged Specifications Table

Comprehensive Protection Solutions

In modern industrial automation architectures, the 6SL3120-2TE21-8AA3 rarely operates in isolation. It is most commonly deployed alongside the Siemens 6SL3130-6AE21-0AB1 Smart Line Module, which provides regulated DC bus power and active front-end regeneration, enabling the entire Booksize drive train to feed braking energy back to the grid rather than dissipating it as heat. On the control side, the CU320-2 PN Control Unit (6SL3040-1MA01-0AA0) orchestrates multi-axis motion sequences via PROFINET, delivering sub-millisecond cycle times essential for synchronized press or winding applications.

For cabinet-level protection, the module is typically paired with Siemens SITOP PSU8600 power supply modules, which provide clean, regulated 24 V DC logic power with diagnostic output signaling — ensuring that even during mains fluctuations, the control electronics remain stable. Upstream, Siemens 3RV2 motor protection circuit breakers and 3RT2 contactors provide short-circuit and overload protection for the incoming AC supply to the Line Module, forming a coordinated protection chain compliant with IEC 60947.

Signal integrity in high-EMI environments is maintained through Siemens SINAMICS S120 Shield Connection Kits and properly grounded cable trays. For applications requiring functional safety beyond basic STO, the 6SL3055-0AA00-5BA0 Safety Integrated Option Board extends the module’s safety capability to SS1, SLS, and SDI functions, supporting compliance with IEC 62061 SIL 2 and ISO 13849-1 PLd. Communication to field devices is handled via PROFIBUS DP or PROFINET IO depending on the CU320-2 variant selected, with Siemens SCALANCE X208 industrial Ethernet switches providing managed, ring-topology network resilience at the field level.

Terminal-level I/O expansion is achieved through Siemens ET 200SP distributed I/O modules mounted on IM 155-6 PN interface modules, enabling remote digital and analog I/O in decentralized panel locations without additional fieldbus wiring complexity. For encoder feedback, the module supports SMC20 Sensor Module Cabinet-Mounted units, which interface with TTL, HTL, and SSI encoders, providing accurate position and speed feedback even in high-vibration environments.

Application in Critical Infrastructure

The 6SL3120-2TE21-8AA3 has established a strong operational record across the most demanding sectors of critical infrastructure. In oil and gas processing facilities, it drives dual-axis positioning systems for valve actuators and compressor control mechanisms, where SIL-rated safety functions and continuous availability are mandated by process safety management regulations. The module’s STO function integrates directly with emergency shutdown (ESD) systems, enabling safe de-energization of motor axes within the required response time without mechanical braking wear.

In underground mining operations, the module controls conveyor drive systems and hoist positioning equipment in environments characterized by coal dust, methane risk, high humidity, and constant mechanical vibration. Its robust Booksize enclosure, combined with cabinet-level IP54 or IP65 protection from the surrounding control panel, ensures reliable operation across multi-year maintenance intervals. Power generation and grid infrastructure applications leverage the module’s precise torque control for turbine blade pitch adjustment and cooling fan speed regulation, where even minor deviations in rotational accuracy can affect grid frequency stability.

In water and wastewater treatment plants, the 6SL3120-2TE21-8AA3 manages dual-axis pump and mixer drive systems, operating continuously in high-humidity, chemically aggressive atmospheres. Its sealed cabinet installation, combined with corrosion-resistant wiring practices, supports the 24/7 operational demands of municipal water infrastructure. Steel and metallurgical plants deploy this module in rolling mill drive systems, where it must sustain high cyclic loads, rapid acceleration/deceleration profiles, and exposure to radiant heat from furnace operations — conditions that stress lesser drive components into premature failure.

In automotive body-in-white assembly lines, the module’s dual-axis capability enables synchronized control of robotic welding positioners and transfer systems, reducing cabinet footprint while maintaining the microsecond-level synchronization required for weld quality consistency. Across all these environments, the 6SL3120-2TE21-8AA3 delivers the combination of precision, ruggedness, and safety integration that defines Siemens SINAMICS S120 as the benchmark drive platform for critical industrial applications.

Security & Quality FAQ

Q1: What warranty coverage is provided for the 6SL3120-2TE21-8AA3?
All units supplied by TOPNLMS carry a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed with priority technical support, and replacement units are dispatched from our Xiamen warehouse to minimize your downtime exposure.

Q2: How is each unit tested before shipment?
Every 6SL3120-2TE21-8AA3 unit undergoes a pre-shipment inspection protocol that includes visual inspection for physical damage, firmware version verification, and functional power-on testing where applicable. Units sourced as surplus new are verified against Siemens original packaging and date codes. Test records are available upon request for quality-critical procurement processes.

Q3: Is this module compatible with my existing SINAMICS S120 Booksize installation?
Yes. The 6SL3120-2TE21-8AA3 is a standard Booksize Double Motor Module and is mechanically and electrically compatible with all SINAMICS S120 Booksize infrastructure, including existing DC bus bars, DRIVE-CLiQ cabling, and CU320-2 control units. It is firmware-upgradeable via STARTER or TIA Portal Startdrive, ensuring compatibility with current and legacy drive project configurations. If you require compatibility verification for a specific system configuration, contact our technical team before ordering.

Q4: Can TOPNLMS support long-term or repeat supply of this module?
Yes. TOPNLMS maintains dedicated inventory reserves for high-demand SINAMICS S120 Booksize components, including the 6SL3120-2TE21-8AA3, to support planned maintenance schedules, emergency replacements, and capital project builds. We offer blanket order arrangements for customers requiring guaranteed availability over 12–36 month project horizons. Contact our procurement team to discuss volume pricing and reserved stock agreements.
