Siemens 6SL3120-1TE32-0AA3 Original Industrial Spare S120 Compatible: Ensuring System Stability in Demanding Automation Environments

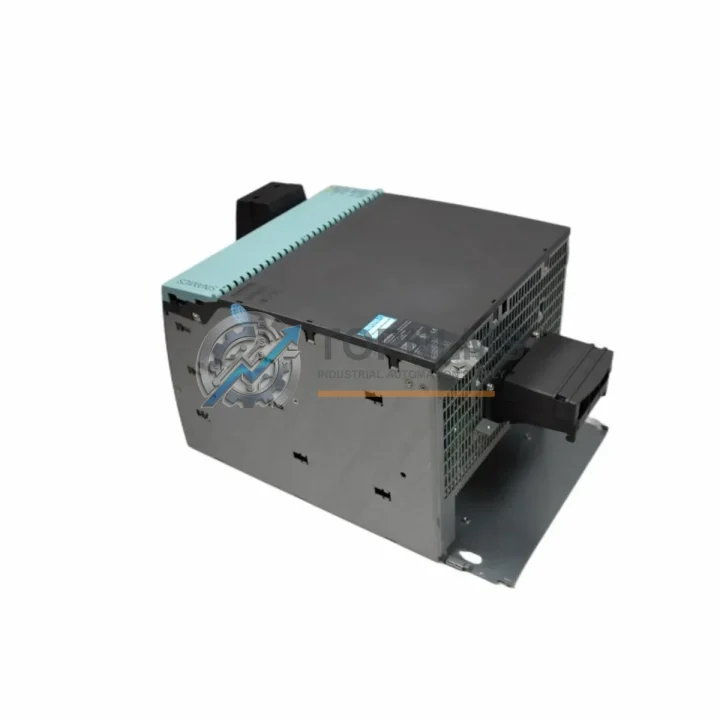

The Siemens 6SL3120-1TE32-0AA3 is a Single Motor Module rated at 200A, designed for the SINAMICS S120 Booksize platform — one of Siemens’ most widely deployed modular servo and vector drive architectures in industrial automation. Whether you are managing a CNC machining center, a high-speed packaging line, a paper mill, or a multi-axis robotic cell, this motor module is a mission-critical component whose failure can bring an entire production line to a halt. Sourcing a verified original replacement unit and maintaining it as a strategic spare is one of the most cost-effective decisions a maintenance engineer or procurement manager can make.

At TOPNLMS, every 6SL3120-1TE32-0AA3 unit is sourced as an original Siemens component, subjected to pre-shipment functional testing, and dispatched with a 12-month quality warranty. Our inventory is maintained to support urgent breakdown orders as well as planned preventive maintenance procurement cycles.

Critical Technical Specs

Preventive Maintenance Strategy for SINAMICS S120 Drive Cabinets

When a 6SL3120-1TE32-0AA3 Single Motor Module is flagged for replacement — whether due to an F-fault alarm, thermal shutdown, overcurrent trip, or scheduled lifecycle maintenance — experienced maintenance teams know that the motor module itself is rarely the only component that warrants attention. The SINAMICS S120 Booksize architecture is a tightly integrated system, and a thorough inspection during any planned or unplanned downtime event should extend to the entire drive line-up.

Begin with the Active Line Module (ALM) or Basic Line Module (BLM) that feeds the DC bus shared by all motor modules in the cabinet. A degraded line module can cause recurring overcurrent or undervoltage faults across multiple axes, and replacing only the motor module without verifying the line module’s health is a common source of repeat failures. Similarly, the SINAMICS S120 Control Unit — typically a CU320-2 DP or CU320-2 PN — should be inspected for firmware version compatibility and DRIVE-CLiQ communication integrity, as a faulty control unit can misreport motor module status and lead to unnecessary replacements.

The DRIVE-CLiQ cables connecting the control unit to each motor module and to the motor encoder feedback system are a frequently overlooked failure point. These cables carry both power and data, and even minor connector corrosion or cable damage can produce intermittent encoder faults or axis synchronization errors. During any motor module swap, replace or at minimum re-seat all DRIVE-CLiQ connectors in the affected axis chain.

For the motor side, verify the condition of the Sensor Module Cabinet-Mounted (SMC) — such as the SMC20 or SMC30 — which interfaces between the motor encoder and the DRIVE-CLiQ network. A failing SMC can produce ghost encoder faults that mimic motor module failures. Alongside this, inspect the motor power cables and braking resistor connections for insulation degradation, particularly in high-cycle applications.

On the power supply side, the 24V DC SITOP power supply module feeding the control electronics deserves attention. An unstable 24V rail is a silent cause of random control unit resets and DRIVE-CLiQ dropouts. If the cabinet also includes a Voltage Sensing Module (VSM10) for line voltage monitoring, verify its calibration and connection integrity.

For multi-axis systems, the Double Motor Module variants (such as the 6SL3120-2TE21-0AA3 or 6SL3120-2TE13-0AA3) used on lower-power axes in the same cabinet should be inspected for thermal stress, especially if the failed 200A module was running at high duty cycles that elevated cabinet ambient temperature. Finally, review the terminal block assemblies and cabinet wiring harnesses — heat cycling and vibration can loosen connections on PE terminals and signal wiring, contributing to ground fault alarms and erratic drive behavior.

A structured preventive maintenance checklist covering all of these components — motor module, line module, control unit, DRIVE-CLiQ cables, SMC, SITOP supply, and wiring — executed on an annual or biannual basis will dramatically reduce unplanned downtime and extend the operational life of legacy S120 installations well beyond their nominal design horizon.

Strategic Replacement Solutions

The 6SL3120-1TE32-0AA3 has been in production for multiple generations of SINAMICS S120 Booksize deployments, and many installations using this module are now operating in the 10–20 year range. Siemens’ modular architecture means that a direct replacement with an original 6SL3120-1TE32-0AA3 unit is the lowest-risk, fastest path to restoring production — no parameter re-engineering, no mechanical adaptation, no firmware compatibility risk.

For facilities managing aging S120 systems, maintaining at least one spare 6SL3120-1TE32-0AA3 on-site is a standard recommendation from industrial maintenance best practice frameworks. The cost of a single unplanned production stoppage — in lost output, emergency logistics, and technician overtime — typically exceeds the cost of a spare module by a factor of ten or more. Procurement teams should evaluate the criticality of each axis driven by this module and size their spare inventory accordingly: high-criticality single-axis applications warrant a dedicated hot spare, while multi-axis systems with redundancy may operate with a shared pool spare strategy.

When the original 6SL3120-1TE32-0AA3 is no longer available through standard distribution channels, TOPNLMS maintains stock sourced from verified industrial channels, enabling customers to extend the operational life of their existing S120 infrastructure without committing to a full drive system upgrade. This is particularly valuable for facilities where a drive upgrade would require re-commissioning, safety re-certification, or mechanical modifications to the machine — all of which carry significant cost and schedule risk.

All units supplied by TOPNLMS are tested prior to shipment for basic electrical integrity and are accompanied by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Expedited shipping options are available for breakdown emergencies.
