Siemens 6SL3120-1TE28-5AA3 Ruggedized Motor Module Harsh Env

Product Overview

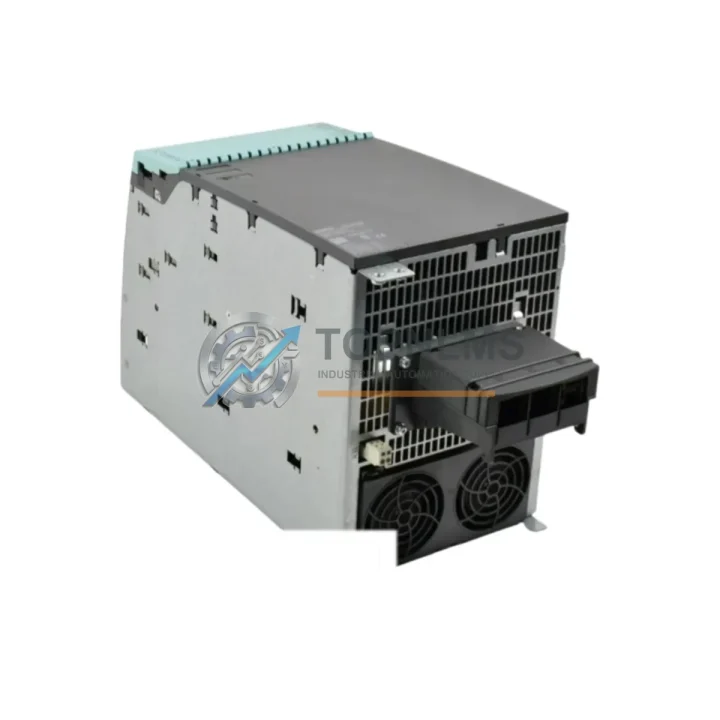

Siemens 6SL3120-1TE28-5AA3 Ruggedized Motor Module for Harsh Industrial Environments

The Siemens 6SL3120-1TE28-5AA3 is a high-performance Single Motor Module within the SINAMICS S120 Booksize drive family, rated at 85A continuous output current. Engineered to Germany’s exacting industrial standards, this module delivers unwavering drive performance in the most demanding production environments — from high-temperature steel mills and dusty mining galleries to vibration-intensive offshore platforms and chemically aggressive water treatment facilities. Its robust booksize form factor integrates seamlessly into standardized control cabinet architectures, enabling compact, scalable multi-axis drive systems without compromising on protection or throughput.

At the core of the SINAMICS S120 architecture, the 6SL3120-1TE28-5AA3 operates in close coordination with the SINAMICS S120 Control Unit CU320-2 DP or CU320-2 PN, receiving torque and speed setpoints via the DRIVE-CLiQ high-speed communication backbone. This deterministic, low-latency link eliminates encoder signal degradation even in environments saturated with electromagnetic interference (EMI) from large induction motors, welding equipment, or high-frequency inverters. In multi-axis configurations, the module shares a common DC bus with companion booksize modules such as the 6SL3120-1TE21-0AA3 (10A) and 6SL3120-1TE24-5AA3 (45A), allowing regenerative energy from decelerating axes to be redistributed across the drive line — a critical efficiency feature in continuous rolling mills and press lines.

Power supply integrity is maintained by the SINAMICS S120 Active Line Module (e.g., 6SL3130-7TE28-0AA3), which provides a regulated, clean DC bus voltage and active front-end power factor correction. This upstream conditioning is essential when the 6SL3120-1TE28-5AA3 drives high-inertia loads such as extruder screws, centrifugal compressors, or heavy conveyor systems where sudden load transients could otherwise destabilize the bus. The module’s integrated Safe Torque Off (STO) safety function — certified to SIL 2 / PLd per IEC 62061 and EN ISO 13849-1 — allows the drive to be safely de-energized without removing main power from the cabinet, dramatically reducing machine downtime during maintenance windows on continuous production lines.

In harsh-environment deployments, the 6SL3120-1TE28-5AA3 is typically mounted within a sealed, climate-controlled control cabinet alongside SIMATIC S7-300 or S7-1500 PLC racks, ET 200SP distributed I/O modules, and SITOP PSU8600 power supply units. The SITOP supply provides a stable 24 VDC control voltage rail, ensuring that the drive’s logic and communication circuits remain operational even during brief mains fluctuations common in heavy industrial substations. Terminal connections are managed through SIEMENS SIRIUS 8WA terminal blocks and shielded cable glands rated for IP65 or higher, preventing moisture ingress and particulate contamination from compromising signal integrity.

For applications requiring functional safety beyond STO — such as Safe Stop 1 (SS1), Safe Operating Stop (SOS), or Safely Limited Speed (SLS) — the module interfaces with the SINAMICS S120 Safety Integrated Extended Functions via the CU320-2 control unit, eliminating the need for external safety relays and reducing wiring complexity in the cabinet. In oil and gas installations where ATEX or IECEx zone compliance is required, the drive is installed in purged and pressurized enclosures (Ex p), with the 6SL3120-1TE28-5AA3 serving as the certified drive component inside the protected zone. Communication to the plant DCS — typically a Siemens SIMATIC PCS 7 or third-party system — is routed through PROFIBUS DP or PROFINET IO adapters, with the drive appearing as a standard GSD/GSDML device for seamless integration into existing network topologies.

Replacement and spare-parts logistics are a primary concern for plant engineers managing aging SINAMICS S120 installations. The 6SL3120-1TE28-5AA3 is a direct form-fit-function replacement for earlier 85A booksize motor modules within the S120 generation, requiring no firmware re-parameterization when swapped into an existing drive line with a compatible CU firmware version. TOPNLMS maintains verified stock of this module, with each unit undergoing pre-shipment functional testing — including DC bus charge/discharge cycling, DRIVE-CLiQ enumeration verification, and STO channel integrity checks — before dispatch. All units are shipped in anti-static, shock-absorbing packaging with full traceability documentation.

Rugged Specifications Table

Comprehensive Protection Solutions

A reliable drive system is never a single component — it is an ecosystem of interdependent protection, control, power, and communication elements working in concert. The 6SL3120-1TE28-5AA3 anchors the power conversion stage, but its operational integrity depends on the surrounding architecture. Upstream, the SINAMICS S120 Active Line Module 6SL3130-7TE28-0AA3 conditions the DC bus and suppresses mains-borne transients before they can reach the motor module’s IGBT bridge. Downstream, SIEMENS SIMOTICS servo motors — such as the 1FK7 or 1FT7 series — connect via shielded power cables and DRIVE-CLiQ encoder cables, maintaining closed-loop position accuracy even in high-vibration environments.

Within the same control cabinet, SIMATIC ET 200SP HA distributed I/O modules handle field-level digital and analog signals, feeding process data to the SIMATIC S7-1500 PLC over PROFINET. The PLC’s motion control library issues velocity and torque commands to the CU320-2 PN, which in turn orchestrates the 6SL3120-1TE28-5AA3 in real time. Cabinet power distribution is managed by SITOP PSU8600 modular power supplies, which provide redundant 24 VDC rails with selective current limiting — ensuring that a short circuit on one I/O branch cannot collapse the control voltage for the entire drive system. SIRIUS 3RV2 motor protection circuit breakers provide upstream overcurrent and short-circuit protection for auxiliary motors and fan circuits within the same enclosure.

For communication resilience in environments with high EMI — such as arc furnace bays or large variable-speed pump stations — SCALANCE X industrial Ethernet switches with conformal-coated PCBs maintain PROFINET ring redundancy (MRP), ensuring that a single cable fault does not interrupt drive commands. Where legacy PROFIBUS DP infrastructure exists, SIMATIC DP/PA couplers bridge the fieldbus segments without introducing latency spikes that could trigger drive fault responses. This layered protection architecture — spanning power conditioning, motion control, I/O, safety, and communications — is what transforms the 6SL3120-1TE28-5AA3 from a standalone module into a cornerstone of a fault-tolerant industrial drive system.

Application in Critical Infrastructure

The Siemens 6SL3120-1TE28-5AA3 has established a proven track record across the most demanding sectors of critical infrastructure. In oil and gas upstream and midstream facilities, it drives compressor trains and pipeline booster pumps where unplanned downtime translates directly into production loss and safety risk. Its STO safety function satisfies the emergency stop requirements of IEC 61511 functional safety management systems, allowing integration into SIL-rated safety instrumented systems without additional external safety relays.

In mining and mineral processing, the module powers conveyor drives, ball mill drives, and flotation cell agitators in environments characterized by extreme dust loading, ground vibration from blasting, and wide ambient temperature swings. The SINAMICS S120 architecture’s ability to share regenerative braking energy across a common DC bus is particularly valuable in downhill conveyor applications, where the regenerated energy from loaded descending conveyors offsets the motoring energy of empty ascending conveyors — reducing net energy consumption by up to 30%.

Power generation and transmission applications leverage the 6SL3120-1TE28-5AA3 in auxiliary drive systems for cooling water pumps, induced draft fans, and fuel feed conveyors at thermal power stations. The module’s compliance with EN 61800-3 EMC standards ensures it does not introduce harmonic disturbances into the plant’s sensitive protection and metering circuits. In water and wastewater treatment, it controls high-duty-cycle pump drives and aeration blowers that must operate continuously for months without intervention, relying on the module’s robust thermal management and predictive diagnostics via SINAMICS Startdrive commissioning software to flag potential issues before they cause process interruptions.

In metallurgy and heavy manufacturing — rolling mills, continuous casting lines, and large press installations — the 6SL3120-1TE28-5AA3 delivers the dynamic torque response and speed regulation accuracy that these processes demand. Coordinated multi-axis control via the CU320-2 ensures that tension control across a rolling mill stand remains within ±0.1% even during strip threading and tail-out sequences, preventing cobbles and surface defects that would result in costly scrap.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
All 6SL3120-1TE28-5AA3 units supplied by TOPNLMS carry a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund after fault verification. Each unit is individually serialized and logged in our quality management system, enabling full traceability from our warehouse to your site.

Q2: What pre-shipment testing is performed on each unit?
Every module undergoes a structured pre-shipment inspection protocol that includes: visual inspection for physical damage and connector integrity; DC bus capacitor charge/discharge cycling to verify capacitor health; DRIVE-CLiQ interface enumeration test to confirm communication readiness; STO channel functional test (both channels independently); and firmware version verification against Siemens compatibility matrices. A test report is available upon request.

Q3: Is the 6SL3120-1TE28-5AA3 compatible with my existing SINAMICS S120 installation?
Yes — provided your existing system uses a compatible CU320-2 or CU310-2 control unit with firmware version V4.7 or later, the 6SL3120-1TE28-5AA3 is a direct plug-in replacement for any 85A booksize motor module slot in your drive line. No hardware modifications are required. Parameter sets stored on the control unit’s CompactFlash card are automatically applied to the replacement module upon first power-up via DRIVE-CLiQ auto-configuration. If you are unsure about firmware compatibility, our technical team can advise based on your existing system’s order numbers.

Q4: Can TOPNLMS guarantee long-term supply continuity for this module?
TOPNLMS maintains a dedicated inventory buffer of high-demand SINAMICS S120 modules, including the 6SL3120-1TE28-5AA3, to support customers with long-term maintenance contracts and planned spare-parts programs. We work with verified supply chain partners to ensure availability even as Siemens transitions product generations. For customers requiring guaranteed annual supply volumes, we offer forward-purchase agreements with price protection. Contact us at [email protected] to discuss your spare-parts strategy.
