Siemens 6SL3120-1TE24-5AA3 Original S120 Motor Module — Industrial Spare for System Stability

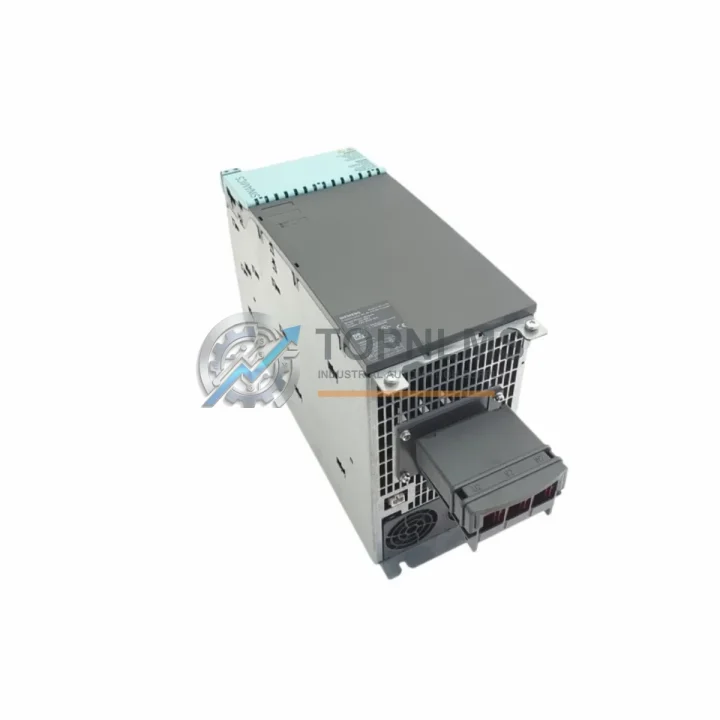

The Siemens 6SL3120-1TE24-5AA3 is a genuine SINAMICS S120 Single Motor Module rated at 45A in the compact Booksize form factor. Designed for demanding industrial drive applications, this module delivers precise torque and speed control for AC servo and induction motors across continuous production environments. As an original spare part, it is the definitive replacement choice for maintenance engineers seeking to restore full drive performance without system reconfiguration or compatibility risk.

In high-availability manufacturing facilities — including automotive assembly lines, paper mills, printing presses, and precision machine tool operations — unplanned drive failures translate directly into costly production downtime. Holding a verified stock of the 6SL3120-1TE24-5AA3 as a critical spare ensures that when a motor module fault occurs, replacement can be completed within a single maintenance window, restoring the axis to full operation without waiting weeks for procurement.

Critical Technical Specs Table

Preventive Maintenance Strategy

A motor module replacement is rarely an isolated event. When the 6SL3120-1TE24-5AA3 is flagged for replacement during a scheduled shutdown or emergency repair, experienced maintenance teams use the opportunity to inspect and refresh the surrounding drive system components to prevent cascading failures.

The S120 Booksize drive train begins with the Active Line Module (ALM) — such as the 6SL3130-7TE28-4AA3 — which rectifies and stabilizes the DC bus voltage shared by all motor modules in the cabinet. A degraded ALM can cause DC link fluctuations that stress motor modules prematurely, so its capacitors and cooling fans should be inspected whenever a motor module is replaced. Alongside the ALM, the Braking Module (e.g., 6SL3100-1BE31-0AA0) and its braking resistor should be checked for thermal wear, particularly in applications with frequent deceleration cycles such as hoists or winders.

The DRIVE-CLiQ hub module (e.g., 6SL3162-2BM00-0AA0) distributes the DRIVE-CLiQ communication topology across all S120 components. A faulty hub can generate intermittent axis faults that are difficult to diagnose and are sometimes misattributed to the motor module itself. Replacing or verifying the hub during a motor module swap eliminates this diagnostic ambiguity.

The Control Unit CU320-2 DP or CU320-2 PN is the intelligence of the S120 system. Its CompactFlash card holds the drive project and firmware; a backup of this card should be taken before any module replacement and verified post-commissioning. The Sensor Module Cabinet-Mounted (SMC30), used for encoder signal conditioning, should also be inspected — a failing SMC30 can cause speed feedback errors that appear as motor module overcurrent faults.

At the cabinet wiring level, the 24 V DC power supply module (such as the SITOP PSU100S 6EP1334-2BA20) that powers the control electronics should be load-tested. Voltage sag on the 24 V rail is a common root cause of unexplained drive trips. Similarly, the terminal block assemblies and shield connection clamps on the motor power cables should be re-torqued and inspected for corrosion, as loose connections generate heat and EMI that degrade module longevity.

For multi-axis systems, it is best practice to stock at least one spare Double Motor Module (e.g., 6SL3120-2TE24-5AA3) alongside the single motor module, as the two share identical DC bus and DRIVE-CLiQ interfaces and can cover multiple axes in an emergency. Completing the spare parts kit with a set of SINAMICS S120 Booksize power bus connectors and a spare CompactFlash card pre-loaded with the drive project ensures the fastest possible recovery time.

Strategic Replacement Solutions

The 6SL3120-1TE24-5AA3 is a direct replacement for earlier S120 Booksize motor module variants operating at the same current rating. Because it uses the standard DRIVE-CLiQ plug-and-play commissioning protocol, replacement does not require manual parameter re-entry when the Control Unit’s project file is intact — the new module is recognized automatically upon power-up, dramatically reducing the time from fault to full production resumption.

For facilities still operating legacy SIMODRIVE 611 or MASTERDRIVES MC systems, the S120 platform represents a forward-compatible upgrade path. The 6SL3120-1TE24-5AA3 can be integrated into a phased modernization strategy where individual axes are upgraded one at a time, preserving the existing mechanical installation and motor wiring while delivering the performance and diagnostic capabilities of the current SINAMICS generation.

TOPNLMS supplies this module as a genuine original Siemens component, fully tested under load conditions prior to shipment. Each unit is inspected for firmware version compatibility, DRIVE-CLiQ port integrity, and thermal performance. Orders are processed within 1–2 business days, with express logistics options available for emergency breakdown situations. A 12-month warranty covers all units against manufacturing defects and functional failure under normal operating conditions.

Support FAQ

Q1: What is the warranty coverage for the 6SL3120-1TE24-5AA3?
All units supplied by TOPNLMS carry a 12-month warranty from the date of shipment. Each module is functionally tested before dispatch. In the event of a warranty claim, we provide rapid replacement to minimize your downtime exposure.

Q2: How do I verify compatibility with my existing S120 system before ordering?
The 6SL3120-1TE24-5AA3 is compatible with all SINAMICS S120 Booksize drive line-ups using CU320-2 or CU310-2 Control Units running firmware V4.x and above. If you are unsure of your system’s firmware version or topology, contact us with your existing module’s order number and we will confirm compatibility before shipment.

Q3: Can this module replace an older S120 Booksize motor module with a different article number?
Yes, provided the rated output current (45A) and DC link voltage match your application requirements. The DRIVE-CLiQ interface ensures automatic recognition by the Control Unit. We recommend backing up your drive project to the CompactFlash card before replacement and performing a function test on the axis after installation.

Q4: What is your recommended spare parts stocking strategy for S120 Booksize systems?
For critical production lines, we recommend holding at minimum one motor module per unique current rating in use, one spare Control Unit with a pre-configured CompactFlash card, and one spare SITOP 24 V power supply. For multi-axis systems with four or more axes, a spare Active Line Module is also advisable. TOPNLMS can assist with a tailored spare parts list based on your installed base.
