Siemens 6SL3120-1TE21-8AA3 Original Industrial Spare S120 Compatible

Product Overview

Siemens 6SL3120-1TE21-8AA3 Original Industrial Spare S120 Compatible: System Stability & Industrial Spare Parts Maintenance Value

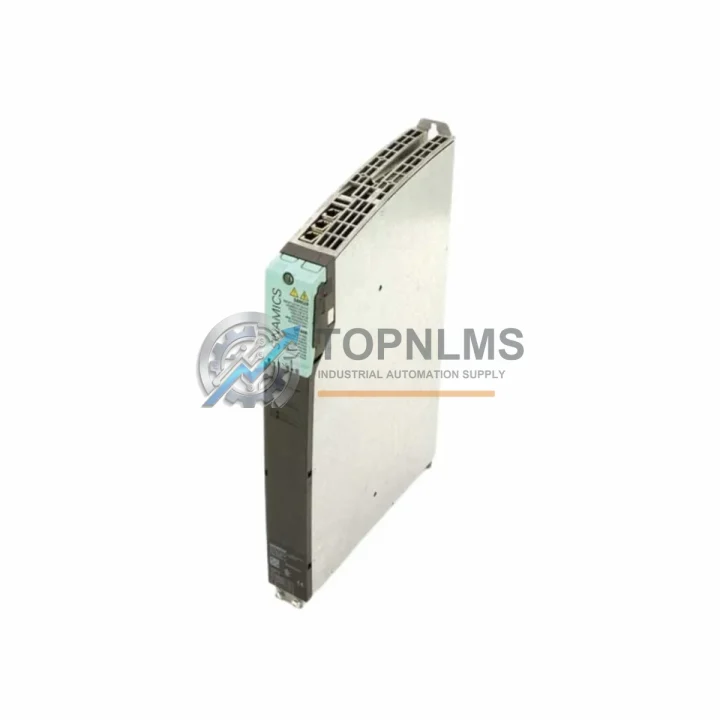

The Siemens 6SL3120-1TE21-8AA3 is a SINAMICS S120 Single Motor Module rated at 18A in Booksize format — a precision drive component engineered for demanding industrial servo and vector control applications. In modern manufacturing environments, the reliability of your drive system is directly tied to production uptime. When a motor module fails or degrades, the consequences extend far beyond a single axis: coordinated multi-axis lines halt, safety interlocks trigger, and unplanned downtime accumulates rapidly. Stocking this module as a verified original spare is one of the most cost-effective decisions a maintenance team can make.

This module integrates seamlessly into the SINAMICS S120 Booksize drive line-up, operating in conjunction with a Line Module (Active Line Module or Smart Line Module) and sharing the DC bus architecture that defines the S120 platform. Its 18A output current rating makes it well-suited for mid-range servo axes — typical in CNC machining centers, packaging lines, printing presses, textile machinery, and automated assembly systems. The compact Booksize form factor allows dense cabinet installation, reducing panel footprint while maintaining full drive performance.

For maintenance engineers managing aging S120 installations, the 6SL3120-1TE21-8AA3 represents a direct, drop-in replacement that preserves all existing wiring, parameter sets, and safety configurations. There is no need to re-engineer the cabinet or retrain operators — the module slots in, parameters are restored from the SIMATIC S7 or STARTER/Startdrive project, and the axis is back online. This compatibility advantage is critical in facilities where legacy system continuity is a strategic priority.

Critical Technical Specs

Preventive Maintenance Strategy

A motor module replacement is rarely an isolated event. In a SINAMICS S120 Booksize cabinet, the drive components share a common DC bus and communicate over DRIVE-CLiQ — meaning a fault in one module can cascade across the entire drive group. When scheduling maintenance around the 6SL3120-1TE21-8AA3, experienced engineers treat the intervention as an opportunity to audit the full drive assembly.

Begin with the Active Line Module (ALM) or Smart Line Module (SLM) that feeds the DC bus. These upstream modules condition the supply voltage and regulate regenerative energy — if the line module is aging or showing thermal stress, replacing the motor module alone will not resolve intermittent faults. Inspect the DRIVE-CLiQ cables connecting the CU320-2 Control Unit to each motor module; these signal cables are a common source of communication errors (F07900 series faults) and should be replaced if connectors show wear or contamination.

The CU320-2 DP or CU320-2 PN Control Unit itself should be checked for firmware currency and memory card integrity. If the control unit is running firmware older than the motor module’s supported version, parameter incompatibilities can prevent commissioning. Alongside the control unit, verify the Sensor Module Cabinet-Mounted (SMC) units that interface with motor encoders — a faulty SMC30 or SMC20 will generate encoder faults that mimic motor module failures.

At the cabinet level, inspect the 24V DC power supply module (such as the SITOP PSU series) that powers the control electronics. Voltage sags on the 24V rail are a leading cause of unexpected drive trips and DRIVE-CLiQ communication losses. Check terminal blocks and bus bar connections for oxidation or loose torque — particularly on the DC bus connectors between Booksize modules, where high current flow accelerates contact degradation.

For facilities running mixed servo and spindle axes, also review the Double Motor Module units (e.g., 6SL3120-2TE21-8AA3 series) sharing the same cabinet section. A thermal imbalance between single and double motor modules can indicate airflow obstruction — clean or replace the cabinet fan units and check that module spacing meets Siemens installation clearance requirements.

Finally, if the system includes a Braking Module and braking resistor, verify resistor condition and thermal cutout integrity. Regenerative braking loads are highest during emergency stops and rapid deceleration cycles — a degraded braking resistor will cause DC bus overvoltage faults that are often misattributed to the motor module. Addressing these surrounding components during a planned 6SL3120-1TE21-8AA3 replacement maximizes the value of the maintenance window and significantly reduces the probability of a repeat callout.

Strategic Replacement Solutions

The 6SL3120-1TE21-8AA3 supersedes earlier SIMODRIVE and MASTERDRIVES MC motor module variants in many retrofit scenarios. Facilities that originally installed first-generation S120 Booksize drives in the early 2000s are now encountering end-of-life component availability challenges. The 6SL3120-1TE21-8AA3 (AA3 revision) represents the current production standard, incorporating updated IGBT technology, improved thermal management, and enhanced DRIVE-CLiQ diagnostics compared to earlier AA0 and AA1 revisions.

For maintenance planners, this means a single SKU can serve as the replacement target for multiple legacy part numbers — simplifying spare parts inventory and reducing the number of line items that must be tracked and reordered. Rather than maintaining separate stock for AA0, AA1, and AA2 variants, consolidating on the AA3 revision reduces carrying costs while ensuring forward compatibility with current STARTER and Startdrive commissioning software.

In multi-vendor environments where Siemens drives operate alongside other automation platforms, the S120’s open PROFIBUS DP and PROFINET IO interfaces allow integration without replacing the host controller. This makes the 6SL3120-1TE21-8AA3 a viable replacement even in facilities that have migrated their PLC infrastructure to non-Siemens platforms — the drive axis continues to operate under its existing parameterization while the host controller communicates via standard fieldbus protocols.

All units supplied by TOPNLMS are sourced as original Siemens components, individually tested for electrical integrity prior to shipment, and covered by a 12-month warranty. Shipment is supported globally with full documentation, and technical support is available for commissioning queries.

Support FAQ

Q1: Is the 6SL3120-1TE21-8AA3 compatible with my existing S120 Booksize cabinet without hardware modification?
Yes. The AA3 revision is a direct form-fit-function replacement for earlier AA-series Single Motor Modules in the 18A rating. Existing DC bus connectors, DRIVE-CLiQ ports, motor power terminals, and mounting positions are unchanged. Parameters can be restored from your existing project file via STARTER or Startdrive without re-commissioning the axis from scratch.

Q2: What pre-shipment testing is performed on this module?
Each unit undergoes electrical continuity verification, insulation resistance testing, and functional power-on checks before dispatch. Units that do not meet Siemens original specification thresholds are not shipped. A test report is available upon request for quality-critical procurement processes.

Q3: How should I manage spare parts inventory for a multi-axis S120 installation?
Best practice for facilities with 4 or more S120 axes is to maintain at least one 18A Single Motor Module as a hot spare. For installations with mixed current ratings, prioritize stocking the most common rating first. Pairing the motor module spare with a spare DRIVE-CLiQ cable set and a 24V PSU module covers the majority of unplanned drive failure scenarios without excessive inventory investment.
