Siemens 6SL3120-1TE13-0AD0 Ruggedized Single Motor Module

Product Overview

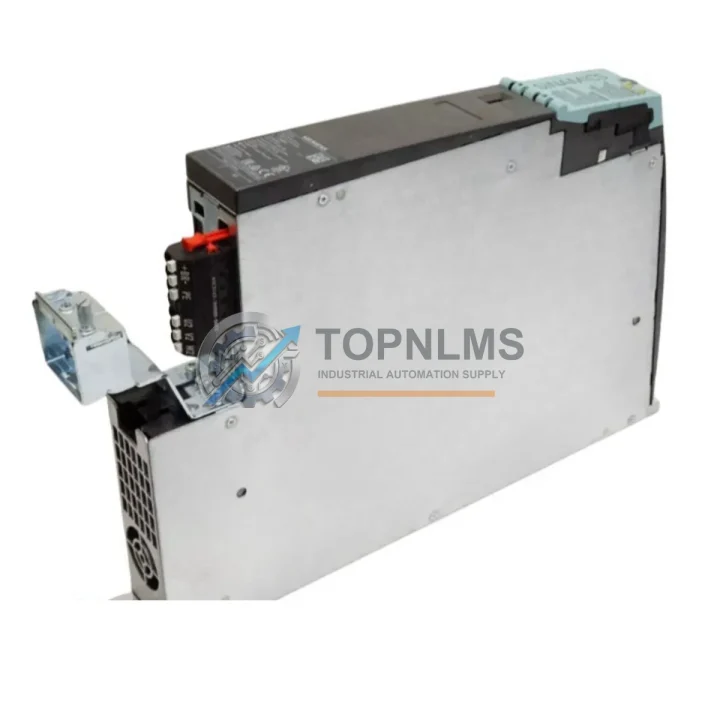

Siemens 6SL3120-1TE13-0AD0 Ruggedized Single Motor Module: Industrial Resilience for Harsh Environments

The Siemens 6SL3120-1TE13-0AD0 is a Booksize Single Motor Module from the SINAMICS S120 drive system — engineered for precise, reliable motor control in the most demanding industrial environments. Rated at 3 A continuous output current, this module integrates seamlessly into the SINAMICS S120 multi-axis drive architecture, delivering deterministic torque and speed regulation for servo and vector-controlled applications where unplanned downtime is simply not an option.

Built to withstand continuous operation in environments characterized by elevated ambient temperatures, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference, the 6SL3120-1TE13-0AD0 upholds Siemens’ stringent quality standards for industrial-grade power electronics. Its compact Booksize form factor enables dense installation within control cabinets, reducing panel footprint without compromising thermal performance or electrical isolation integrity.

For procurement engineers and maintenance managers sourcing replacement or expansion components for existing SINAMICS S120 installations, TOPNLMS maintains dedicated stock of this module with pre-shipment functional testing, 12-month warranty coverage, and rapid dispatch from our Xiamen warehouse to global destinations.

Rugged Specifications Table

Comprehensive Protection Solutions

The 6SL3120-1TE13-0AD0 Single Motor Module is designed to operate as part of a fully coordinated SINAMICS S120 drive system, where each component plays a defined role in maintaining system-wide protection and uptime. The SINAMICS S120 Active Line Module (6SL3130 series) provides regulated DC bus power with active front-end rectification, suppressing harmonic disturbances that could otherwise destabilize sensitive servo axes sharing the same DC link. During rapid deceleration cycles, a SINAMICS S120 Braking Module (6SL3100 series) safely dissipates regenerative energy, protecting the DC link from overvoltage events common in high-inertia applications such as centrifuges and winding machines.

The SINAMICS S120 Control Unit CU320-2 DP or CU320-2 PN orchestrates all motor modules via the high-speed DRIVE-CLiQ communication interface, enabling real-time closed-loop control with microsecond cycle times. Alongside the motor module, SINAMICS S120 Sensor Modules SMC20 and SME20 decode encoder feedback from attached servo motors, ensuring accurate position and speed data even in high-vibration environments. For applications requiring functional safety certification, the SINAMICS S120 Safety Integrated functions — including STO (Safe Torque Off), SS1 (Safe Stop 1), and SLS (Safely Limited Speed) — are activated directly within the drive without external safety relays, reducing wiring complexity and failure points inside the control cabinet.

Stable 24 V DC auxiliary power to the control electronics, I/O modules, and communication gateways is supplied by SITOP PSU8600 series industrial power supplies, which maintain regulated output even under mains fluctuations common in heavy industrial facilities. Field-level signal acquisition is handled by SIMATIC ET 200SP distributed I/O modules, connecting sensors, actuators, and safety devices back to the SIMATIC S7-1500 PLC that supervises the overall production sequence. Terminal modules, shield connection clamps, and PE bus bars from the SIMATIC S7-1500 TM range complete the cabinet wiring, ensuring low-impedance grounding paths critical for EMC compliance when multiple variable-frequency drives operate simultaneously in the same enclosure.

In installations where communication redundancy is required, the SINAMICS S120 Communication Board CBC10 extends the drive’s connectivity to CANopen networks, while the CBE20 option board enables PROFINET IRT integration for isochronous real-time motion control. These communication modules, combined with the 6SL3120-1TE13-0AD0’s native DRIVE-CLiQ interface, create a fully transparent drive topology that supports remote diagnostics, predictive maintenance scheduling, and rapid fault localization — all without interrupting production.

Application in Critical Infrastructure

The Siemens 6SL3120-1TE13-0AD0 is deployed across a broad spectrum of critical industrial infrastructure where motor drive reliability directly impacts production continuity and personnel safety. In oil and gas processing facilities, this module controls compressor drives and pump stations operating in classified hazardous zones, where any unplanned drive fault can trigger costly emergency shutdowns and safety system activations. Its robust EMC shielding and DRIVE-CLiQ-based diagnostics allow maintenance teams to monitor drive health remotely, reducing the need for personnel entry into restricted areas.

In metallurgical and steel rolling mills, the module manages servo axes on rolling stands and coiler drives that experience extreme mechanical shock, vibration, and thermal cycling. The module’s wide DC link voltage tolerance and integrated overcurrent protection ensure stable torque delivery even during sudden load transients caused by billet entry or strip breaks. Mining and mineral processing operations rely on this module for conveyor drive control and crusher positioning systems, where dust ingress, high ambient temperatures, and continuous 24/7 duty cycles demand components with proven long-term reliability and a clear spare-parts supply chain.

In power generation and utilities — including wind turbine pitch control systems and hydroelectric governor drives — the 6SL3120-1TE13-0AD0 provides the precise angular positioning required for grid-synchronization sequences. Water and wastewater treatment plants use this module in pump and blower drive systems where variable-speed operation reduces energy consumption while maintaining process stability across seasonal load variations. In pharmaceutical and food processing facilities, where hygienic design and process repeatability are paramount, the module’s deterministic speed control supports validated production processes that must meet regulatory traceability requirements.

Across all these sectors, the module’s compatibility with Siemens’ TIA Portal engineering framework enables rapid commissioning, standardized diagnostics, and seamless integration into existing SIMATIC-based control architectures — significantly reducing the engineering effort required for both new installations and retrofit projects on aging drive systems.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the 6SL3120-1TE13-0AD0?
All units supplied by TOPNLMS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed with priority technical support, and replacement units are dispatched from our Xiamen warehouse to minimize your downtime. Warranty documentation is provided with every shipment for your maintenance records.

Q2: How is each unit tested before shipment?
Every 6SL3120-1TE13-0AD0 undergoes a multi-stage pre-shipment inspection including visual examination for physical damage, power-on functional verification, DRIVE-CLiQ communication handshake testing, and output current measurement against Siemens’ original performance specifications. Units that do not pass all inspection criteria are quarantined and not offered for sale. A test report is available upon request for quality-critical procurement programs.

Q3: Is this module compatible with my existing SINAMICS S120 system?
Yes. The 6SL3120-1TE13-0AD0 is a standard Booksize Single Motor Module fully compatible with all SINAMICS S120 Booksize power sections, Control Units (CU320-2 DP/PN), and DRIVE-CLiQ topology. It is a direct drop-in replacement for worn or failed units in existing S120 multi-axis configurations without requiring firmware changes, provided the Control Unit firmware meets Siemens’ minimum compatibility requirements for this module generation. TOPNLMS technical staff can advise on firmware compatibility for your specific installation.

Q4: Can TOPNLMS support long-term and repeat procurement for this module?
Yes. TOPNLMS maintains dedicated stock of high-demand SINAMICS S120 components — including Single Motor Modules, Double Motor Modules, Active Line Modules, Braking Modules, and Control Units — to support both emergency replacement and planned maintenance procurement programs. We offer volume pricing, lead-time commitments, and technical consultation for OEM integrators and end-user maintenance teams managing large installed bases of Siemens drive systems across multiple facilities.
