Siemens 6SL3055-0AA00-3AA1 Original Industrial Spare S120 Compatible: System Stability and Industrial Spare Parts Maintenance Value

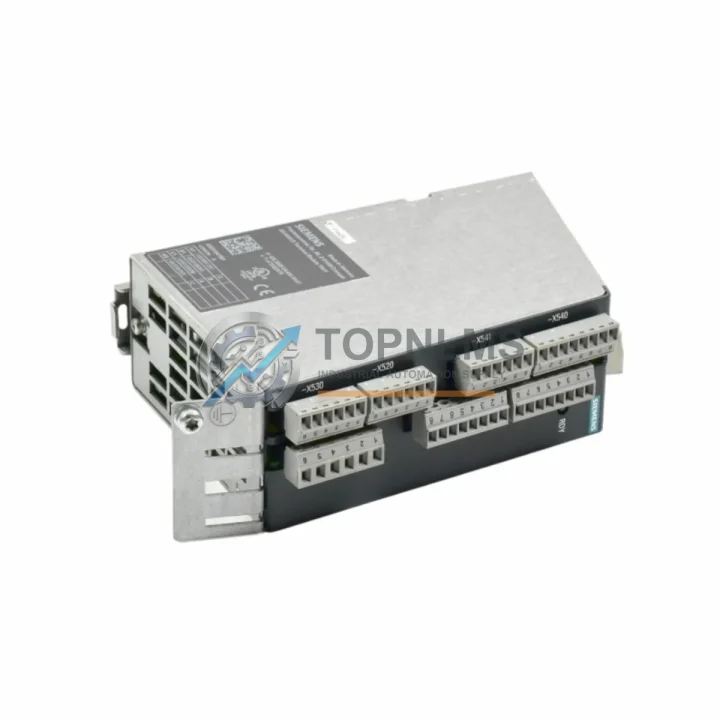

The Siemens 6SL3055-0AA00-3AA1 is an original TM31 Terminal Module designed for the SINAMICS S120 drive system — one of Siemens’ most widely deployed servo and vector drive platforms in industrial automation. As a dedicated terminal expansion module, the TM31 provides additional analog and digital I/O channels that extend the signal interface capability of the S120 Control Unit (CU320-2 or CU310-2), enabling precise process control, feedback integration, and safe operational signaling across demanding production environments.

In factory maintenance operations, the TM31 is a critical node in the drive cabinet. It handles analog input/output signals for speed references, torque feedback, and temperature monitoring, while its digital I/O channels manage enable signals, fault acknowledgments, and interlock logic. When this module fails or degrades, the entire drive axis loses its signal interface — resulting in unplanned downtime, production loss, and costly emergency procurement. Stocking the 6SL3055-0AA00-3AA1 as a verified spare eliminates this risk entirely.

Critical Technical Specs Table

Preventive Maintenance Strategy

A structured preventive maintenance program for SINAMICS S120 drive systems should treat the TM31 Terminal Module as part of a broader cabinet-level inspection cycle. During scheduled shutdowns or annual drive audits, maintenance engineers should simultaneously inspect and — where age or wear warrants — replace the following components to avoid cascading failures after the primary repair:

The Drive-CLiQ cable connecting the TM31 to the CU320-2 Control Unit is a frequent source of intermittent faults; cable shielding degradation or connector oxidation can cause sporadic I/O errors that are difficult to diagnose without substitution. Alongside this, the 24 V DC power supply module (such as the Siemens 6EP1333 series or equivalent SITOP PSU) feeding the TM31 and associated I/O should be load-tested, as voltage ripple or sag under load can corrupt analog signal accuracy.

The CU320-2 DP Control Unit (6SL3040-1MA01-0AA0) and its CompactFlash card containing the drive firmware and parameter set should be verified for firmware version compatibility with the replacement TM31. Mismatched firmware versions between the Control Unit and Terminal Module are a common post-replacement fault trigger. If the system uses a Sensor Module Cabinet-Mounted SMC30 (6SL3055-0AA00-2AA0) for encoder feedback, its Drive-CLiQ connection and encoder cable should be inspected at the same time.

For multi-axis S120 booksize configurations, the Line Module (Active Line Module or Basic Line Module) DC bus connections and the Motor Module (6SL3120 series) power stage should be thermally inspected — capacitor aging in these modules often accelerates when I/O signal faults cause repeated drive trips and restarts. The terminal block wiring on the TM31’s X521/X522 connectors should be re-torqued to specification, as vibration-induced loosening is a leading cause of analog signal drift in high-cycle applications.

Where the S120 system interfaces with a SIMATIC S7-300 or S7-1500 PLC via PROFIBUS DP or PROFINET, the CP 343-1 or CP 1543-1 communication processor and associated network switches should be included in the inspection scope. Signal integrity between the PLC and the drive’s telegram configuration (e.g., Telegram 111 for vector control) depends on stable network infrastructure. Finally, fuse modules and circuit breakers in the 24 V DC distribution rail feeding the TM31 and I/O tier should be tested for contact resistance and replaced on a 5–7 year cycle regardless of apparent condition.

Strategic Replacement Solutions

The 6SL3055-0AA00-3AA1 is a direct, plug-and-play replacement for any TM31 module within the SINAMICS S120 ecosystem. Because the TM31 communicates exclusively via Drive-CLiQ — Siemens’ proprietary digital drive interface — the replacement process requires no analog signal recalibration: the Control Unit automatically identifies the new module, reads its electronic nameplate, and restores the parameter assignment from the stored drive project.

For facilities managing legacy S120 installations originally commissioned before 2015, the TM31 is often the first module to reach end-of-reliable-life due to its exposure to ambient heat, vibration, and continuous I/O cycling. Replacing a degraded TM31 proactively — rather than reactively after a production stoppage — typically reduces unplanned downtime by eliminating the 24–72 hour emergency procurement window. Facilities with multiple S120 axes should consider maintaining a minimum of one TM31 spare per five drive axes as a baseline inventory policy.

The 6SL3055-0AA00-3AA1 is fully compatible with all SINAMICS S120 booksize and chassis format systems running firmware V4.4 and above. It does not require a hardware revision match to the outgoing module, making it suitable for cross-revision replacement in mixed-vintage drive cabinets. This compatibility breadth significantly reduces the SKU complexity of a spare parts inventory program, as a single TM31 part number covers the majority of S120 installations in the field.

Each unit supplied by TOPNLMS is individually tested for Drive-CLiQ communication integrity, analog I/O accuracy, and digital channel function prior to dispatch. Units are shipped in anti-static packaging with original Siemens labeling and are accompanied by a test report. A 12-month warranty covers all functional defects from the date of receipt.
