Siemens 6SL3040-0JA02-0AA0 Ruggedized Control Unit for Harsh Environments

Product Overview

Siemens 6SL3040-0JA02-0AA0 Ruggedized Control Unit for Harsh Environments

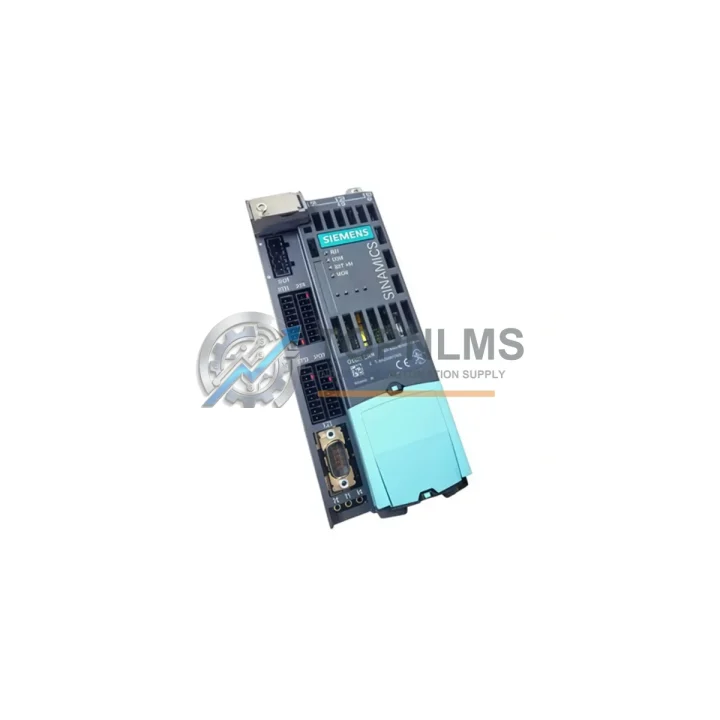

The Siemens 6SL3040-0JA02-0AA0 is the CU305 PN Control Unit for the SINAMICS S110 single-axis servo drive system — engineered to deliver uncompromising performance in the most demanding industrial environments. Designed and manufactured in Germany to Siemens’ exacting quality standards, this control unit serves as the intelligence core of the SINAMICS S110 drive, managing closed-loop servo positioning, PROFINET IO communication, and safety-integrated functions across a wide range of critical automation applications.

In high-temperature foundries, dusty cement plants, vibration-intensive mining conveyors, and electromagnetically noisy power substations, the 6SL3040-0JA02-0AA0 maintains deterministic control with no degradation in response time or communication integrity. Its robust hardware design tolerates ambient operating temperatures from 0 °C to +55 °C, withstands relative humidity up to 95% (non-condensing), and meets IEC 61800-5-1 safety requirements — making it a trusted choice for continuous production lines where unplanned downtime is not an option.

Rugged Specifications Table

Comprehensive Protection Solutions

The 6SL3040-0JA02-0AA0 CU305 PN is rarely deployed in isolation — it operates as the command center within a tightly integrated drive and control architecture. In a typical SINAMICS S110 servo axis, the CU305 PN interfaces directly with a compatible Power Module such as the Siemens 6SL3210-1SB12-3UA0 via the DRIVE-CLiQ high-speed serial link, enabling real-time torque, speed, and position feedback with microsecond-level precision. The PROFINET IO interface connects seamlessly to upstream SIMATIC S7-1500 or S7-300 PLCs, allowing the control unit to receive motion commands and report diagnostic data within a single deterministic network cycle.

For applications requiring functional safety, the CU305 PN’s integrated STO (Safe Torque Off) function can be wired directly to a Siemens SIRIUS 3SK1 safety relay or a SIMATIC ET 200SP F-DI safety input module, eliminating the need for external safety contactors and reducing panel wiring complexity. In multi-axis systems, the CU305 PN coexists on the same PROFINET segment as other SINAMICS S120 drive components, SIMATIC distributed I/O modules, and Siemens SCALANCE X208 industrial Ethernet switches — all managed through a single TIA Portal engineering environment.

Power quality and EMC protection are equally critical in harsh industrial sites. Pairing the SINAMICS S110 system with a Siemens 6SL3000-0BE23-6AA0 line filter and a 6SL3000-0CE15-0AA0 line reactor suppresses conducted emissions and protects the CU305 PN from upstream voltage transients common in heavy motor load environments. For panel-level power distribution, a Siemens SITOP PSU100S 24 V DC power supply provides the stable 24 V rail required by the control unit’s logic circuits, even during mains voltage fluctuations of ±15%. Terminal connectivity within the control cabinet is typically handled by Siemens SIRIUS ACT 3RA6 compact starter assemblies or Phoenix Contact PTFIX distribution terminal blocks, ensuring organized, vibration-resistant wiring in environments subject to continuous mechanical shock.

Where communication redundancy is required — such as in oil refinery distributed control systems — the CU305 PN’s PROFINET interface can be configured in media redundancy protocol (MRP) ring topology alongside Siemens SCALANCE XC216 managed switches, guaranteeing sub-200 ms network recovery in the event of a cable fault. This level of communication resilience is essential in continuous process industries where a single communication dropout can trigger an emergency plant shutdown.

Application in Critical Infrastructure

The Siemens 6SL3040-0JA02-0AA0 CU305 PN has established a proven track record across the most demanding sectors of critical infrastructure worldwide.

Oil & Gas: In offshore platform and onshore refinery environments, the CU305 PN controls servo-driven valve actuators and metering pump drives where SIL 2-rated STO functionality is a mandatory safety requirement. Its resistance to salt-laden humid air and its compliance with ATEX-compatible panel integration guidelines make it a preferred choice for Ex Zone 2 control cabinet installations.

Mining & Minerals: Underground conveyor belt servo tensioning systems and ore crusher feed control applications subject drive components to extreme vibration, coal dust ingress, and wide ambient temperature swings. The CU305 PN’s IEC 60068-2-6 vibration certification and sealed DRIVE-CLiQ connectors ensure continuous operation without encoder signal degradation or communication loss.

Power Generation & Utilities: In thermal power plants and hydroelectric stations, the CU305 PN manages servo-driven turbine inlet guide vane actuators and cooling water valve positioners. Its EMC Category C3 compliance ensures immunity to the high-frequency switching noise generated by large power converters and transformer inrush currents present in substation environments.

Water & Wastewater Treatment: Municipal water treatment facilities rely on precise servo positioning for chemical dosing pump drives and filter backwash valve actuators. The CU305 PN’s PROFINET connectivity integrates directly into SCADA systems, enabling remote diagnostics and predictive maintenance scheduling without requiring on-site intervention.

Metallurgy & Steel: Rolling mill and continuous casting line servo axes demand microsecond-level position control repeatability under extreme thermal loads. The CU305 PN’s DRIVE-CLiQ encoder interface supports high-resolution absolute encoders, maintaining sub-micron positioning accuracy even as ambient temperatures approach the upper operating limit.
