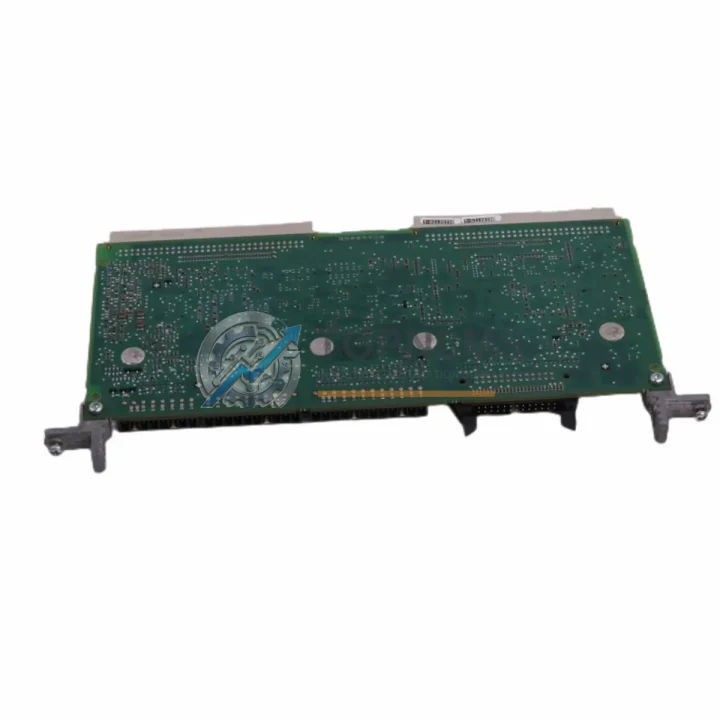

Siemens 6SE7090-0XX84-0KB0 Ruggedized Terminal Expansion Module

Product Overview

Siemens 6SE7090-0XX84-0KB0 Ruggedized Terminal Expansion Module: Industrial Resilience for Harsh Environments

The Siemens 6SE7090-0XX84-0KB0 is a terminal expansion board engineered for the SIMOVERT MASTERDRIVES 6SE70 series — one of Siemens’ most proven variable-frequency drive platforms deployed across heavy industry worldwide. Designed to extend the I/O and signal interface capabilities of the 6SE70 drive chassis, this module delivers reliable performance in environments characterized by high ambient temperatures, persistent vibration, electromagnetic interference (EMI), and airborne contaminants including dust, oil mist, and metallic particles.

In continuous production environments — from steel rolling mills and cement plants to offshore pump stations and municipal water treatment facilities — drive option modules like the 6SE7090-0XX84-0KB0 are mission-critical components. A single failed terminal board can halt an entire production line. This module’s robust construction, conformally coated PCB, and Siemens-grade connector reliability make it a trusted choice for maintenance engineers and procurement specialists who cannot afford unplanned downtime.

Rugged Specifications Table

Comprehensive Protection Solutions

The 6SE7090-0XX84-0KB0 does not operate in isolation — it is part of a tightly integrated drive and control architecture. In a typical SIMOVERT MASTERDRIVES installation, this terminal expansion board works in concert with the 6SE7090-0XX84-0FF5 technology option board and the 6SE7090-0XX84-0FA0 serial interface module to provide complete process feedback and communication capability. The drive chassis itself — such as the 6SE7016-0TA61-Z or 6SE7021-8EB61-Z compact units — relies on properly seated option boards to execute closed-loop vector control with full I/O flexibility.

For control-cabinet-level protection, the 6SE7090-0XX84-0KB0 is commonly deployed alongside Siemens SIMATIC S7-300 or S7-400 PLC systems, where the drive receives speed and torque setpoints via PROFIBUS-DP using the 6GK1500-0FC10 bus connector or a dedicated CBP2 communication board (6SE7090-0XX84-0FF5). In high-availability installations, a Siemens SITOP PSU300S industrial power supply ensures stable 24 VDC auxiliary voltage to the control electronics, preventing nuisance trips caused by voltage sags during motor starting transients.

Relay output modules — such as the Siemens 6ES7132-4HB01-0AB0 ET 200S relay slice — are often used in the same control cabinet to interface the drive’s fault and ready signals with the plant-level safety interlock system. For installations requiring functional safety, the 6SE7090-0XX84-0HF0 safety option board can be added to the same 6SE70 chassis to provide STO (Safe Torque Off) and SS1 (Safe Stop 1) functions compliant with IEC 62061 and EN ISO 13849-1.

In distributed I/O architectures, the terminal expansion board complements Siemens ET 200M remote I/O stations connected over PROFIBUS, allowing field signals from sensors, limit switches, and pressure transmitters to be routed efficiently without long cable runs back to the main control panel. This reduces wiring complexity and improves signal integrity in electrically noisy environments such as arc furnace bays or variable-speed pump houses.

Application in Critical Infrastructure

The Siemens 6SE7090-0XX84-0KB0 has established a strong track record in the most demanding sectors of critical infrastructure:

Oil & Gas: In upstream and midstream applications — compressor stations, pipeline booster pumps, and wellhead control systems — SIMOVERT MASTERDRIVES equipped with this terminal expansion board provide precise speed regulation of high-power motors in Zone 2 classified areas. The module’s ability to interface with intrinsically safe barriers and HART-capable transmitters makes it suitable for hazardous area control panels where signal integrity is non-negotiable.

Mining & Minerals Processing: Conveyor drives, ball mill motors, and slurry pump systems in underground and open-pit mining operations subject drive electronics to extreme vibration, coal dust, and wide temperature swings. The 6SE7090-0XX84-0KB0’s conformal coating and robust terminal design resist the ingress of conductive dust that would otherwise cause insulation breakdown and premature failure.

Power Generation: In thermal and hydroelectric power plants, auxiliary drive systems — boiler feed pumps, induced draft fans, cooling water pumps — run continuously for months without scheduled maintenance windows. The terminal expansion board’s long mean time between failures (MTBF) and the availability of genuine spare parts through TOPNLMS ensure that planned replacement programs can be executed without extended lead times.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on variable-speed drives to optimize energy consumption in aeration blowers, centrifugal pumps, and filter press drives. The 6SE7090-0XX84-0KB0 enables precise analog setpoint control and digital status feedback, supporting SCADA integration and remote monitoring via PROFIBUS or USS protocol.

Metallurgy & Steel: Rolling mill main drives, ladle crane hoists, and continuous casting line drives operate in environments with intense radiated heat, electromagnetic fields from induction furnaces, and mechanical shock. The SIMOVERT MASTERDRIVES platform — with this terminal board properly installed — maintains closed-loop torque control accuracy even under these extreme conditions, protecting both the process and the downstream mechanical equipment.

Security & Quality FAQ

Q1: What warranty coverage is provided with the 6SE7090-0XX84-0KB0?
All units supplied by TOPNLMS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed promptly with replacement or repair options. Our technical team provides pre-shipment support to confirm compatibility with your specific drive configuration before the order is dispatched.

Q2: How is each unit tested before shipment?
Every 6SE7090-0XX84-0KB0 undergoes a multi-point inspection protocol prior to dispatch: visual inspection for physical damage, connector integrity check, functional power-on test where applicable, and ESD-safe packaging. Refurbished units are additionally subjected to burn-in testing to screen for latent defects. A test report is available upon request for critical infrastructure procurement.

Q3: Is this module compatible with all variants of the SIMOVERT MASTERDRIVES 6SE70 series?
The 6SE7090-0XX84-0KB0 is designed for the 6SE70 drive family and fits the standard D-type option slot present across the MASTERDRIVES MC, VC, and FC chassis variants. Compatibility should be verified against your specific drive firmware version and hardware revision. Our engineering support team can cross-reference your drive nameplate data to confirm fit before purchase — contact us at [email protected].

Q4: Can TOPNLMS support long-term supply and obsolescence management for this part?
Yes. TOPNLMS maintains strategic stock of Siemens SIMOVERT MASTERDRIVES option boards, including the 6SE7090-0XX84-0KB0, to support customers managing aging drive fleets where OEM supply has been discontinued or lead times are extended. We offer scheduled procurement agreements, condition-based replacement planning, and technical consultation for drive modernization projects. Long-term supply continuity is a core part of our value proposition for industrial MRO customers.
