Siemens 6SE7090-0XX84-0BC0 Ruggedized Fiber Optic Module for Harsh Environments

Product Overview

Siemens 6SE7090-0XX84-0BC0 Ruggedized Fiber Optic Module for Harsh Environments

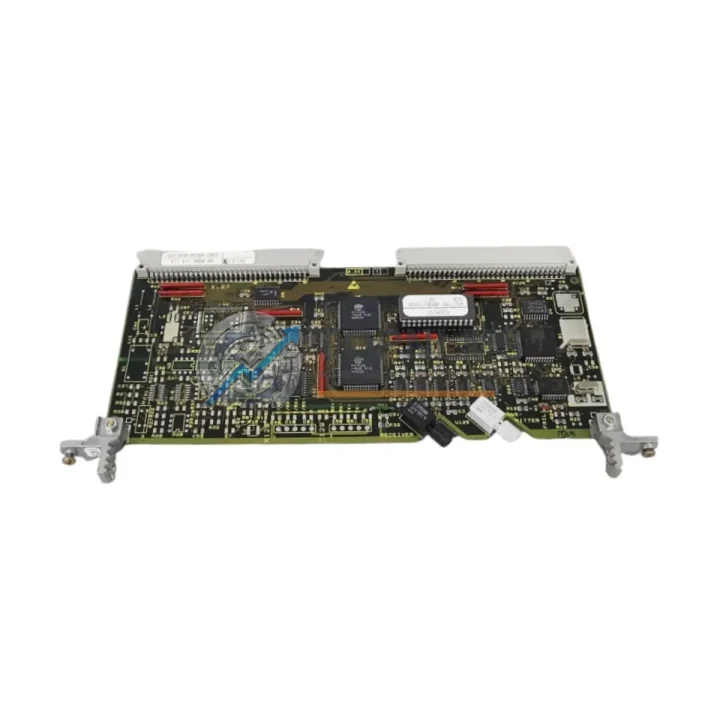

The Siemens 6SE7090-0XX84-0BC0 is the SCB1 (Serial Communication Board) fiber optic communication module engineered for the SIMOVERT MASTERDRIVES 6SE70 series of AC variable-speed drives. Designed to operate reliably in the most demanding industrial environments — including high-temperature foundries, high-humidity coastal processing plants, dust-laden mining galleries, and vibration-intensive heavy manufacturing lines — this board delivers deterministic, noise-immune data transmission where copper-based communication consistently fails.

At its core, the 6SE7090-0XX84-0BC0 replaces electrical signal paths with optical fiber links, achieving galvanic isolation between the drive and the control system. This architecture eliminates ground-loop interference and renders the communication channel immune to electromagnetic interference (EMI) and radio-frequency interference (RFI) — a critical advantage in environments where large motors, welding equipment, high-voltage switchgear, and variable-frequency drives generate continuous electrical noise. The result is a communication link that maintains data integrity even when installed in the same control cabinet as high-power switching devices.

Within the SIMOVERT MASTERDRIVES 6SE70 ecosystem, the SCB1 board integrates directly into the drive’s option slot, enabling peer-to-peer and master-slave fiber optic ring topologies. It supports the SIMOLINK protocol, allowing multiple drives — such as the 6SE7031, 6SE7032, 6SE7033, and 6SE7035 series converters — to be synchronized across a single fiber ring with cycle times suitable for coordinated multi-axis motion. This is particularly valuable in continuous casting lines, paper machine drives, and rolling mill applications where speed synchronization between multiple drive units is a process-critical requirement.

The board’s rugged construction addresses the full spectrum of industrial environmental stressors. Conformal coating on the PCB protects against condensation and corrosive atmospheres. The fiber optic transceivers are rated for extended temperature ranges, ensuring stable operation in both sub-zero outdoor installations and high-ambient-temperature machine rooms. Vibration and shock resistance meets the mechanical stress requirements of mobile industrial platforms and heavy press environments. These characteristics make the 6SE7090-0XX84-0BC0 a preferred replacement and upgrade component for aging copper-based communication boards in legacy MASTERDRIVES installations.

In a typical control cabinet deployment, the SCB1 board works alongside the SIMOVERT MASTERDRIVES CU (Control Unit) boards — such as the 6SE7090-0XX84-0FA0 — and the PMU (Parameterization Unit) 6SE7090-0XX84-0KA0, forming a complete drive intelligence stack. The fiber optic ring can be supervised by a Siemens SIMATIC S7-300 or S7-400 PLC via a CP (Communications Processor) module, or integrated into a PROFIBUS DP network through a CBP2 communication board (6SE7090-0XX84-0FF5). For installations requiring both fiber optic synchronization and fieldbus connectivity, the SCB1 and CBP2 boards can coexist in separate option slots of the same drive chassis.

Power supply stability for the drive system is typically provided by Siemens SITOP PSU series industrial power supplies, which deliver regulated 24 VDC to the control electronics. In multi-drive systems, the DC link bus is shared across drive units connected via the DC bus coupler, reducing overall energy consumption through regenerative braking energy exchange. The SCB1 fiber optic board ensures that the communication layer governing this energy exchange remains interference-free, preventing nuisance trips and process interruptions caused by communication timeouts.

For safety-critical applications — such as those requiring SIL 2 or SIL 3 compliance under IEC 61508, or Category 3/PLd under EN ISO 13849 — the 6SE7090-0XX84-0BC0 is typically deployed alongside Siemens SIRIUS safety relay modules and AS-Interface safety monitors. The fiber optic communication layer provides the deterministic, low-latency data path required for safe torque off (STO) and safe stop (SS1) functions to be coordinated across multiple drive axes without the timing jitter introduced by electrically noisy copper links.

Procurement teams sourcing the 6SE7090-0XX84-0BC0 as a spare part or emergency replacement will find that TOPNLMS maintains verified stock of this module, pre-tested prior to shipment. Each unit undergoes functional verification against SIMOVERT MASTERDRIVES compatibility parameters before dispatch. All units are supplied with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Expedited shipping options are available for urgent maintenance requirements, with global logistics coverage to support plant operations in Asia, Europe, the Middle East, and the Americas.

Rugged Specifications Table

Comprehensive Protection Solutions

A resilient SIMOVERT MASTERDRIVES installation depends on more than a single communication board. The 6SE7090-0XX84-0BC0 SCB1 module is most effective when deployed as part of a coordinated protection and control architecture. The CBP2 PROFIBUS communication board (6SE7090-0XX84-0FF5) complements the SCB1 by providing fieldbus connectivity to SIMATIC PLC networks, enabling supervisory control while the fiber optic ring handles inter-drive synchronization. The PMU parameterization unit (6SE7090-0XX84-0KA0) provides local operator access for commissioning and fault diagnostics without interrupting the fiber optic communication ring.

For power quality and supply protection, the SITOP PSU100S 24 VDC power supply provides regulated control voltage with built-in overload and short-circuit protection, ensuring the drive’s control electronics remain powered during transient grid disturbances. Line-side harmonic mitigation is addressed by Siemens SIMOVERT MASTERDRIVES line reactors (6SE7090 series), which reduce THD and protect upstream transformers and switchgear from drive-generated harmonics.

In safety-critical zones, the SIRIUS 3SK1 safety relay monitors emergency stop circuits and door interlocks, feeding safe torque off (STO) commands to the drive via hardwired safety inputs. For multi-axis coordinated motion, the T400 technology board (6DD1607-0AA0) — another option-slot module for the 6SE70 chassis — handles cam controllers, position synchronization, and electronic gearbox functions, working in concert with the SCB1 fiber optic ring for deterministic axis coupling. Terminal modules such as the 6SE7090-0XX84-0HB0 SCI1/SCI2 serial interface boards extend the drive’s I/O capacity for process feedback signals, encoder inputs, and analog setpoint channels, completing a fully integrated drive control architecture capable of withstanding the harshest industrial operating conditions.

Application in Critical Infrastructure

The Siemens 6SE7090-0XX84-0BC0 SCB1 fiber optic board has established a strong operational record across the most demanding sectors of critical industrial infrastructure.

In steel and metals processing, rolling mill main drives and coiler/decoiler systems require microsecond-level speed synchronization across multiple SIMOVERT MASTERDRIVES units. The SIMOLINK fiber optic ring managed by the SCB1 board delivers the deterministic cycle times required for strip tension control and gauge regulation, where communication latency directly translates to product quality variation and strip breakage risk.

In mining and mineral processing, conveyor drives, crusher drives, and hoist systems operate in environments saturated with coal dust, silica dust, and diesel exhaust particulates. The fiber optic communication path of the SCB1 board is unaffected by the conductive dust contamination that degrades copper-based communication links, and the board’s conformal coating provides additional protection against the corrosive sulfur compounds present in many underground mining atmospheres.

In oil and gas facilities — including offshore platforms, onshore compressor stations, and pipeline pump stations — the SCB1 board enables reliable drive communication in classified hazardous areas (Zone 2 / Division 2) when installed in purged and pressurized control enclosures. The galvanic isolation provided by the fiber optic interface eliminates the risk of ignition-capable electrical faults propagating from the drive communication network into the control system.

In water and wastewater treatment, pump drives and blower drives operating in high-humidity, chemically aggressive environments benefit from the SCB1 board’s moisture resistance and corrosion-resistant construction. Continuous 24/7 operation requirements in water infrastructure make the 12-month warranty and pre-tested spare stock availability offered by TOPNLMS a critical procurement consideration for maintenance planners.

In power generation and utilities, auxiliary drive systems for boiler feed pumps, induced draft fans, and cooling water pumps in thermal power stations rely on SIMOVERT MASTERDRIVES systems for variable-speed control. The SCB1 fiber optic board ensures that the communication layer governing these critical auxiliary systems remains immune to the intense electromagnetic fields generated by large generators, transformers, and high-voltage bus systems in the power plant environment.

Security & Quality FAQ

Q1: What warranty coverage is provided with the 6SE7090-0XX84-0BC0?
Every 6SE7090-0XX84-0BC0 unit supplied by TOPNLMS carries a 12-month warranty from the date of shipment. This warranty covers manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, TOPNLMS provides replacement or repair support with priority processing to minimize plant downtime.

Q2: How is each unit tested before shipment?
All units undergo pre-shipment functional verification. Testing confirms that the fiber optic transceivers, SIMOLINK protocol stack, and board-level power regulation circuits perform within Siemens factory specifications. Units that do not pass verification are quarantined and not dispatched. A test record is available upon request for quality-assurance documentation purposes.

Q3: Is the 6SE7090-0XX84-0BC0 compatible with all SIMOVERT MASTERDRIVES 6SE70 variants?
The SCB1 board is compatible with the full range of SIMOVERT MASTERDRIVES 6SE70 Vector Control and Motion Control chassis that feature an SCB option slot. This includes the 6SE7031, 6SE7032, 6SE7033, and 6SE7035 converter families. Compatibility with specific drive firmware versions should be confirmed against the Siemens SIMOVERT MASTERDRIVES Compendium (document 6SE7087-6QX70-0PP0). TOPNLMS technical support can assist with compatibility verification prior to order placement.

Q4: Can TOPNLMS support long-term and repeat supply requirements?
Yes. TOPNLMS maintains ongoing stock of the 6SE7090-0XX84-0BC0 and related SIMOVERT MASTERDRIVES option boards to support both emergency replacement and planned maintenance programs. For customers managing multi-site or multi-unit MASTERDRIVES installations, TOPNLMS can provide framework supply agreements with reserved stock allocation, ensuring continuity of spare parts availability for the operational life of the installed drive fleet.
