Siemens 6SE7041-8HK85-1HA0 C98043-A1685-L43 Replacement PSU

Product Overview

Siemens 6SE7041-8HK85-1HA0 C98043-A1685-L43 Replacement PSU: Smooth Transition from Legacy MASTERDRIVES Systems

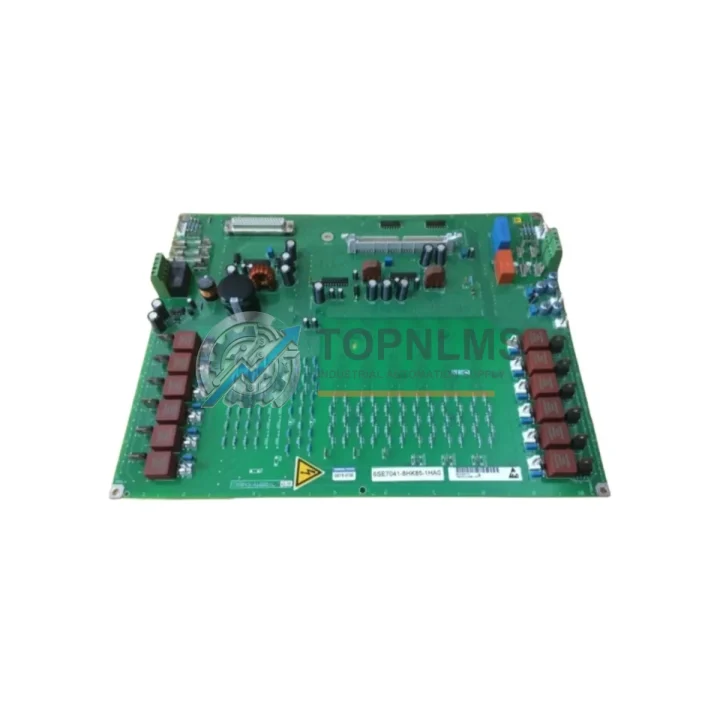

The Siemens 6SE7041-8HK85-1HA0 C98043-A1685-L43 is an internal power supply board (PSU board) designed for the SIMOVERT MASTERDRIVES series — one of Siemens’ most widely deployed AC/DC drive platforms in heavy industrial environments. As the MASTERDRIVES product line has reached end-of-production status, many plant operators and maintenance engineers are now facing the challenge of sourcing reliable replacement boards to sustain existing drive cabinets without committing to a full drive replacement. This unit directly addresses that need, offering a verified drop-in replacement that preserves your existing wiring, cabinet layout, and control architecture.

The 6SE7041-8HK85-1HA0 C98043-A1685-L43 PSU board is responsible for generating the internal DC bus voltages required to power the gate drive circuits, control electronics, and communication interfaces within the MASTERDRIVES Vector Control and Motion Control drive chassis. Failure of this board typically manifests as F-fault codes related to internal supply undervoltage, random drive trips, or complete loss of drive readiness. Replacing this board restores full drive functionality without requiring reprogramming of the connected SIMATIC S7 PLC or reconfiguration of the PROFIBUS DP network.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful MASTERDRIVES PSU board replacement rarely happens in isolation. In most retrofit scenarios, the maintenance team simultaneously inspects and replaces adjacent components to ensure system-wide reliability and avoid repeat shutdowns. When replacing the 6SE7041-8HK85-1HA0 C98043-A1685-L43, engineers commonly address the MASTERDRIVES CU (Control Unit) board — such as the 6SE7090-0XX84-0AB0 — which governs the drive’s closed-loop vector control and interfaces directly with the PSU board via the internal backplane. If the CU board has accumulated operating hours comparable to the failed PSU, proactive replacement during the same maintenance window significantly reduces future unplanned downtime.

The MASTERDRIVES IPM (Intelligent Power Module) and associated IGBT gate driver boards within the same 6SE7041 chassis should also be inspected. These components share the DC bus voltages generated by the PSU board, and a prolonged undervoltage condition caused by a failing PSU can stress the gate driver circuits. Similarly, the 6SE7090-0XX84-2FK0 PROFIBUS communication board — if installed — should be verified for firmware compatibility after the PSU swap, particularly in plants running SIMATIC S7-300 or S7-400 controllers with DP master configurations.

For plants migrating from MASTERDRIVES to the newer SINAMICS S120 platform, the 6SE7041-8HK85-1HA0 C98043-A1685-L43 serves as a critical bridge component: keeping the legacy drive operational while the engineering team completes the SINAMICS migration project, tests the new SINAMICS CU320-2 DP Control Unit, and validates the updated STEP 7 or TIA Portal program. During this transition period, the existing MASTERDRIVES terminal module, 24 VDC power supply (e.g., SITOP PSU100S), and PROFIBUS DP trunk cabling remain fully reusable, minimizing capital expenditure.

In cabinet-level retrofits, the 6SE7041 chassis fan assembly and DC bus capacitor bank are frequently replaced alongside the PSU board, as thermal stress and electrolytic aging affect all three components on a similar timeline. Sourcing these as a coordinated kit from TOPNLMS ensures all parts arrive together, reducing the total maintenance window to a single planned shutdown rather than multiple reactive interventions.

Retrofit Guidance FAQ

Q: Will replacing the PSU board require me to re-enter drive parameters?
A: No. The drive parameters are stored on the MASTERDRIVES CU board (or an optional MMC memory card), not on the PSU board. Swapping the PSU board does not erase or alter any parameter set. After installation, the drive should power up and resume normal operation with the existing parameter configuration intact.

Q: Is the PROFIBUS DP node address affected by the PSU replacement?
A: No. The PROFIBUS DP node address and GSD configuration are managed by the CU board and the communication option board (e.g., 6SE7090-0XX84-2FK0). The PSU board has no role in network addressing. Your SIMATIC S7 DP master will recognize the drive at the same node address immediately after restart.

Q: Does the physical form factor match the original board exactly?
A: Yes. The C98043-A1685-L43 board uses the same backplane connector pinout and chassis mounting points as the original. No mechanical modification, bracket adaptation, or cable extension is required. The board slides into the designated slot and locks with the original retention mechanism.

Q: Can this board be used in both Vector Control and Motion Control MASTERDRIVES variants?
A: The 6SE7041-8HK85-1HA0 PSU board is chassis-specific rather than control-mode-specific. Compatibility depends on the drive chassis size and power rating, not the control mode. Please confirm your chassis variant (VC or MC) and frame size with our technical team before ordering if you have any uncertainty.

Q: What is the typical installation time for this replacement?
A: For a trained drive technician familiar with the MASTERDRIVES platform, the physical board swap typically takes 30–60 minutes, including safe isolation of the DC bus, board removal, installation, and initial power-up verification. Full functional testing with the connected load should be completed before returning the drive to production.

Q: What if the drive still faults after replacing the PSU board?
A: If fault codes persist after the PSU replacement, the root cause may lie in the CU board, the IGBT module, or the gate driver circuit. TOPNLMS provides post-sale technical support to help diagnose residual faults. Our team can assist with fault code interpretation and recommend the appropriate next replacement component.

Warranty Assurance

Every 6SE7041-8HK85-1HA0 C98043-A1685-L43 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each board undergoes a functional verification process that includes visual inspection for physical damage, connector integrity checks, and power-on testing where applicable. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS will arrange for a replacement unit to be dispatched promptly, minimizing the impact on your production schedule. Our after-sales response target is within 24 business hours of a confirmed warranty claim. Replacement logistics — including return shipping coordination — are handled by our team to reduce the administrative burden on your maintenance department.

For procurement teams requiring documentation, TOPNLMS can provide a test report, packing list, and commercial invoice with HS code declaration to support customs clearance for international shipments. Standard shipping from our Xiamen warehouse covers major industrial regions in Asia, Europe, and the Americas, with express options available for urgent breakdown situations.

We understand that unplanned drive failures create immediate production pressure. Our inventory is maintained specifically to support fast-turnaround breakdown orders, and same-day dispatch is available for in-stock items confirmed before 15:00 CST.
