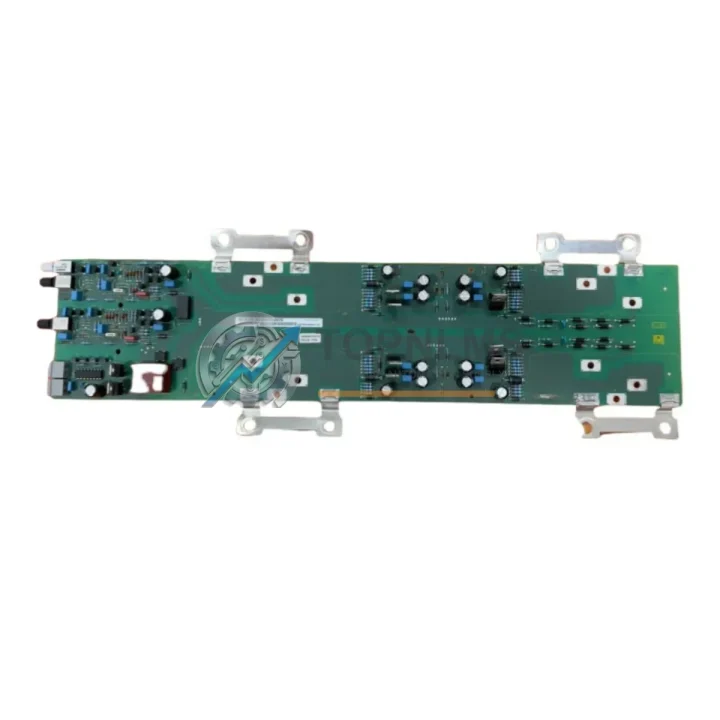

Siemens 6SE7038-6GK84-1JC2 Ruggedized PROFIBUS Communication Module for Harsh Industrial Environments

The Siemens 6SE7038-6GK84-1JC2 is a high-performance PROFIBUS DP communication module engineered for the SIMOVERT MASTERDRIVES MC/VC series of variable-speed drives. Designed to operate reliably in the most demanding industrial conditions — including high ambient temperatures, elevated humidity, airborne particulate contamination, continuous mechanical vibration, and intense electromagnetic interference — this module delivers uncompromising fieldbus connectivity where system uptime is non-negotiable.

In heavy-industry environments such as steel mills, mining operations, offshore platforms, and large-scale chemical processing plants, drive communication failures cascade rapidly into production stoppages. The 6SE7038-6GK84-1JC2 addresses this risk by providing a robust, galvanically isolated PROFIBUS DP interface that maintains deterministic cycle times even under severe EMI conditions generated by high-power inverters, arc furnaces, and large motor starters operating in the same switchgear cabinet.

Rugged Specifications Table

Comprehensive Protection Solutions

The 6SE7038-6GK84-1JC2 is rarely deployed in isolation. In a fully integrated MASTERDRIVES control architecture, it works in concert with the Siemens 6SE7090-0XX84-0AB0 MASTERDRIVES base unit and the 6SE7031-8EF84-1JC2 power section to form a complete, coordinated drive system. The PROFIBUS DP network carrying process data from this module is typically supervised by a Siemens S7-400 PLC — such as the 6ES7414-3XM05-0AB0 CPU — or a SIMATIC S7-300 controller acting as PROFIBUS master, issuing speed setpoints and reading actual-value telegrams in real time.

Within the same control cabinet, the 6SE7038-6GK84-1JC2 frequently operates alongside Siemens ET 200M distributed I/O stations connected on the same PROFIBUS segment, enabling centralized monitoring of field signals without additional wiring runs. Power quality for the entire cabinet is maintained by Siemens SITOP PSU300S industrial power supplies, which provide regulated 24 V DC to the PLC racks, I/O modules, and communication interfaces — including the PROFIBUS termination resistors and repeaters.

For applications requiring functional safety, the drive system is complemented by Siemens 3SK1 safety relays or a SIRIUS 3RK3 modular safety system, which monitors emergency-stop circuits and safety door interlocks independently of the PROFIBUS network. Surge protection on the PROFIBUS cable is provided by Siemens SIPROTEC 5-compatible surge arresters or dedicated PROFIBUS bus terminal modules, preventing transient damage to the 6SE7038-6GK84-1JC2 interface circuitry during lightning events or switching surges on long cable runs.

Terminal connectivity within the cabinet is handled by Siemens SIRIUS 8WA terminal blocks and 8WH series feed-through terminals, ensuring reliable, vibration-proof conductor termination that meets the mechanical demands of continuous-duty industrial installations. Where network topology requires segment extension, Siemens OLM/G12 optical link modules convert the PROFIBUS RS-485 signal to fiber optic, eliminating ground-loop interference across long inter-building cable runs.

Application in Critical Infrastructure

The Siemens 6SE7038-6GK84-1JC2 has established a proven track record across the most demanding sectors of critical infrastructure worldwide.

Oil & Gas: On offshore drilling platforms and onshore pipeline compression stations, MASTERDRIVES MC/VC units equipped with this PROFIBUS module control high-power pump and compressor motors. The galvanic isolation of the 6SE7038-6GK84-1JC2 is essential in these environments, where ground potential differences between topside equipment and subsea structures can reach tens of volts. The module’s robust EMI immunity ensures uninterrupted PROFIBUS communication even when high-frequency switching noise from adjacent variable-frequency drives couples into the fieldbus cable.

Mining & Mineral Processing: In underground coal mines and open-pit copper concentrators, conveyor drives, hoist motors, and ball mill drives rely on MASTERDRIVES systems for precise speed regulation. Dust concentrations, mechanical shock from blasting operations, and wide ambient temperature swings — from sub-zero portal temperatures to +45 °C inside motor control centers — place extreme demands on communication hardware. The 6SE7038-6GK84-1JC2’s compliance with IEC 60068-2-6 vibration standards and its wide operating temperature range make it a dependable choice for these conditions.

Power Generation & Utilities: In coal-fired and hydroelectric power plants, boiler feed pump drives and cooling water pump drives use MASTERDRIVES MC/VC systems integrated into DCS architectures via PROFIBUS DP gateways. The 6SE7038-6GK84-1JC2 enables seamless data exchange between the drive and the plant DCS — such as an ABB System 800xA or Emerson DeltaV — through PROFIBUS-to-OPC gateway servers, providing operators with real-time torque, current, and fault diagnostics without interrupting the control loop.

Water & Wastewater Treatment: Municipal water treatment facilities operating 24/7 depend on reliable drive communication for pump sequencing, flow control, and energy optimization. The 6SE7038-6GK84-1JC2 supports cyclic PROFIBUS DP data exchange with sub-10 ms cycle times, enabling tight closed-loop pressure control across multi-pump booster stations. Its non-condensing humidity rating of up to 95 % RH is particularly relevant in wet well pump stations where ambient moisture levels are consistently elevated.

Metallurgy & Steel: Rolling mill main drives and continuous casting machine drives in steel plants represent some of the most electrically hostile environments in industry. High-current bus bars, large transformer banks, and rapid motor reversals generate broadband electromagnetic interference that can disrupt lesser communication hardware. The 6SE7038-6GK84-1JC2’s Category C3 EMC rating and its shielded connector interface provide the noise immunity required to maintain deterministic PROFIBUS communication in these conditions.
