Siemens 6SE7036-0EF85-0EA0 Replacement for MASTERDRIVES: Smooth Transition & Legacy System Compatibility

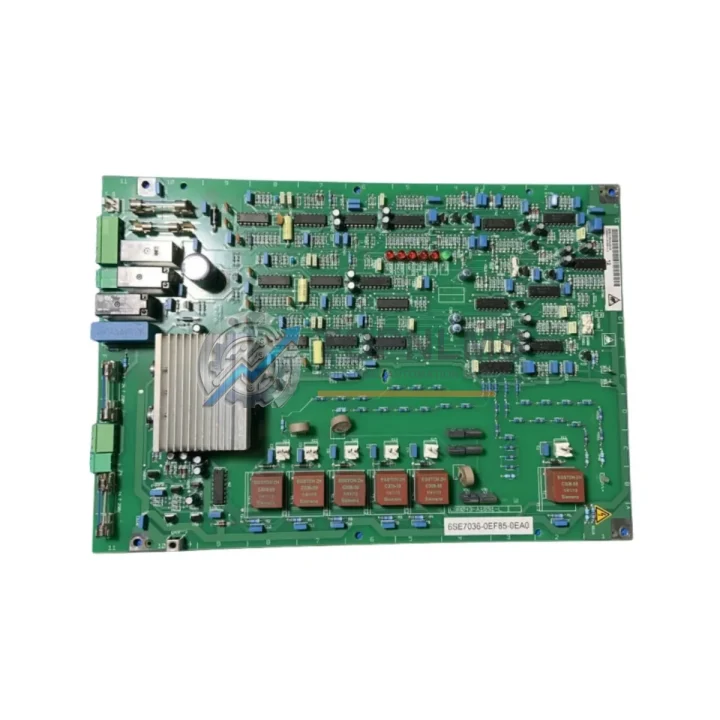

The Siemens 6SE7036-0EF85-0EA0 is a Control and Pre-Charging Module designed for the SIMOVERT MASTERDRIVES series — one of Siemens’ most widely deployed variable-speed drive platforms in heavy industrial environments. As the MASTERDRIVES product line has reached end-of-life status, many plant operators and OEM integrators are now facing the critical challenge of sourcing verified replacement units or planning a structured migration to a supported drive architecture. TOPNLMS maintains ready stock of the 6SE7036-0EF85-0EA0 to support both immediate breakdown replacement and planned retrofit projects, ensuring your production line stays operational with minimal disruption.

The 6SE7036-0EF85-0EA0 integrates the control electronics and pre-charging circuit into a single compact module, making it a key component in MASTERDRIVES MC (Motion Control) and VC (Vector Control) cabinet configurations. Its role in managing DC bus pre-charging protects the drive’s power section during startup, and its failure typically results in a complete drive shutdown. For facilities running legacy MASTERDRIVES systems — particularly those built around the 6SE70 chassis — having a verified replacement on hand is essential to maintaining uptime.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful MASTERDRIVES replacement or migration rarely involves a single component. In most field scenarios, the 6SE7036-0EF85-0EA0 is replaced as part of a broader drive system restoration or cabinet upgrade. During the pre-charging module swap, engineers frequently identify adjacent components that require attention.

The 6SE7090-0XX84-0KA0 MASTERDRIVES option board slot cover and CBP2 PROFIBUS communication board are commonly replaced alongside the control module, particularly when the drive has been in service for over a decade. If the system uses a 6SE7031-8EF85-0EA0 or 6SE7033-7EG85-0EA0 control module in a parallel drive cabinet, those units should be inspected simultaneously to avoid cascading failures.

For facilities migrating from MASTERDRIVES to the SINAMICS S120 platform, the transition typically involves introducing a SINAMICS S120 Control Unit CU320-2 DP and a compatible Line Module (Active or Basic Infeed) to replace the legacy rectifier and pre-charging architecture. The SINAMICS S120 Booksize Motor Module replaces the inverter section, while the SMC30 Sensor Module Cabinet-Mounted handles encoder feedback previously managed by the MASTERDRIVES control board.

In cabinet-level retrofits, the 6EP1336-3BA00 SITOP power supply is often upgraded in parallel to ensure the 24 V DC control circuit meets the current draw requirements of the new control hardware. Signal isolation between legacy I/O wiring and new control modules is typically handled by SIRIUS 3RS signal conditioners or equivalent DIN-rail-mounted isolators, preserving existing field wiring while ensuring signal integrity.

For applications where PROFIBUS-DP must coexist with PROFINET during a phased migration, a PN/DP coupler or IE/PB Link PN IO is commonly deployed to bridge the two networks without requiring a full PLC program rewrite. This approach allows the existing SIMATIC S7-300 or S7-400 PLC to continue managing the legacy MASTERDRIVES units while new SINAMICS drives are commissioned on the PROFINET backbone.

Retrofit Guidance FAQ

Q: Can I install the 6SE7036-0EF85-0EA0 without rewiring the control cabinet?
A: Yes. The module uses the same connector layout as the original MASTERDRIVES control and pre-charging assembly. No rewiring is required in most standard installations. Verify that the existing harness is undamaged before reinstallation.

Q: Do I need to re-enter all drive parameters after replacement?
A: It is strongly recommended to back up all parameters using DriveMonitor or STARTER before removing the old module. After installing the 6SE7036-0EF85-0EA0, restore the parameter set and verify motor data, ramp times, and protection settings before running the drive under load.

Q: Is PROFIBUS-DP communication preserved after the module swap?
A: Yes, provided the CBP2 or CBC communication option board is transferred to the new module or a compatible replacement is installed. The PROFIBUS node address and baud rate settings are stored in the option board and will be retained.

Q: Will the replacement module fit in the existing cabinet space?
A: The 6SE7036-0EF85-0EA0 is designed for the MASTERDRIVES Frame Size F/G chassis and occupies the same physical envelope as the original module. No cabinet modification or additional DIN rail space is required.

Q: What if my system uses a different firmware revision?
A: Firmware revision compatibility should be confirmed before installation. TOPNLMS technical support can assist in identifying the correct firmware version for your specific drive configuration. In most cases, the existing firmware on the drive’s power section remains unchanged.

Q: Can this module be used as a long-term spare for multiple drives?
A: Yes. Many maintenance teams purchase one or two units as critical spares to cover multiple MASTERDRIVES cabinets of the same frame size. This is a cost-effective strategy for facilities with aging MASTERDRIVES fleets where sourcing replacement modules on short notice is increasingly difficult.
