Siemens 6SE7031-2HG84-1JC1 Ruggedized Inverter Module

Product Overview

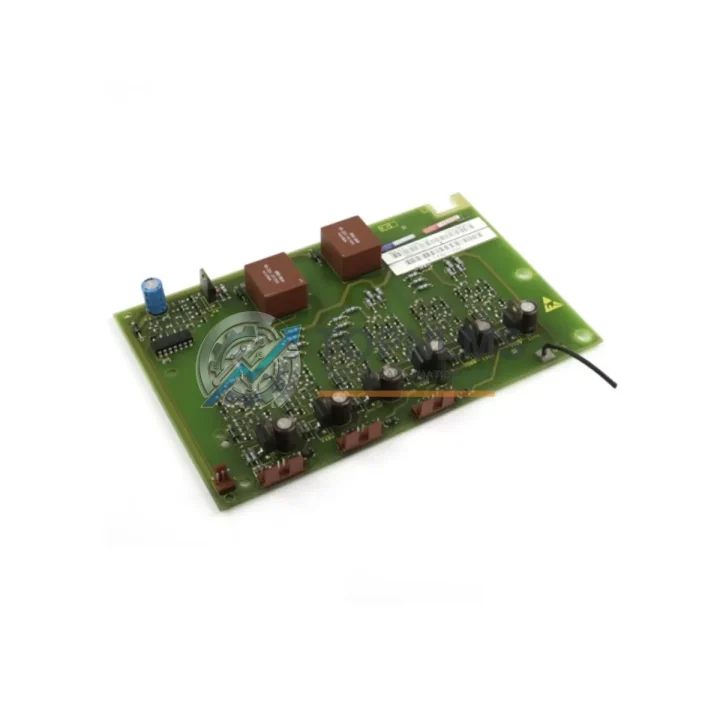

Siemens 6SE7031-2HG84-1JC1 Ruggedized Inverter Firing Module for Harsh Environments

The Siemens 6SE7031-2HG84-1JC1 is a high-performance inverter firing unit belonging to the SIMOVERT MASTERDRIVES VC series — one of Siemens’ most proven vector-control drive platforms deployed across heavy industry worldwide. Engineered to deliver precise, reliable pulse-width modulation (PWM) firing signals to IGBT power stacks, this module is the nerve center of the drive’s power conversion chain. Its ruggedized design makes it a trusted choice for continuous-duty applications in environments characterized by elevated temperatures, humidity, mechanical vibration, airborne particulates, and intense electromagnetic interference (EMI).

In oil refineries, petrochemical plants, and offshore platforms where ambient temperatures routinely exceed 45 °C and corrosive gases are present, the 6SE7031-2HG84-1JC1 maintains stable gate-drive timing with no degradation in switching accuracy. Mining hoists, conveyor drives, and crusher motor controls operating in dusty, high-vibration tunnels rely on this firing unit to sustain uninterrupted torque regulation across multi-shift production cycles. Water treatment facilities and municipal pumping stations benefit from its immunity to ground-loop noise and variable-frequency interference generated by adjacent motor loads.

Within the SIMOVERT MASTERDRIVES VC cabinet architecture, the 6SE7031-2HG84-1JC1 interfaces directly with the CU (Control Unit) board — such as the 6SE7090-0XX84-0AB0 — receiving speed and torque setpoints and translating them into precisely timed IGBT gate pulses. The firing unit’s isolated gate-drive outputs protect the power semiconductors from shoot-through events, extending the service life of the entire inverter stack. When paired with the MASTERDRIVES VC rectifier unit and DC link capacitor bank, the system delivers four-quadrant operation suitable for regenerative braking in steel rolling mills and mine winders.

Maintenance engineers integrating this module into existing MASTERDRIVES VC frames will find it fully compatible with Siemens’ CBP2 (PROFIBUS) and CBC (CAN Bus) communication boards, enabling seamless integration into plant-wide SCADA and DCS architectures. The module also cooperates with the OP1S operator panel and DriveMonitor PC software for parameter upload/download and fault diagnostics — critical capabilities for minimizing mean time to repair (MTTR) in 24/7 production environments.

For safety-critical applications, the 6SE7031-2HG84-1JC1 supports coordination with external safety relays and STO (Safe Torque Off) circuits wired through the drive’s X9 terminal block, meeting the functional safety requirements of machinery operating under EN ISO 13849-1 and IEC 62061 frameworks. Power plant auxiliary drives, chemical reactor agitators, and pharmaceutical mixing systems that require certified safe-stop functionality can rely on this firing unit as a compliant component within a validated safety architecture.

From a procurement standpoint, TOPNLMS maintains verified stock of the 6SE7031-2HG84-1JC1 sourced through authorized industrial channels. Every unit undergoes incoming inspection including visual examination, board-level continuity checks, and functional verification before dispatch. Units are shipped in anti-static packaging with foam cushioning to prevent transit damage. Standard lead time is 3–7 business days for in-stock items, with expedited options available for emergency plant shutdowns. All units are covered by a 12-month warranty against manufacturing defects and functional failure under normal operating conditions.

Rugged Specifications Table

Comprehensive Protection Solutions

The 6SE7031-2HG84-1JC1 firing unit does not operate in isolation — it is one element of a tightly integrated drive system. In a fully configured SIMOVERT MASTERDRIVES VC cabinet, it works alongside the 6SE7031-2HG84-0AB0 rectifier/regenerative unit to manage bidirectional power flow, and the 6SE7090-0XX84-0AB0 control unit (CU) to execute closed-loop vector algorithms. The DC link is stabilized by dedicated capacitor modules, while the 6SE7031-2HG84-1FA0 inverter power module handles the final IGBT switching stage downstream of the firing signals.

For fieldbus connectivity in distributed control architectures, the CBP2 PROFIBUS DP communication board plugs directly into the CU option slot, enabling cyclic process data exchange with Siemens S7-300 and S7-400 PLCs at up to 12 Mbit/s. Plants running DeviceNet or CAN-based networks can substitute the CBC CAN Bus board without hardware modification to the firing unit. Where analog setpoint control is preferred, the SCB1 serial communication board provides USS protocol support for legacy DCS integration.

Upstream protection is typically provided by Siemens 3RV2 motor protection circuit breakers and 3RT2 contactors mounted in the same control cabinet, ensuring coordinated short-circuit and overload protection for the entire drive train. On the output side, dV/dt output filters and Siemens sinusoidal filters suppress voltage spikes that could stress motor winding insulation in long-cable installations — a common concern in mining and offshore applications where cable runs exceed 100 m. For applications requiring certified functional safety, the firing unit integrates with Siemens SIRIUS 3SK1 safety relays to implement STO and SS1 stop functions in compliance with PLd/SIL 2 requirements.

Application in Critical Infrastructure

In oil and gas upstream facilities, the 6SE7031-2HG84-1JC1 drives compressor motors and wellhead pump drives where unplanned downtime translates directly into production loss and safety risk. Its ability to sustain accurate torque control under fluctuating supply voltage — common in remote generator-fed installations — makes it a preferred spare for platform operators maintaining MASTERDRIVES VC fleets.

In underground mining, the firing unit powers conveyor belt drives, ventilation fan motors, and winder systems operating in zones with high dust concentration and continuous mechanical shock. The module’s conformal-coated PCB construction resists moisture ingress and corrosive particulates, reducing the frequency of board-level failures that would otherwise require costly production halts.

At thermal and hydroelectric power stations, auxiliary drives controlling cooling water pumps, induced-draft fans, and coal feeders depend on MASTERDRIVES VC systems for precise speed regulation. The 6SE7031-2HG84-1JC1 supports the high switching frequency required for low-harmonic operation, protecting sensitive generator protection relays from drive-induced interference.

In steel and metallurgy plants, rolling mill main drives and ladle transfer car drives operate under extreme regenerative braking demands. The firing unit’s coordination with the rectifier module enables four-quadrant operation, recovering braking energy back to the DC bus and reducing overall energy consumption — a measurable operational cost benefit in continuous casting lines running 24 hours a day.

Water and wastewater treatment facilities rely on MASTERDRIVES VC drives for variable-speed pump control, where the 6SE7031-2HG84-1JC1 enables precise flow regulation that reduces pipe stress and extends pump bearing life. Its compatibility with PROFIBUS DP allows integration into plant SCADA systems for remote monitoring and predictive maintenance scheduling.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a unit fails within the warranty period, contact TOPNLMS at [email protected] with the order number and a description of the fault. We will arrange return shipping, perform failure analysis, and dispatch a replacement or issue a refund within 10 business days of receiving the returned unit.

Q2: What pre-shipment testing does each unit undergo?
Every 6SE7031-2HG84-1JC1 unit in our inventory undergoes a multi-stage incoming inspection: visual examination for physical damage, board-level continuity and insulation resistance checks, and functional power-on verification where applicable. Units that do not pass all inspection criteria are quarantined and not offered for sale. A test report is available upon request for critical infrastructure procurement.

Q3: Is this module compatible with all SIMOVERT MASTERDRIVES VC frame sizes, and can it replace older revisions?
The 6SE7031-2HG84-1JC1 is designed for Frame Size H MASTERDRIVES VC inverter cabinets. It is backward-compatible with earlier hardware revisions of the same frame size, provided the CU firmware version supports the module’s gate-drive interface. TOPNLMS technical staff can assist with cross-referencing your existing drive’s nameplate data to confirm compatibility before purchase.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance programs?
Yes. TOPNLMS specializes in industrial automation spare parts with a focus on long-lifecycle products from Siemens, ABB, Rockwell, and other major automation vendors. We maintain buffer stock of high-demand MASTERDRIVES VC components and can establish blanket purchase agreements for customers with multi-site maintenance programs. Contact us to discuss volume pricing, reserved stock arrangements, and scheduled delivery programs tailored to your plant’s maintenance calendar.
