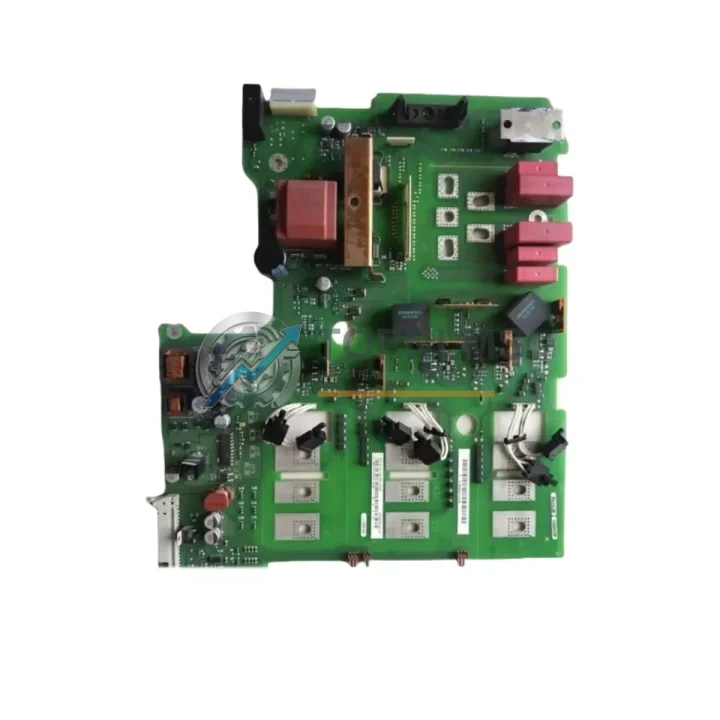

Siemens 6SE7024-7ED84-1HF4 Original Industrial Spare CBP2 Compatible

Product Overview

Siemens 6SE7024-7ED84-1HF4 Original Industrial Spare CBP2 Compatible: System Stability and Industrial Spare Parts Maintenance Value

The Siemens 6SE7024-7ED84-1HF4 is the CBP2 (Communication Board PROFIBUS) option board designed for the SIMOVERT MASTERDRIVES VC and MC series of variable-speed drives. In industrial environments where PROFIBUS-DP fieldbus communication is the backbone of process control, this board is a mission-critical component. Its failure can immediately halt production lines, disrupt coordinated multi-axis motion, and trigger costly unplanned downtime. Maintaining a verified original spare in your inventory is not a luxury — it is a fundamental element of any responsible maintenance strategy.

Critical Technical Specs

Preventive Maintenance Strategy

When a MASTERDRIVES system is taken offline for scheduled maintenance or emergency repair, the CBP2 board is rarely the only component that warrants inspection. A disciplined maintenance engineer will use the opportunity to audit the entire drive cabinet and associated fieldbus segment. The 6SE7024-7ED84-1HF4 sits at the intersection of the drive’s power electronics and the plant’s PROFIBUS-DP network, meaning its health is directly tied to the reliability of the entire communication loop.

During a cabinet inspection, it is advisable to simultaneously check the PROFIBUS cable termination resistors and the DB9 connectors at both ends of the segment — degraded termination is a leading cause of intermittent CBP2 communication faults that are often misdiagnosed as board failures. The MASTERDRIVES power supply module (PSU board, e.g., the A1E or equivalent internal supply card) should also be verified for stable output voltage, as under-voltage on the option slot bus can cause the CBP2 to drop off the network unpredictably.

For drives in the MASTERDRIVES VC/MC family, the CU (Control Unit) board — such as the 6SE7090-0XX84-0AB0 series — is the logical partner to the CBP2. If the CBP2 is being replaced due to a communication fault, the CU board’s firmware version and parameter set should be verified for compatibility with the new board. Keeping a spare CU board alongside the CBP2 in your parts inventory significantly reduces mean time to repair (MTTR) for the most common MASTERDRIVES failure modes.

The I/O expansion boards used in the same cabinet — including analog input/output modules and digital I/O boards such as the SCI (Serial Communication Interface) option — should be inspected for corrosion on their edge connectors and for any signs of thermal stress. In high-cycle production environments, these boards accumulate wear at a rate comparable to the CBP2 itself. Proactive replacement of aging I/O boards during a planned CBP2 swap prevents secondary failures within weeks of returning the drive to service.

The PROFIBUS-DP network segment connected to the 6SE7024-7ED84-1HF4 typically includes other field devices: Siemens S7-300 or S7-400 PLC racks with CP 342-5 or CP 443-5 communication processors, ET 200M or ET 200S distributed I/O stations, and potentially other MASTERDRIVES units on the same bus. A maintenance event on one drive is the ideal time to verify bus address assignments, check for duplicate node addresses, and confirm that all devices on the segment are operating within their specified baud rate tolerance. Spare PROFIBUS bus connectors (e.g., 6ES7972-0BA52-0XA0 type) and a short length of PROFIBUS cable should be part of every maintenance kit for this system.

For facilities running legacy MASTERDRIVES systems beyond their original design life, the electrolytic capacitors on the DC bus and the gate driver boards are statistically the highest-risk components after the communication boards. Scheduling a capacitor reformation or replacement cycle in parallel with CBP2 spare procurement is a recognized best practice for extending system life by five or more years without a full drive replacement.

Strategic Replacement Solutions

The Siemens 6SE7024-7ED84-1HF4 has been in service in MASTERDRIVES installations since the mid-1990s. Many of these systems remain in production today because the drives themselves are mechanically and electrically sound — only the communication interface technology has become a maintenance liability as original spare boards become harder to source through standard distribution channels.

Sourcing a genuine original 6SE7024-7ED84-1HF4 from a verified industrial spare parts supplier is the lowest-risk replacement path. Unlike third-party compatible boards, an original Siemens CBP2 requires no parameter re-mapping, no firmware compatibility testing, and no modification to the existing PROFIBUS GSD file used by the PLC master. The drive can be returned to service in under 30 minutes by a qualified technician — a critical advantage when every hour of downtime carries a measurable production cost.

For facilities managing multiple MASTERDRIVES units across several production lines, a pooled spare strategy is recommended: maintain one or two 6SE7024-7ED84-1HF4 boards at the plant level rather than one per drive. This approach reduces total inventory cost while ensuring that any single drive failure can be addressed within one shift. Combined with a documented parameter backup (using the MASTERDRIVES parameter cloning function or a DriveMonitor backup file), a pooled CBP2 spare can be deployed to any compatible drive in the facility without requiring a specialist to re-commission the unit from scratch.

When the MASTERDRIVES system is eventually migrated to a newer platform such as SINAMICS S120 or G120, the CBP2 spare inventory retains value during the transition period — legacy and new drives often operate in parallel for 12–24 months during phased upgrades, and maintaining CBP2 availability throughout this window prevents the legacy system from becoming the weakest link in the production chain.

Support FAQ

Q1: Is the 6SE7024-7ED84-1HF4 compatible with all MASTERDRIVES VC and MC frame sizes?
The CBP2 option board is compatible with MASTERDRIVES VC and MC units that feature a standard option slot. Compatibility depends on the drive’s firmware version and the option slot type (slot A or B). For compact and chassis units in the 6SE70xx series, the CBP2 is the standard PROFIBUS interface. If you are unsure of compatibility for a specific drive order number, please contact us with your full drive nameplate data and we will confirm before shipment.

Q2: What testing is performed before the board is shipped?
Every 6SE7024-7ED84-1HF4 unit is functionally tested prior to dispatch. Testing includes power-on verification, PROFIBUS node address configuration check, and communication handshake validation. Units that do not pass functional testing are not shipped. A 12-month warranty covers defects in materials and workmanship from the date of delivery.

Q3: How quickly can the board be replaced on-site, and does it require re-parameterization?
Physical replacement takes approximately 10–20 minutes: power down the drive, discharge the DC bus, remove the existing CBP2 from the option slot, insert the replacement, and restore power. If the drive’s parameter set is intact (stored in the CU board’s non-volatile memory), no re-parameterization of the CBP2 is required — the drive will automatically recognize the new board and resume PROFIBUS communication on the next power cycle. We recommend verifying the PROFIBUS node address (parameter P918) after replacement.

Q4: What is the recommended inventory strategy for facilities with multiple MASTERDRIVES units?
For facilities with 3–10 MASTERDRIVES units on a single PROFIBUS segment, we recommend maintaining a minimum of one CBP2 spare per segment. For larger installations or critical production lines where downtime cost exceeds the spare part cost within a single shift, two spares per facility is the industry-standard recommendation. Spares should be stored in anti-static packaging in a dry, temperature-controlled environment and inspected annually for any signs of corrosion or physical damage.
