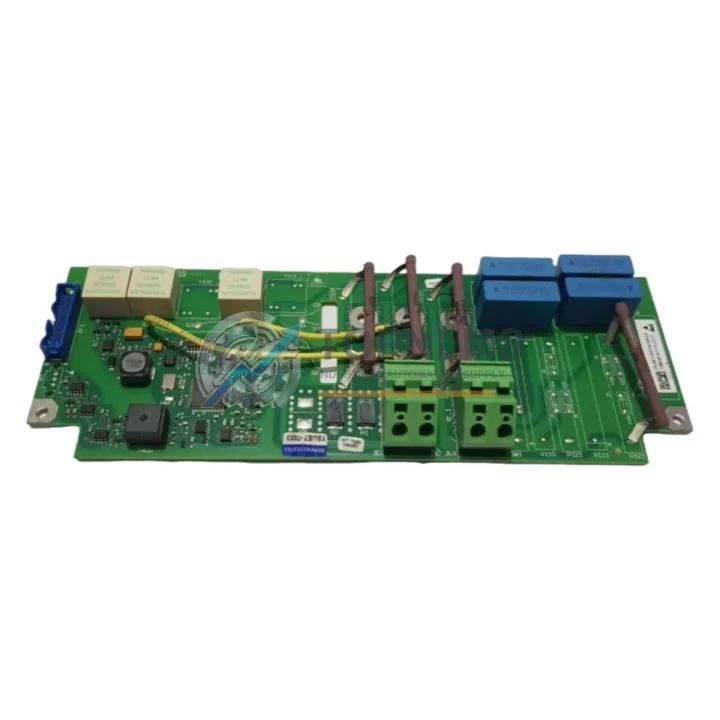

Siemens 6RY1803-0GA25 C98043-A7126-L100 Original Industrial Spare – SIMOREG DC MASTER System Stability & Reliable DC Drive Maintenance

The Siemens 6RY1803-0GA25 (C98043-A7126-L100) is the original thyristor firing control board engineered for the SIMOREG DC MASTER series of DC drive converters. In industrial environments where DC motor drives govern critical production lines — steel rolling mills, paper machines, extruders, hoists, and heavy-duty conveyors — the integrity of the thyristor firing circuit is non-negotiable. A failed or degraded firing board translates directly into unplanned downtime, production loss, and costly emergency procurement. Stocking this board as a verified spare is one of the most effective risk-mitigation decisions a maintenance engineer can make.

This board governs the precise gate-pulse timing that controls thyristor conduction angles, directly regulating armature voltage and motor speed. Its failure mode is typically sudden and complete — making a pre-positioned replacement unit the only reliable recovery path. The 6RY1803-0GA25 is a direct fit for SIMOREG DC MASTER 6RA70 series converters and is fully compatible with the original control architecture without firmware reconfiguration or hardware adaptation.

Critical Technical Specs

Preventive Maintenance Strategy for SIMOREG DC MASTER Systems

When a SIMOREG DC MASTER drive is taken offline for scheduled maintenance or emergency repair, the thyristor firing board is rarely the only component that warrants attention. Experienced maintenance teams treat a drive outage as an opportunity to audit the entire DC drive control cabinet — reducing the probability of a repeat failure within the same maintenance cycle.

During a cabinet inspection, the 6RY1803-0GA25 firing board should be evaluated alongside the CUD1 (6SE7090-0XX84-0AB0) main control board, which handles speed regulation, current control, and field weakening logic. A degraded CUD1 can produce erratic firing commands that stress the thyristor board prematurely. Similarly, the 6RY1700-0AA01 pulse transformer board — responsible for galvanic isolation of gate signals — should be inspected for insulation breakdown, as its failure can cause misfiring events that damage the thyristor stack.

The DC bus thyristor modules themselves (typically 6SY7010-0AA23 or equivalent stack assemblies) should be checked for forward voltage drop symmetry using a thyristor tester. An imbalanced stack places asymmetric load on the firing board and accelerates its degradation. While the cabinet is open, the 6RY1600-0AN61 field supply board should be verified for correct output voltage — field supply faults are a common root cause of armature overcurrent events that cascade into firing board failures.

Power supply integrity is equally critical. The A1 SMPS board (C98043-A7002) provides the low-voltage DC rails that power the control electronics. Capacitor aging in this supply is a known failure mode in drives that have been in service for more than eight years. Replacing or bench-testing this board during a planned outage eliminates a common cause of intermittent control faults. The fan assembly and thermal sensors should also be serviced — blocked airflow is the leading cause of thyristor junction overtemperature, which shortens the life of every board in the cabinet.

For drives integrated into larger automation architectures, the PROFIBUS DP communication module (6SE7090-0XX84-0FF5) or CBP2 board should be inspected for connector corrosion and firmware version compatibility, particularly if the host PLC or DCS has been updated. Terminal blocks, 24VDC auxiliary power fuses, and the motor encoder feedback cable (6FX2002 series) are low-cost items that are frequently overlooked but are responsible for a disproportionate share of nuisance faults and speed regulation errors.

A comprehensive spare parts kit for a SIMOREG DC MASTER installation should include the firing board, CUD1 control board, field supply board, SMPS board, and at least one set of thyristor modules — giving the maintenance team the ability to restore full drive functionality within a single shift, regardless of which component has failed.

Strategic Replacement Solutions

The SIMOREG DC MASTER 6RA70 platform has been in production since the mid-1990s and remains operational in thousands of industrial facilities worldwide. Siemens has transitioned its DC drive portfolio toward the SINAMICS DCM platform, meaning that original 6RA70 spare parts are increasingly sourced through specialist distributors rather than standard channels. Lead times for new-manufacture boards can extend to 8–16 weeks, making pre-positioned inventory the only viable strategy for facilities that cannot tolerate extended downtime.

The 6RY1803-0GA25 C98043-A7126-L100 offered here is an original Siemens board — not a third-party reproduction — ensuring full compatibility with the existing drive firmware, parameter sets, and safety interlocks. No re-commissioning or parameter re-entry is required beyond the standard board swap procedure outlined in the SIMOREG DC MASTER operating instructions (6RA70 series). This is a critical distinction: aftermarket firing boards with non-original gate-pulse timing characteristics can cause thyristor misfiring, increased harmonic distortion, and premature thyristor failure.

For facilities managing multiple DC drives, a centralized spare parts strategy — with one firing board allocated per two to three drives of the same type — provides the optimal balance between inventory carrying cost and downtime risk. TOPNLMS maintains stock of this board and related SIMOREG DC MASTER components, enabling same-day dispatch for verified orders.

Support FAQ

Q1: How do I verify that the 6RY1803-0GA25 is compatible with my specific SIMOREG DC MASTER drive?
Confirm the drive’s order number from the nameplate — it should begin with 6RA70. The C98043-A7126-L100 board is used across multiple 6RA70 variants. If you can provide your full drive order number, our technical team can confirm compatibility before shipment.

Q2: What is the shelf life and storage requirement for this spare board?
When stored in anti-static packaging in a dry, temperature-controlled environment (5–40°C, <75% RH non-condensing), the board has an effective shelf life of 5–7 years. All boards are stored under these conditions at our warehouse and are inspected before dispatch.

Q3: Is the board tested before shipment, and what does the 12-month warranty cover?
Yes — every board undergoes functional testing prior to dispatch. The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the specified environmental parameters.

Q4: What is the typical lead time and shipping process?
In-stock boards are dispatched within 1–2 business days. International shipments are sent via DHL Express or equivalent tracked courier with full export documentation. A test report and packing list are included with every shipment. Contact us to confirm current stock availability and lead time for your region.
