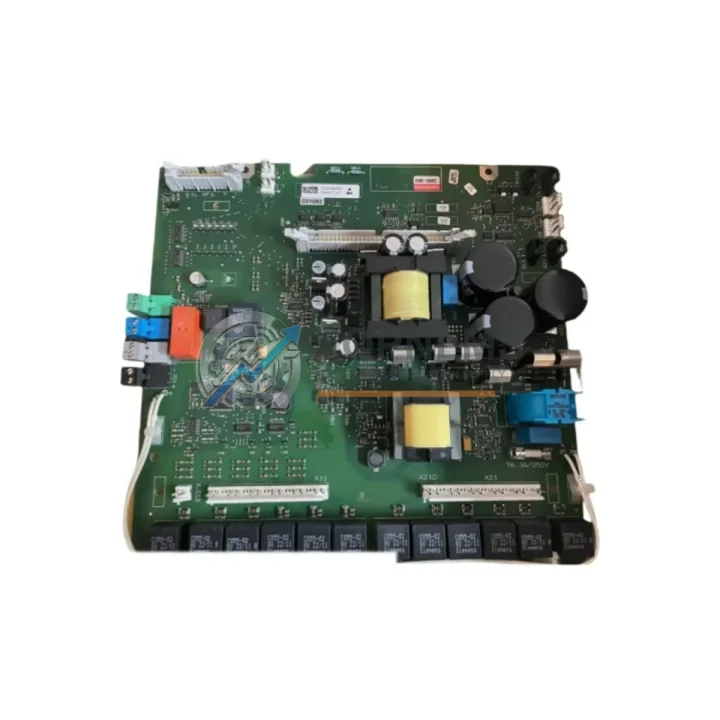

Siemens 6RY1803-0DB02 C98043-A7107-L4 Ruggedized DC Drive Power Supply Module for Harsh Industrial Environments

The Siemens 6RY1803-0DB02 C98043-A7107-L4 is a precision-engineered DC drive power supply board designed for the SIMOREG DC MASTER series — one of Siemens’ most trusted platforms for high-performance DC motor control in demanding industrial applications. Built to operate reliably under extreme conditions including high ambient temperatures, elevated humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference, this module is a critical backbone component for continuous production lines and heavy-industry control systems where unplanned downtime is simply not an option.

Whether deployed in a steel mill, a chemical processing plant, a mining hoist system, or a large-scale water treatment facility, the 6RY1803-0DB02 delivers stable, regulated DC power to the SIMOREG drive’s control and firing circuits. Its robust design ensures that even in environments where ambient temperatures fluctuate widely or where high-frequency switching noise from adjacent variable frequency drives (VFDs) and power converters is prevalent, the module maintains clean, consistent output — protecting the integrity of the entire drive system.

Rugged Specifications Table

Comprehensive Protection Solutions for DC Drive Control Systems

In a fully integrated SIMOREG DC MASTER control cabinet, the 6RY1803-0DB02 C98043-A7107-L4 power supply board works in close coordination with a range of companion modules and system components. The C98043-A7100 main control board relies on stable, regulated voltages from this power supply to execute precise firing angle calculations for the thyristor bridge. Alongside it, the C98043-A7101 pulse transformer board and the C98043-A7102 interface board depend on clean power rails to maintain signal integrity across the drive’s internal communication bus.

In installations where the SIMOREG DC MASTER is networked via PROFIBUS-DP, the CBP2 communication board (6SE7090-0XX84-0FF5) must receive uninterrupted power to sustain real-time data exchange with the plant’s PLC or DCS. A power interruption or voltage ripple from a degraded supply board can cause communication timeouts, triggering nuisance faults across the entire automation network. Similarly, the SLB synchronization board used in multi-drive configurations requires a stable reference from the power supply to maintain phase synchronization between parallel DC drives.

Beyond the drive itself, the reliability of this power supply module directly impacts the performance of connected field devices. Siemens SIMATIC S7-300 or S7-400 PLC systems that supervise the DC drive via hardwired I/O or PROFIBUS rely on consistent drive status signals — signals that originate from circuits powered by this board. In heavy-duty applications, the drive is often paired with Siemens SITOP power supply units for auxiliary 24 VDC control circuits, and with 3RT series contactors and 3RV circuit breakers for motor protection. Any instability in the DC drive’s internal power supply can cascade into false trips or erratic behavior across these protective devices.

For facilities running continuous production lines — such as wire drawing machines, rolling mills, or paper calenders — the 6RY1803-0DB02 is a mission-critical spare. Keeping a verified replacement in stock eliminates the risk of extended downtime caused by a failed internal power supply, which is one of the most common failure modes in aging SIMOREG DC MASTER installations.

Application in Critical Infrastructure

The Siemens 6RY1803-0DB02 C98043-A7107-L4 has a proven track record across some of the world’s most demanding industrial environments:

Steel & Metals Processing: In hot rolling mills and cold rolling lines, SIMOREG DC MASTER drives control the main roll drives and coiler/decoiler motors. The power supply board must withstand radiated heat from furnaces, heavy vibration from rolling stands, and high levels of conducted EMI from large thyristor rectifiers operating nearby. The 6RY1803-0DB02 is engineered to maintain stable output under all these stressors, ensuring that speed and torque regulation remain precise throughout the rolling process.

Mining & Hoisting: Underground mine hoists and conveyor drives operate in environments with high dust concentrations, moisture ingress, and significant mechanical shock. The SIMOREG DC MASTER platform — and by extension this power supply module — is designed for panel-mount installation in sealed control cabinets that protect against these hazards. Reliable power supply operation is essential to prevent hoist runaway or conveyor belt slippage, both of which carry serious safety implications.

Oil, Gas & Petrochemical: In pump stations, compressor drives, and wellhead control systems, DC drives must operate continuously for months without intervention. The 6RY1803-0DB02 supports this requirement by providing a stable internal power architecture that resists the effects of high ambient temperatures and corrosive atmospheres common in petrochemical facilities.

Water & Wastewater Treatment: Municipal water treatment plants rely on DC drives for pump speed control and sludge handling. These facilities operate 24/7, and any drive failure can disrupt water supply or environmental compliance. Having a tested, in-stock replacement for the 6RY1803-0DB02 is a standard part of responsible maintenance planning for plant engineers.

Pulp, Paper & Printing: Paper machine drives require extremely tight speed regulation across multiple drive sections. The SIMOREG DC MASTER’s precision control depends entirely on the integrity of its internal power supply. A degraded 6RY1803-0DB02 can introduce voltage ripple that manifests as speed variation, causing web breaks and product defects.

Security & Quality FAQ

Q1: What does the 12-month warranty cover?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform its specified function within the warranty period, we will provide a replacement or full refund. The warranty period begins from the date of shipment and is supported by our pre-shipment test documentation.

Q2: How is each unit tested before shipment?
Every 6RY1803-0DB02 C98043-A7107-L4 unit undergoes a multi-stage inspection process prior to dispatch. This includes visual inspection for physical damage, power-on functional testing to verify output voltage rails, and where applicable, load testing to confirm performance under operating conditions. A test report is available upon request for quality-critical procurement processes.

Q3: Is this module compatible with all SIMOREG DC MASTER variants?
The 6RY1803-0DB02 / C98043-A7107-L4 is designed as an internal power supply board for the Siemens SIMOREG DC MASTER 6RA70 series. It is a direct form-fit-function replacement for the original Siemens part. For specific compatibility confirmation with your drive’s firmware version or hardware revision, please contact our technical team with your drive’s nameplate data before ordering.

Q4: Can you support long-term or repeat supply requirements?
Yes. TOPNLMS maintains a dedicated inventory of SIMOREG DC MASTER spare parts, including the 6RY1803-0DB02, to support planned maintenance programs and emergency breakdown situations. We can accommodate blanket purchase orders, scheduled deliveries, and priority stock reservations for customers with ongoing supply requirements. Contact us to discuss a supply agreement tailored to your maintenance schedule.
