Siemens 6RY1803-0AA05-0AA1 Original Industrial Spare SIMOREG Compatible: DC Drive System Stability for Continuous Production

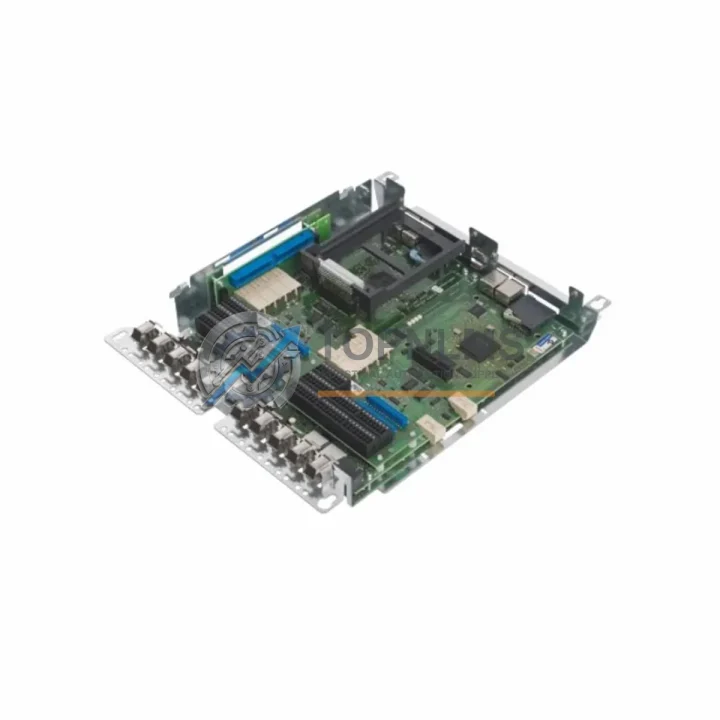

The Siemens 6RY1803-0AA05-0AA1 is an OEM-grade advanced electronic controller board (CUD1) engineered for the SIMOREG DC-MASTER series of fully digital DC drive converters — one of the most widely deployed DC drive platforms in heavy industry worldwide. In facilities where DC motor drives govern paper winders, steel rolling mills, extruders, hoists, and continuous process lines, the controller board is the nerve center of every drive: it executes the speed loop, current loop, field weakening model, and fault management simultaneously. A failed or degraded 6RY1803-0AA05-0AA1 brings the entire drive offline. A stocked, tested replacement restores full operation within the time it takes to swap and restore parameters.

At TOPNLMS, every unit is sourced through verified supply channels, individually inspected prior to dispatch, and covered by a 12-month warranty. We ship globally with full documentation support, enabling your maintenance team to execute a confident, traceable replacement — whether the event is planned or emergency.

Critical Technical Specs

Preventive Maintenance Strategy for SIMOREG DC-MASTER Systems

When a SIMOREG DC-MASTER drive trips on fault codes pointing to the electronics section — F025 (hardware fault), F030 (parameter memory error), or persistent F001/F002 current regulation faults that survive thyristor and feedback checks — the 6RY1803-0AA05-0AA1 controller board is the primary replacement candidate. However, experienced maintenance engineers know that replacing a single board in isolation rarely addresses the full picture of a degraded drive cabinet. A structured inspection at the time of the board swap converts a reactive repair into a comprehensive preventive maintenance event.

Begin with the power supply section: the SIMOREG’s internal SMPS board — such as the 6RY1802-0AA00 power supply module — provides the regulated DC rails that feed the controller board. A marginal power supply causes intermittent controller resets that mimic board failure; always verify rail voltages under load before condemning the CUD1. While the cabinet is open, inspect the thyristor firing pulse board and associated gate drive cables. Degraded pulse transformers produce asymmetric firing angles that stress the controller’s current regulation loop and accelerate wear on the power semiconductors.

The speed feedback chain deserves equal attention. The tachogenerator or encoder signal passes through the 6RY1800-0AN00 tachometer adapter board before reaching the controller. A noisy or attenuated feedback signal forces the speed controller into saturation — a symptom easily misdiagnosed as controller board failure. Simultaneously, verify the armature current feedback shunt and its signal conditioning circuit; current measurement errors directly corrupt the torque control loop and can trigger nuisance trips that are logged against the controller.

For drives in high-temperature or dusty environments, inspect the fan and thermal management assembly. Blocked heatsink fins or a failing cooling fan — such as a Siemens 6SY7010-0AA20 or equivalent frame-size unit — cause thermal derating that manifests as unexplained torque limiting, a symptom frequently blamed on the controller before the thermal path is checked. On the field side, inspect the field supply module (6RA2428-6DV62 or equivalent) and the field current feedback circuit. Weak or oscillating field current destabilizes the flux model inside the controller, producing erratic speed regulation under load.

If the drive communicates via PROFIBUS, reseat the CBP2 communication board and verify its termination resistor. A floating bus generates spurious fault responses logged against the controller. Finally, review the terminal strip and control wiring at the X100/X101 analog I/O terminals and the X300 digital I/O block. Loose connections introduce noise into reference and feedback signals. Torque all terminals to specification and apply contact enhancer to the edge connector between the CUD1 board and the drive backplane. This full inspection — covering the power supply module, tachometer adapter, thyristor pulse board, field supply, CBP2 communication board, and I/O terminal strips — significantly extends the interval to the next intervention and maximizes the value of the 6RY1803-0AA05-0AA1 replacement event.

Strategic Replacement Solutions

The SIMOREG DC-MASTER platform has been in service since the mid-1990s and remains deeply embedded in heavy industry globally. Siemens has transitioned its DC drive portfolio toward the SINAMICS DCM series, meaning 6RA70-series spare parts are increasingly sourced through specialist distributors rather than standard catalog channels. The 6RY1803-0AA05-0AA1 is one of the highest-demand spare items in this ecosystem precisely because it governs all core drive functions in a single replaceable assembly — making it the most efficient single-part intervention for restoring a faulted SIMOREG DC-MASTER.

For plants operating multiple SIMOREG DC-MASTER drives, the most cost-effective strategy is to maintain at least one 6RY1803-0AA05-0AA1 board per drive family on the shelf. A single unplanned shutdown on a critical DC drive — a main mill drive, a winder, or a hoist — can cost multiples of the spare part value within the first hour of downtime. Holding a tested, warranted spare eliminates lead-time risk entirely and gives maintenance planners the confidence to schedule the replacement during a controlled window rather than an emergency.

For sites considering migration to SINAMICS DCM, the 6RY1803-0AA05-0AA1 also supports a phased approach: keep the existing SIMOREG hardware operational with a fresh controller board while engineering resources plan the retrofit. This avoids forced emergency upgrades driven by parts unavailability and allows migration to be executed on a planned schedule with proper commissioning time and budget allocation.

All units supplied by TOPNLMS are dispatched with a pre-shipment functional test report, original or equivalent packaging, and a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Expedited shipping is available for urgent maintenance requirements.

Support FAQ

Q1: Is the 6RY1803-0AA05-0AA1 compatible with all SIMOREG DC-MASTER 6RA70 variants?
The 6RY1803-0AA05-0AA1 is the advanced CUD1 controller board used across the SIMOREG DC-MASTER 6RA70 series. Compatibility depends on the specific drive frame size and firmware revision. Please provide your full drive nameplate data — complete 6RA70-XXXXX order number and firmware version from the existing board label — when ordering, and our technical team will confirm fitment before dispatch.

Q2: How is the board verified as functional before shipment?
Each unit undergoes a pre-shipment inspection covering visual examination, connector integrity check, and functional power-up verification where test-bench facilities permit. A test report accompanies every shipment. The 12-month warranty provides additional assurance: any unit that fails under normal operating conditions within the warranty period will be replaced or refunded.

Q3: What is the recommended inventory strategy for plants with multiple SIMOREG DC-MASTER drives?
For facilities with three or more SIMOREG DC-MASTER drives, we recommend holding a minimum of one 6RY1803-0AA05-0AA1 board as a critical spare. For high-criticality applications — continuous process lines, hoists, or drives without bypass capability — consider one spare per drive. Pair the controller board with a spare 6RY1802-0AA00 power supply module and a set of thyristor gate drive cables to cover the most common failure modes in a single maintenance kit.

Q4: Can the replacement board be installed without Siemens commissioning software?
A direct board swap requires parameter backup and restore using SIMOREG DriveMonitor or STARTER software, or manual parameter transcription. If the existing board is non-functional and parameters were not previously backed up, recommissioning from motor nameplate data is required. TOPNLMS can provide parameter set guidance based on your drive order number. We strongly recommend maintaining a parameter backup file for all drives as part of standard preventive maintenance documentation.
