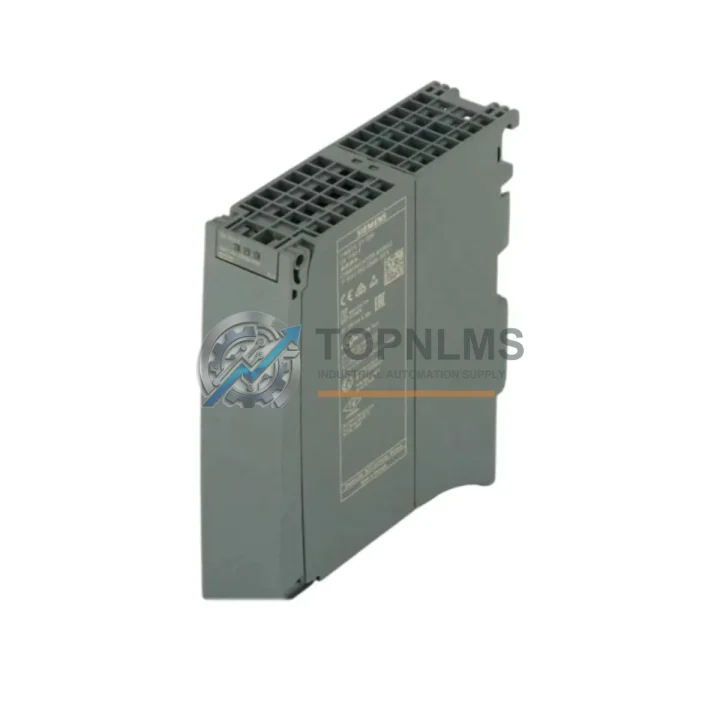

Siemens 6GK7542-5DX00-0XE0 Ruggedized PROFIBUS CP Module

Product Overview

Siemens 6GK7542-5DX00-0XE0 Ruggedized PROFIBUS CP Module: Industrial Resilience for Harsh Environments

The Siemens 6GK7542-5DX00-0XE0 is a high-performance CP 5420 PROFIBUS communication processor engineered for the SIMATIC S7-1500 controller platform. Designed to operate reliably in the most demanding industrial environments — including high-temperature process areas, high-humidity coastal facilities, dust-laden mining sites, vibration-intensive heavy machinery lines, and zones with severe electromagnetic interference — this module delivers uninterrupted PROFIBUS DP master/slave communication where system uptime is non-negotiable.

Built to Siemens’ SIMATIC NET industrial networking standards, the 6GK7542-5DX00-0XE0 integrates seamlessly into S7-1500 control cabinets, providing deterministic, real-time fieldbus connectivity across distributed I/O nodes, variable frequency drives, safety modules, and remote field devices. Its ruggedized design ensures stable signal integrity even under continuous mechanical vibration and wide thermal cycling, making it a trusted backbone component in continuous production lines and critical infrastructure installations.

Rugged Specifications Table

Comprehensive Protection Solutions

In a fully integrated S7-1500 control architecture, the 6GK7542-5DX00-0XE0 CP 5420 does not operate in isolation — it is the communication backbone that ties together an entire ecosystem of safety-critical and process-critical components. On the controller side, it works in concert with S7-1500 CPUs such as the CPU 1515-2 PN and CPU 1516-3 PN/DP, sharing the high-speed backplane bus to deliver low-latency PROFIBUS DP cycle times even under heavy I/O polling loads.

Distributed I/O expansion is typically handled by ET 200SP or ET 200M remote I/O stations connected as PROFIBUS DP slaves, allowing field signals from sensors, actuators, and transmitters to be aggregated and transmitted reliably to the S7-1500 CPU. In drive-intensive applications — such as conveyor systems, compressor stations, or pump arrays — the CP 5420 manages cyclic communication with SINAMICS G120 and SINAMICS S120 variable frequency drives, enabling precise speed and torque control over PROFIBUS without additional gateway hardware.

For functional safety applications, the 6GK7542-5DX00-0XE0 supports PROFIsafe protocol, allowing it to communicate with F-I/O modules such as the ET 200SP F-DI and F-DO safety modules, as well as SIRIUS 3SK safety relays and safety door monitoring units. This makes it an essential component in SIL 2 and SIL 3 safety loops where certified, deterministic communication is mandated by IEC 61508 and IEC 62061.

On the power and protection side, SITOP PSU8600 modular power supplies and SIMATIC S7-1500 PM 70W power modules provide the stable DC bus that the CP 5420 and its connected field devices depend on. Terminal modules such as the SIMATIC S7-1500 TM (terminal module) and WAGO 750-series I/O terminals are commonly deployed in the same control cabinet, and the CP 5420’s robust EMC shielding ensures that high-frequency switching noise from adjacent VFDs or contactors does not corrupt PROFIBUS frame integrity.

For plants requiring both PROFIBUS and PROFINET coexistence, the 6GK7542-5DX00-0XE0 is often paired with the CM 1542-5 PROFIBUS communication module or the CP 1543-1 Industrial Ethernet module, creating a dual-network architecture that bridges legacy PROFIBUS field devices with modern PROFINET-based supervisory systems — a common requirement in brownfield modernization projects across petrochemical and power generation facilities.

Application in Critical Infrastructure

Oil & Gas: In upstream and midstream oil and gas facilities, the CP 5420 is deployed in explosion-protected control cabinets (Zone 2 / ATEX-rated enclosures) to manage PROFIBUS communication between S7-1500 safety PLCs and field instruments including pressure transmitters, flow meters, and emergency shutdown valve actuators. Its tolerance for wide ambient temperature swings — from cold northern pipeline stations to hot desert compression facilities — ensures continuous operation without thermal derating.

Mining & Mineral Processing: Underground and open-pit mining environments subject control hardware to extreme vibration, coal dust ingress, and high humidity. The 6GK7542-5DX00-0XE0’s IEC 60068-2-6 vibration compliance and sealed backplane connection make it a preferred choice for conveyor drive control, crusher automation, and ventilation management systems where unplanned downtime carries significant safety and financial consequences.

Power Generation & Utilities: In thermal, hydro, and wind power plants, the CP 5420 handles PROFIBUS DP communication between turbine control PLCs and distributed protection relay panels, excitation systems, and grid synchronization modules. Its high EMC immunity (EN 61000-6-2) is critical in high-voltage switchgear environments where electromagnetic interference levels far exceed those found in standard manufacturing facilities.

Water & Wastewater Treatment: Municipal and industrial water treatment plants rely on the 6GK7542-5DX00-0XE0 to maintain reliable communication between S7-1500 controllers and PROFIBUS-connected pump drives, chlorination dosing systems, and SCADA remote terminal units. The module’s resistance to condensing humidity and corrosive atmospheres ensures long service life in wet process areas.

Metallurgy & Steel: In electric arc furnace control, rolling mill automation, and continuous casting lines, the CP 5420 manages high-speed PROFIBUS DP cycles to synchronize drive systems, cooling water valves, and pyrometer inputs. Its ability to sustain communication integrity under intense radiated EMI from high-current bus bars and induction heating equipment is a key differentiator in this sector.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the 6GK7542-5DX00-0XE0?
All units supplied by TOPNLMS carry a 12-month functional warranty from the date of shipment. If the module fails under normal operating conditions within the warranty period, we provide a free replacement or full refund. Our warranty covers manufacturing defects and functional failures — not physical damage caused by incorrect installation or overvoltage events.

Q2: How is each unit tested before shipment?
Every 6GK7542-5DX00-0XE0 unit undergoes a multi-point pre-shipment inspection that includes visual inspection for physical integrity, power-on functional verification, PROFIBUS interface communication test, and firmware version confirmation. Units that do not pass all test criteria are quarantined and not shipped. A test report is available upon request for critical infrastructure procurement.

Q3: Is this module compatible with all S7-1500 CPU variants and TIA Portal versions?
The CP 5420 (6GK7542-5DX00-0XE0) is compatible with all standard and fail-safe S7-1500 CPU variants. Configuration is performed via STEP 7 in TIA Portal V14 SP1 and later. For legacy integration projects using STEP 7 Classic (V5.x), please contact our technical team to confirm compatibility with your specific project configuration.

Q4: Can TOPNLMS guarantee long-term supply and replacement support for this module?
Yes. TOPNLMS maintains dedicated stock of CP 5420 and related SIMATIC NET communication modules to support both planned maintenance schedules and emergency breakdown replacements. We understand that industrial facilities cannot afford extended lead times for critical spare parts. Our standard in-stock orders ship within 1–3 business days, and we offer expedited shipping for urgent breakdown situations. For long-term supply agreements or blanket purchase orders, please contact our sales team directly.
