Siemens 6GK7542-1AX00-0XE0 CP 1542-1 Replacement

Product Overview

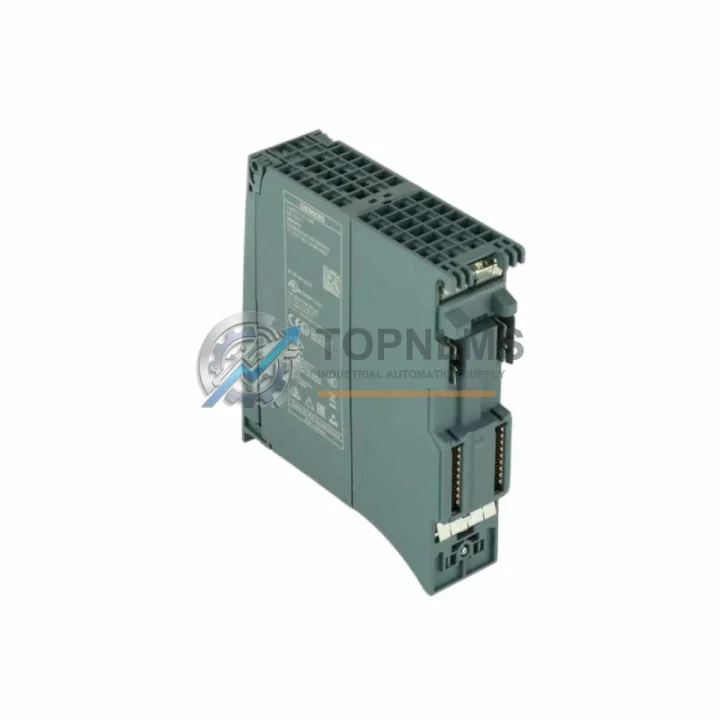

Siemens 6GK7542-1AX00-0XE0 CP 1542-1 PROFINET Replacement & Upgrade Solution for S7-1500

The Siemens 6GK7542-1AX00-0XE0 is a high-performance Communications Processor (CP 1542-1) designed for the SIMATIC S7-1500 controller platform. As legacy PROFINET infrastructure ages and original CP modules approach end-of-life, engineering teams face increasing pressure to source verified replacement units or plan structured migration paths that preserve existing wiring, cabinet layouts, and TIA Portal program logic. This product page provides a complete technical and procurement reference for facilities undertaking that transition.

The CP 1542-1 integrates directly into the S7-1500 rack via the backplane bus, requiring no additional interface adapters. It supports PROFINET IO Controller and IO Device roles simultaneously, enabling flexible network topologies without redesigning the control architecture. For plants currently running older CP modules such as the CP 343-1 Advanced (6GK7343-1GX31-0XE0) on S7-300 platforms, or the CP 443-1 Advanced (6GK7443-1EX30-0XE0) on S7-400 racks, migration to the 6GK7542-1AX00-0XE0 represents a well-documented upgrade path supported by Siemens TIA Portal V15 and later.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from an S7-300 or S7-400 PROFINET network to an S7-1500 architecture with the 6GK7542-1AX00-0XE0 typically involves coordinating several interdependent components. The SIMATIC S7-1500 CPU 1515-2 PN (6ES7515-2AM02-0AB0) is the most common host controller paired with this CP module in mid-to-large distributed I/O applications, offering dual PROFINET interfaces and sufficient process data capacity for complex topologies.

On the I/O side, facilities migrating from S7-300 distributed racks often retain their existing ET 200SP HA or ET 200MP remote I/O stations, which connect to the CP 1542-1 as PROFINET IO Devices without requiring rewiring at the field level. Signal modules such as the SM 521 DI 16×24VDC (6ES7521-1BH10-0AA0) and SM 522 DQ 16×24VDC (6ES7522-1BH10-0AA0) can be retained in existing ET 200MP frames, preserving field wiring and reducing retrofit labor costs significantly.

For facilities that previously relied on CP 343-1 Lean (6GK7343-1CX10-0XE0) modules for basic Ethernet connectivity, the upgrade to CP 1542-1 introduces OPC UA server capability, enabling direct data exchange with SCADA systems, MES platforms, and cloud historians without additional gateway hardware. This is particularly relevant for plants integrating with Siemens SINEMA Remote Connect or third-party SCADA systems via standard OPC UA subscriptions.

Power infrastructure should also be reviewed during migration. The SIMATIC PM 70W 24VDC (6EP1333-4BA00) is the standard system power module for S7-1500 racks and must be verified for adequate load capacity when adding the CP 1542-1 alongside CPU and I/O modules. In high-density cabinets, the PM 190W 24VDC (6EP1336-3BA00) is recommended to provide headroom for future expansion.

Programming cable and commissioning tooling should not be overlooked. The SIMATIC NET PC Software and a standard USB/RJ45 programming adapter compatible with TIA Portal V15+ are required for initial CP configuration, IP address assignment, and PROFINET device naming. Existing STEP 7 Classic projects must be migrated using the TIA Portal Migration Tool before the CP 1542-1 can be fully commissioned.

For applications requiring signal isolation between legacy 4–20 mA analog loops and the new PROFINET network, SIMATIC ET 200SP analog input modules (6ES7134-6GD01-0BA1) with integrated signal conditioning provide a clean interface without external isolators, simplifying cabinet wiring and reducing panel footprint.

Retrofit Guidance FAQ

Q: Can I reuse existing RJ45 PROFINET cabling when replacing a CP 343-1 with the 6GK7542-1AX00-0XE0?
A: Yes. The CP 1542-1 uses standard Cat5e/Cat6 RJ45 Ethernet cabling. Existing structured cabling infrastructure is fully compatible. The integrated 2-port switch allows daisy-chain topologies without additional network switches in simple line configurations.

Q: Do I need to rewrite my STEP 7 program logic after installing the CP 1542-1?
A: The TIA Portal Migration Tool automates the conversion of STEP 7 V5.x projects to TIA Portal format. Communication function blocks (FC/FB) used for TCP/IP or ISO-on-TCP connections will require remapping to the new TCON/TSEND/TRCV instruction set in TIA Portal, but the underlying logic structure is preserved.

Q: Is the CP 1542-1 compatible with existing PROFINET IO Device configurations on the network?
A: Yes. The 6GK7542-1AX00-0XE0 supports PROFINET V2.3 and is backward compatible with V2.2 IO Devices. Existing GSDML device descriptions remain valid, and IO Device addresses do not need to change during the controller migration.

Q: What physical space does the CP 1542-1 require in the S7-1500 rack?
A: The module occupies one standard S7-1500 slot (35 mm width). It must be installed in slot 1 or higher (not slot 0, which is reserved for the CPU). Verify rack slot availability before ordering, particularly in fully populated 8-slot or 11-slot racks.

Q: Can the CP 1542-1 communicate with legacy S7-300/400 PLCs still on the network during a phased migration?
A: Yes. S7 communication (PUT/GET) and ISO-on-TCP connections allow the CP 1542-1 to exchange data with legacy S7-300 and S7-400 controllers during a phased cutover, enabling parallel operation without full network redesign.

Q: What happens if the CP 1542-1 fails during operation?
A: Hot-swap replacement is supported on S7-1500 racks with the CPU in STOP mode. Configuration is stored on the SIMATIC Memory Card in the CPU, so a replacement CP module is automatically configured upon insertion after a firmware-compatible swap.

Warranty Assurance

Every Siemens 6GK7542-1AX00-0XE0 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes functional verification including power-on self-test, PROFINET port link validation, and firmware version confirmation. Units are shipped in anti-static packaging with original or equivalent protective inserts to prevent transit damage.

In the event of a confirmed hardware defect within the warranty period, TOPNLMS provides a replacement unit or full refund at the buyer’s discretion. Our technical support team responds to warranty claims and commissioning queries within 1 business day. Replacement units for in-warranty failures are prioritized for same-week dispatch from our Xiamen warehouse stock.

For procurement teams requiring documentation, we provide a shipment inspection report, packing list, and commercial invoice with each order. Bulk orders of 3 or more units qualify for pre-shipment batch testing with a signed test report. Lead time for stocked units is typically 3–7 business days to major international destinations.

Contact our sales team to confirm current stock availability, request a formal quotation, or discuss volume pricing for maintenance contracts and MRO procurement programs.
