Siemens 6GK5991-1AF00-8AA0 Original Industrial Spare SCALANCE X Compatible

Product Overview

Siemens 6GK5991-1AF00-8AA0 Original Industrial Spare SCALANCE X Compatible: Securing Network Stability in Industrial Environments

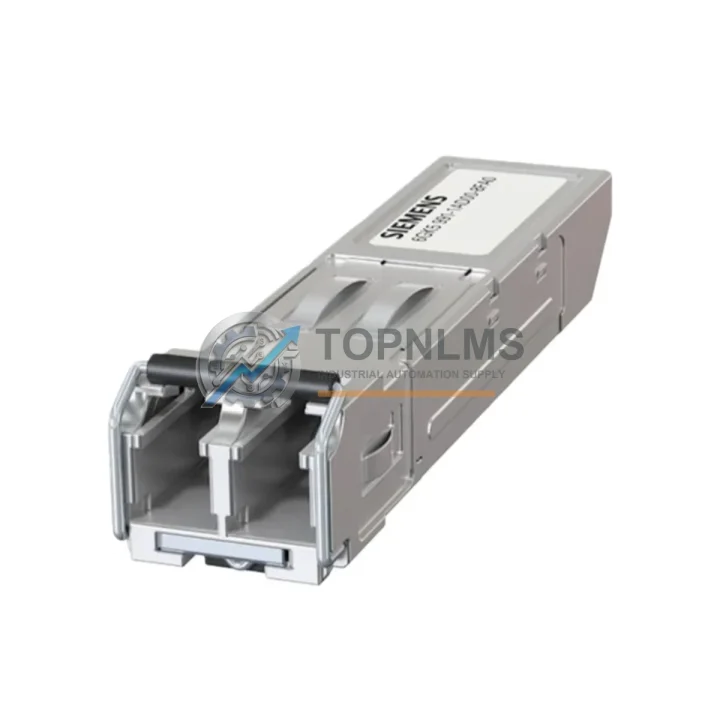

The Siemens 6GK5991-1AF00-8AA0 is an original fibre optic transceiver module designed for the SCALANCE X managed industrial Ethernet switch family. In modern manufacturing plants, process automation facilities, and critical infrastructure environments, the integrity of the industrial communication network is as vital as any mechanical or electrical component. A failed or degraded fibre optic transceiver can silently degrade network throughput, introduce latency into time-sensitive PROFINET or Industrial Ethernet communications, and ultimately trigger unplanned downtime across an entire production line. Sourcing a verified original replacement — tested, serialised, and backed by a 12-month warranty — is the single most effective action a maintenance team can take to restore system stability and protect uptime.

The 6GK5991-1AF00-8AA0 transceiver module slots directly into compatible SCALANCE X series switches, including the SCALANCE X-200, X-300, and X-400 platform variants, maintaining the original fibre topology without requiring any reconfiguration of the managed switch or the PROFINET controller. This plug-and-play compatibility is critical during emergency shutdowns where every minute of downtime carries measurable production cost.

Critical Technical Specs

Preventive Maintenance Strategy

Experienced maintenance engineers know that a fibre optic transceiver failure rarely occurs in isolation. The 6GK5991-1AF00-8AA0 operates within a broader SCALANCE X switch assembly, and when scheduling a planned replacement or responding to a network fault, it is sound practice to inspect and — where appropriate — pre-stock the surrounding components that share the same operational lifecycle and failure exposure.

Begin with the SCALANCE X managed switch unit itself (such as the SCALANCE X208 or X216), verifying that the switch firmware is current and that no port errors are logged in the diagnostic buffer. Alongside the transceiver, inspect the fibre optic patch cables (ST-to-ST or ST-to-SC duplex multi-mode cables) for physical damage, contamination on the ferrule end-faces, and excessive bend radius — degraded cables are a leading cause of transceiver signal loss that is often misdiagnosed as a module failure.

Within the same control cabinet, the SCALANCE X power supply module (such as the 6GK5799-series redundant PSU) should be checked for output voltage stability, as undervoltage conditions accelerate optical component wear. If the cabinet also houses a SIMATIC S7-300 or S7-400 CPU module communicating over this fibre segment, verify the CPU’s PROFINET interface diagnostics for CRC errors or port resets that may indicate intermittent transceiver performance before full failure.

For facilities running SIMATIC ET 200M or ET 200S distributed I/O connected via the SCALANCE X backbone, a transceiver replacement window is the ideal time to inspect the IM 153-x interface modules and associated terminal block assemblies for oxidation or loose connections. Similarly, if the network segment supports SIMATIC S7-1500 controllers with integrated PROFINET ports, confirm that the controller’s port diagnostics show clean link establishment after the transceiver swap.

Maintenance teams should also review the SCALANCE X network management configuration — SNMP traps, RSTP topology, and port mirroring settings — to ensure that the replacement transceiver is correctly recognised by the network management system (such as SINEMA Network Manager or STEP 7 / TIA Portal hardware configuration). Keeping a spare SCALANCE X SFP or BFOC transceiver module of the same part number in the local maintenance store eliminates the risk of extended downtime caused by procurement lead times, which in some regions can extend to several weeks for specialised industrial networking components.

Finally, for older SCALANCE X installations approaching end-of-life, consider auditing the full switch population and creating a structured spare parts plan that covers not only transceivers but also SCALANCE X management modules, redundancy manager modules, and 24 VDC power feed terminals. A proactive inventory of these components — sized to cover the mean time between failures for your specific production environment — is the most cost-effective insurance against unplanned network outages.

Strategic Replacement Solutions

The 6GK5991-1AF00-8AA0 is a direct original replacement for ageing or failed fibre optic transceiver modules within the SCALANCE X platform. Unlike third-party or counterfeit alternatives that may present incompatible optical power budgets or non-compliant signalling characteristics, this original Siemens module ensures that the host switch’s diagnostic functions — including optical power monitoring and link fault detection — operate as designed.

For facilities that have been running SCALANCE X switches for more than five years, the transceiver module is statistically one of the first components to require replacement, ahead of the switch chassis itself. Replacing the transceiver with an original 6GK5991-1AF00-8AA0 extends the operational life of the existing switch infrastructure without requiring a full network redesign or switch replacement, preserving the capital investment in the installed SCALANCE X topology and avoiding the engineering effort of reconfiguring managed switch parameters, VLAN assignments, and PROFINET device names.

In multi-site or multi-line facilities, standardising on the 6GK5991-1AF00-8AA0 as the approved spare across all SCALANCE X fibre ports simplifies procurement, reduces the risk of incorrect part substitution during emergency maintenance, and enables maintenance staff to execute replacements confidently without specialist networking knowledge. Each unit dispatched from TOPNLMS is individually tested for optical output power and receiver sensitivity before shipment, with a serialised test record available on request.

Support FAQ

Q1: Is the 6GK5991-1AF00-8AA0 compatible with all SCALANCE X series switches?
The 6GK5991-1AF00-8AA0 is designed for SCALANCE X series switches that feature BFOC/2.5 (ST-type) fibre optic ports. Compatibility should be verified against the specific switch model’s hardware manual or the Siemens Industry Online Support (SIOS) product compatibility matrix before installation. TOPNLMS technical staff can assist with compatibility verification prior to order confirmation.

Q2: What testing is performed before shipment?
Every 6GK5991-1AF00-8AA0 unit is powered and tested for optical transmit power output and receiver sensitivity prior to dispatch. Units that do not meet Siemens original specification are quarantined and not shipped. A 12-month warranty is provided from the date of invoice, covering manufacturing defects and functional failure under normal operating conditions.

Q3: How should I manage spare transceiver inventory for a large SCALANCE X installation?
Industry best practice for critical industrial network infrastructure is to maintain a minimum of one spare transceiver per ten installed ports, with a higher ratio for single-path (non-redundant) fibre segments. For SCALANCE X installations with ring redundancy (MRP or HRP), a single spare per ring segment is the recommended minimum. TOPNLMS can support bulk procurement with volume pricing for planned spare parts programmes.

Q4: Can this transceiver be installed without taking the switch offline?
SCALANCE X switches with hot-swap capable transceiver slots allow the 6GK5991-1AF00-8AA0 to be replaced without powering down the switch chassis, minimising disruption to other active ports. However, the specific port will experience a brief link-down event during the physical swap. Maintenance teams should coordinate with the control system operator to ensure that the PROFINET controller or DCS system is in a safe state for the affected network segment before proceeding.
