Siemens 6GK5602-0BA10-2AA3 Replacement for SCALANCE S Series

Product Overview

Siemens 6GK5602-0BA10-2AA3 Replacement for SCALANCE S Series: Seamless Transition & Legacy System Upgrade

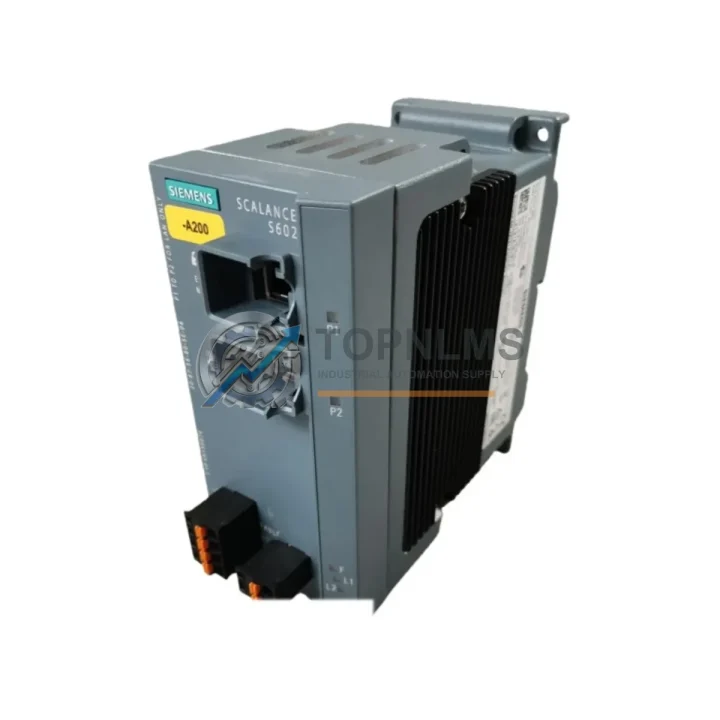

The Siemens 6GK5602-0BA10-2AA3 is a SCALANCE S602 Industrial Security Module designed to provide stateful packet inspection firewall protection and IPsec VPN tunneling for automation networks. As industrial facilities modernize their control infrastructure, this module serves as a direct replacement or upgrade path for earlier SCALANCE S601 and S612 variants that have reached end-of-life or are no longer supported under current Siemens firmware cycles. Whether you are migrating from a legacy SIMATIC NET architecture or consolidating security zones within an existing PROFINET or Industrial Ethernet backbone, the 6GK5602-0BA10-2AA3 delivers a smooth, low-disruption transition with minimal re-engineering of your existing network topology.

Industrial plants running older Siemens S7-300 or S7-400 PLC systems often rely on SCALANCE S-series modules to segment their OT networks from corporate IT infrastructure. When the original SCALANCE S601 or S612 units fail or become obsolete, the 6GK5602-0BA10-2AA3 provides a functionally compatible replacement that preserves existing firewall rule sets and VPN tunnel configurations with only minor parameter adjustments in STEP 7 or TIA Portal. The module supports up to 128 firewall rules, 32 VPN tunnels, and operates on standard 24 V DC rail-mount power, making it physically and electrically compatible with most existing control cabinet layouts without requiring additional power supply modifications.

For facilities operating SIMATIC S7-1200 or S7-1500 controllers alongside SCALANCE X-series managed switches, integrating the 6GK5602-0BA10-2AA3 into the existing rack or DIN rail assembly is straightforward. The module’s dual-port Ethernet interface (internal and external zone separation) aligns with standard DMZ architectures used in process automation, and its PROFINET-compatible management interface allows configuration via the SINEMA Remote Connect platform or direct web-based management. Engineers migrating from older CP 343-1 or CP 443-1 communication processors will find that the security zoning logic translates directly, reducing commissioning time on the plant floor.

Wiring compatibility is a key consideration during any retrofit. The 6GK5602-0BA10-2AA3 uses standard RJ45 Ethernet ports and a 24 V DC screw-terminal power connector, which are identical to those found on the SCALANCE S601 and most SCALANCE X208 or X216 switch installations. This means existing cable runs, patch panels, and terminal blocks in the control cabinet can be reused without modification. For sites using fiber uplinks via SCALANCE X-series media converters, the copper-to-fiber transition remains upstream of the security module and is unaffected by the replacement.

Communication protocol compatibility is fully maintained. The module supports PROFINET IO, Modbus TCP pass-through, and standard TCP/IP routing, ensuring that SCADA systems communicating with field devices via OPC-UA or legacy Modbus RTU-to-TCP gateways continue to operate without interruption. Sites using Siemens SINAUT telecontrol or WinCC SCADA platforms will not require protocol gateway reconfiguration, as the 6GK5602-0BA10-2AA3 is transparent to application-layer traffic while enforcing network-layer security policies.

For larger migration projects involving full control cabinet redesigns, the 6GK5602-0BA10-2AA3 pairs naturally with the SCALANCE X005 unmanaged switch for simple device-level segmentation, the SCALANCE W700 series wireless access points for mobile HMI connectivity, and the SIMATIC IPC427E industrial PC for centralized SCADA hosting. Engineers replacing entire network security infrastructure may also consider the SCALANCE S615 as a next-generation alternative for sites requiring LTE/4G remote access, while the 6GK5602-0BA10-2AA3 remains the preferred like-for-like replacement for existing S602 installations where budget and downtime constraints favor minimal change.

Procurement teams sourcing replacement modules for planned or emergency maintenance will find that TOPNLMS maintains verified stock of the 6GK5602-0BA10-2AA3 with same-week dispatch from our Xiamen warehouse. Each unit undergoes functional verification prior to shipment, and all modules are supplied with original Siemens packaging and documentation where available. For multi-unit orders supporting spare parts programs or scheduled plant shutdowns, volume pricing and priority allocation are available upon request.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete network security retrofit rarely involves a single module. When replacing the 6GK5602-0BA10-2AA3 in an existing SCALANCE S-series installation, engineers typically address the surrounding infrastructure in the same maintenance window to avoid repeat downtime. The SCALANCE X005 unmanaged switch is commonly replaced alongside the security module to refresh the device-level network segment, while the SCALANCE X208 managed switch handles VLAN segmentation for multi-zone architectures. For sites with remote access requirements, the SCALANCE S615 provides LTE-capable VPN termination as a complementary or successor device.

Power integrity is critical in control cabinet retrofits. The SITOP PSU100S 24V/5A power supply module is frequently specified alongside security module replacements to ensure stable 24 V DC rail voltage, particularly in older cabinets where the original PSU may be undersized for expanded network equipment. Signal isolation between the OT network and field devices is maintained using SIMATIC ET 200SP distributed I/O modules, which communicate via PROFINET through the security module’s internal zone port.

For HMI connectivity, the SIMATIC HMI KTP700 Basic panel connects to the internal network zone via the security module, with firewall rules configured to permit HMI-to-PLC traffic while blocking unauthorized access. Programming and commissioning of the replacement module is performed using a standard SIMATIC programming cable (USB-MPI/DP) or direct Ethernet connection to a TIA Portal engineering station. For sites using legacy STEP 7 V5.x, the Security Configuration Tool (SCT) remains compatible with the 6GK5602-0BA10-2AA3 for rule migration from older S601/S612 configurations.

Where signal conditioning is required between legacy 4–20 mA analog field devices and the digital control network, SIMATIC S7-1200 SM 1231 analog input modules provide the interface layer, with data routed through the PROFINET network protected by the 6GK5602-0BA10-2AA3. This end-to-end architecture — from field sensor through I/O module, PLC, and security module to SCADA — can be refreshed incrementally, with the security module replacement serving as the network boundary anchor point for the entire migration.

Retrofit Guidance FAQ

Q: Can I reuse my existing firewall rules from the SCALANCE S601 or S612?
A: Yes. Siemens’ Security Configuration Tool (SCT) supports export and import of rule sets between S-series generations. Most rule configurations migrate directly; VPN pre-shared keys and certificate-based authentication settings require re-entry but the tunnel topology is preserved.

Q: Will my PROFINET devices lose communication during the module swap?
A: The swap itself causes a brief network interruption (typically under 5 minutes for a pre-configured replacement). PROFINET devices will re-establish communication automatically once the module is powered and the internal zone port is active. No PLC program changes are required if IP addressing is maintained.

Q: Is the physical installation space identical to the S601/S612?
A: Yes. The 6GK5602-0BA10-2AA3 uses the same DIN rail mounting footprint (~45 mm width) and identical RJ45 port positions as the S601 and S612. Existing cable management and cabinet cutouts do not require modification.

Q: What programming software is required for initial configuration?
A: The module can be configured via its integrated web interface (no additional software required for basic firewall rules) or via Siemens Security Configuration Tool (SCT) for advanced VPN and rule management. TIA Portal V15 or later supports full integration for sites already using the TIA ecosystem.

Q: Does the module support legacy Modbus RTU devices on the internal zone?
A: The 6GK5602-0BA10-2AA3 operates at the Ethernet/IP layer and is transparent to application-layer protocols including Modbus TCP. Legacy Modbus RTU devices connected via a Modbus RTU-to-TCP gateway on the internal zone will continue to communicate normally through the module.

Q: What is the lead time and shipping arrangement?
A: TOPNLMS maintains in-stock inventory with same-week dispatch from Xiamen. International shipments are handled via DHL Express or FedEx International Priority, with typical transit times of 3–7 business days to most destinations. Emergency orders with expedited handling are available upon request.

Warranty Assurance

Every Siemens 6GK5602-0BA10-2AA3 supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a functional verification check including power-on testing, port connectivity verification, and firmware version confirmation. Units that do not pass pre-shipment inspection are quarantined and not dispatched.

In the event of a warranty claim, TOPNLMS provides a replacement unit dispatch within 5 business days of claim confirmation, with return shipping of the defective unit arranged at our cost for orders above minimum value thresholds. Our after-sales response team is reachable via email at [email protected] or by phone at +86 18359293191 during business hours (GMT+8). Warranty coverage applies to manufacturing defects and functional failures under normal operating conditions; physical damage caused by incorrect installation or overvoltage is excluded.

For procurement teams managing spare parts programs, TOPNLMS offers multi-unit warranty registration and consolidated warranty tracking for bulk orders. Certificate of conformity and test reports are available upon request for quality assurance documentation requirements.
