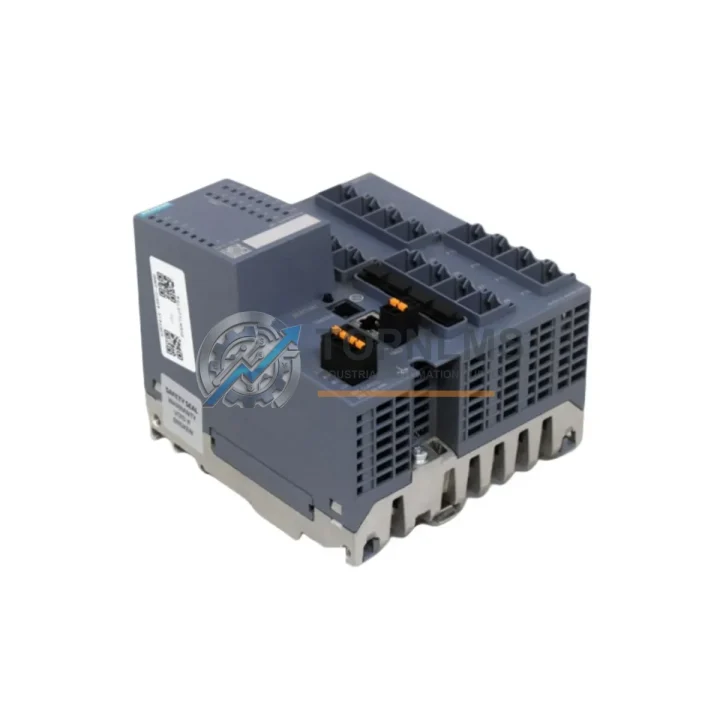

Siemens 6GK5416-4GS00-2AM2 Original Industrial Spare XM400

Product Overview

Siemens 6GK5416-4GS00-2AM2 Original Industrial Spare XM400: System Stability & Maintenance Value

The Siemens 6GK5416-4GS00-2AM2 is a modular managed industrial Ethernet switch from the SCALANCE XM400 series, engineered for mission-critical network infrastructure in manufacturing plants, process automation facilities, and large-scale industrial control environments. As a genuine original spare part, this unit is a cornerstone component for engineers and maintenance teams responsible for sustaining uptime in PROFINET, Industrial Ethernet, and ring-topology networks across Siemens S7-300, S7-400, S7-1500, and distributed I/O architectures.

In industrial environments where network downtime translates directly to production loss, having a verified original replacement unit on the shelf is not optional — it is a fundamental element of any responsible maintenance strategy. The 6GK5416-4GS00-2AM2 supports up to 16 modular port slots with 4 fixed combo ports, enabling flexible configuration for high-density switching applications. Its managed feature set — including VLAN, RSTP/MRP ring redundancy, SNMP, and PROFINET IO device integration — makes it a direct drop-in replacement for aging or failed units without requiring network reconfiguration.

Critical Technical Specs

Preventive Maintenance Strategy

When a SCALANCE XM416-4C switch fails or is flagged during a scheduled network audit, the impact extends well beyond the switch itself. Industrial Ethernet switches sit at the heart of the control network, interconnecting PLCs, HMIs, remote I/O stations, drives, and safety systems. A proactive maintenance approach requires evaluating the entire network segment — not just the failed device.

During replacement of the 6GK5416-4GS00-2AM2, maintenance engineers should simultaneously inspect the SCALANCE XM400 media modules (such as the 6GK5992-2AM00-8AA0 SFP fiber modules) installed in the modular slots, as fiber transceivers degrade over time and are a common secondary failure point. The 24 V DC power supply unit feeding the switch — typically a SITOP PSU100S or SITOP modular — should be load-tested and replaced if it shows voltage ripple or age-related drift, since an unstable supply is a leading cause of managed switch instability and unexpected reboots.

The PROFINET IO controller configuration in the connected S7-1500 or S7-300 CPU should be verified post-replacement to confirm device name assignment and IP address mapping remain intact. If the plant uses SINEMA Server or SINEMA Remote Connect for network monitoring, the replacement switch must be re-enrolled and its topology map updated. Technicians should also check the IE FC RJ45 Plug 180 connectors (6GK1901-1BB10-2AA0) on all patch cables connected to the switch — industrial RJ45 connectors in high-vibration environments are prone to intermittent contact failures that are often misdiagnosed as switch faults.

For plants running ring topologies, the MRP ring configuration must be validated after switch replacement. This includes checking the ring manager assignment and confirming that the redundant path switches — often additional SCALANCE X208, X216, or XC216 units — are operating correctly. If the control cabinet also houses CP 343-1 or CP 443-1 communication processors for S7-300/400 systems, their firmware and network parameters should be reviewed as part of the same maintenance window.

Spare inventory planning for a SCALANCE XM416-4C installation should also include SCALANCE XM400 expansion modules, a backup C-PLUG configuration memory card (6GK5901-0AA00-0AA0) pre-loaded with the switch configuration, and at minimum one spare SITOP power supply matched to the cabinet’s load profile. Maintaining these components as a coordinated spare kit dramatically reduces mean time to repair (MTTR) during unplanned outages.

Strategic Replacement Solutions

The 6GK5416-4GS00-2AM2 is the designated replacement for earlier SCALANCE XM400 variants and select SCALANCE X400 series switches that have reached end-of-life or are no longer available through standard supply channels. Its backward-compatible port architecture and support for legacy PROFINET device profiles allow it to be integrated into existing network topologies without requiring changes to PLC programs, HMI configurations, or PROFINET device naming conventions.

For plants operating legacy Siemens S7-300 or S7-400 systems with original SCALANCE X414-3E or X408-2 switches, the XM416-4C provides a direct functional upgrade path. The modular slot design allows the maintenance team to match the original fiber or copper port configuration precisely, preserving cabling infrastructure and minimizing installation time. Configuration migration is supported via the C-PLUG memory card, which can store and transfer switch parameters to a replacement unit in under five minutes — a critical advantage during emergency shutdowns where every minute of downtime carries measurable production cost.

TOPNLMS supplies the 6GK5416-4GS00-2AM2 as a fully tested original unit, inspected for electrical integrity, firmware version, and physical condition prior to shipment. Each unit ships with a 12-month warranty covering manufacturing defects and functional failures under normal industrial operating conditions. Expedited shipping options are available to support emergency maintenance scenarios where lead time from standard distribution channels is unacceptable.

Support FAQ

Q1: Is the 6GK5416-4GS00-2AM2 a genuine original Siemens unit?
Yes. All units supplied by TOPNLMS are original Siemens-manufactured components. Each switch undergoes pre-shipment functional testing covering power-on, port link negotiation, management interface access, and PROFINET IO device detection before dispatch.

Q2: What is the warranty coverage and what does it include?
Every 6GK5416-4GS00-2AM2 unit carries a 12-month warranty from the date of shipment. The warranty covers functional failures and manufacturing defects under normal industrial operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed with priority turnaround to minimize customer downtime.

Q3: Can this switch replace an older SCALANCE X414-3E or X408-2 without reconfiguring the PLC?
In most cases, yes. The SCALANCE XM416-4C supports the same PROFINET IO device profiles and MRP ring protocols as its predecessors. Port-for-port replacement is achievable by matching the installed media modules to the original port types. We recommend verifying the PROFINET device name and IP address assignment in STEP 7 or TIA Portal after installation to confirm seamless integration.

Q4: How should I plan spare inventory for a SCALANCE XM400-based network?
For critical production networks, we recommend maintaining at minimum one spare XM416-4C unit, a pre-configured C-PLUG memory card, a matched set of SFP fiber modules for your installed fiber runs, and a spare 24 V DC power supply. This spare kit approach enables same-shift replacement of any single point of failure in the network infrastructure, keeping MTTR under two hours for most installations.
