Siemens 6GK5008-0BA00-1AB2 Original Industrial Spare SCALANCE X008

Product Overview

Siemens 6GK5008-0BA00-1AB2 Original Industrial Spare SCALANCE X008: System Stability for Industrial Ethernet Networks

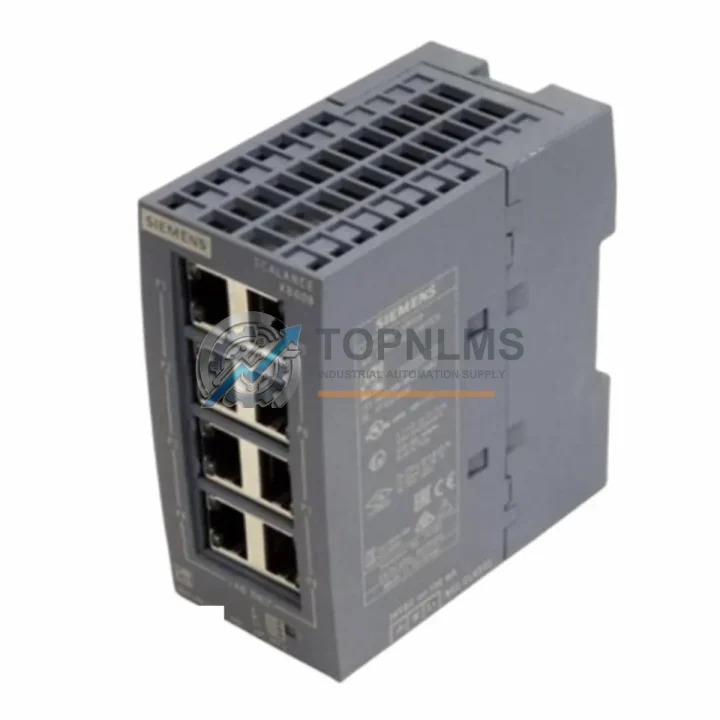

The Siemens 6GK5008-0BA00-1AB2 is an original, factory-sourced spare component from the SCALANCE X008 series — an 8-port unmanaged industrial Ethernet switch engineered for demanding automation environments. Designed to operate reliably in control cabinets, PLC panels, and distributed I/O networks, this unit is a critical backbone component for PROFINET, SIMATIC, and general industrial Ethernet topologies. Maintaining a verified spare of the 6GK5008-0BA00-1AB2 in your parts inventory is a proven strategy for reducing unplanned downtime, accelerating fault recovery, and extending the operational life of legacy and current-generation control systems.

Industrial Ethernet switches like the SCALANCE X008 are often overlooked during preventive maintenance cycles — until a network fault cascades into a full production stoppage. A failed or degraded switch can isolate entire PLC segments, disrupt PROFINET communication between controllers and remote I/O racks, and trigger safety shutdowns. Having a pre-tested, ready-to-deploy 6GK5008-0BA00-1AB2 on the shelf eliminates the critical gap between fault detection and system restoration.

Critical Technical Specifications

Preventive Maintenance Strategy: Protecting Your Industrial Ethernet Infrastructure

A structured preventive maintenance program for industrial Ethernet networks goes well beyond replacing a single switch. When scheduling a control cabinet inspection or a planned shutdown for PROFINET network maintenance, maintenance engineers should treat the 6GK5008-0BA00-1AB2 as part of a broader ecosystem of interdependent components — each of which can independently cause network degradation or communication loss.

During a cabinet inspection, it is advisable to simultaneously verify the condition of the 24 V DC power supply module feeding the SCALANCE X008, as voltage fluctuations and ripple are a leading cause of premature switch failure. Units such as the Siemens SITOP PSU100S or equivalent 24 V stabilized power supplies should be checked for output voltage stability and thermal performance. Alongside the power supply, the PROFINET communication cables (IE FC RJ45 Plug 180 or IE FC TP Standard Cable GP) connecting the switch ports to PLC CPUs, remote I/O modules, and HMI panels should be inspected for connector integrity, bend radius compliance, and shielding continuity.

For systems running SIMATIC S7-1500 or S7-300 controllers, the CPU communication interface modules — such as the CP 343-1 or CP 1543-1 — should be tested for PROFINET port health in parallel with any switch replacement. A degraded CP module can mimic switch-level faults and lead to misdiagnosis. Similarly, ET 200SP or ET 200M remote I/O modules connected downstream of the SCALANCE X008 should be verified for correct IP addressing and communication status after any network hardware swap.

In distributed control architectures, the SCALANCE X005 or SCALANCE XB008 switches used in satellite panels or junction boxes adjacent to the X008 should be inspected at the same maintenance interval — network faults rarely occur in isolation, and aging switches in the same installation cohort often fail within similar timeframes. Maintenance planners should also review the status of PROFIBUS DP/PA segment couplers (such as the DP/PA Link or IM 153-2) if the Ethernet network interfaces with legacy PROFIBUS segments, as these gateway devices are frequently overlooked during Ethernet-focused maintenance cycles.

For cabinet-level electrical integrity, inspect the terminal blocks and DIN rail bus connectors (e.g., Siemens SIRIUS or Phoenix Contact PTFIX series) for oxidation, loose connections, and thermal discoloration. Faulty terminal connections can introduce ground loops that corrupt Ethernet signals. Additionally, surge protection modules installed on the 24 V DC supply rail and Ethernet ports — such as the Siemens SITOP PROT or equivalent DIN rail surge arresters — should be tested and replaced on a scheduled basis to protect the SCALANCE X008 and connected devices from transient overvoltages common in industrial environments.

Finally, if the control system includes an industrial wireless access point (e.g., SCALANCE W780 or W740 series) connected to the X008 switch, its firmware version, antenna condition, and RF channel configuration should be validated during the same maintenance window to ensure seamless wired-to-wireless handoff and network redundancy.

Strategic Replacement Solutions: Minimizing Downtime with Original Spare Parts

The 6GK5008-0BA00-1AB2 is a direct, plug-and-play replacement for any installed SCALANCE X008 unit. As an unmanaged switch, it requires no configuration — simply mount on the DIN rail, reconnect the RJ45 cables in the original port sequence, and restore 24 V DC power. The switch will immediately resume PROFINET communication without any software intervention, making it one of the fastest field-replaceable units in a Siemens automation network.

For facilities managing aging SIMATIC S7-300 or S7-400 systems where original SCALANCE X008 units may no longer be available through standard distribution channels, the 6GK5008-0BA00-1AB2 sourced as an original spare provides a validated, compatible solution that preserves the existing network topology, IP addressing scheme, and PROFINET device naming — eliminating the engineering effort and risk associated with introducing a non-OEM substitute. This is particularly valuable in regulated industries (pharmaceutical, food & beverage, energy) where change management documentation requirements make like-for-like replacements the preferred maintenance strategy.

Stocking one or two units of the 6GK5008-0BA00-1AB2 as critical spares — alongside matched power supply modules and pre-terminated patch cables — enables maintenance teams to achieve sub-30-minute network restoration times following an unplanned switch failure, compared to multi-day lead times for emergency procurement. This spare-holding strategy directly reduces the financial impact of unplanned downtime and supports compliance with IEC 62443 industrial cybersecurity and availability standards.

Support FAQ

Q1: Is the 6GK5008-0BA00-1AB2 compatible with SIMATIC S7-1500 and S7-1200 PROFINET networks?
Yes. The SCALANCE X008 is fully compatible with all SIMATIC controller families that use standard PROFINET IO communication, including S7-1200, S7-1500, S7-300, and S7-400 with CP modules. As an unmanaged switch, it is transparent to the PROFINET protocol and requires no GSDML configuration.

Q2: What testing is performed before shipment?
Every 6GK5008-0BA00-1AB2 unit is powered on and tested for port-to-port Ethernet connectivity, LED indicator function, and power input integrity prior to packaging. Units are shipped with anti-static protection and original-style packaging to prevent transit damage.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers hardware defects and functional failures under normal operating conditions. If a unit fails within the warranty period, we provide a replacement or full refund. The warranty period begins from the date of confirmed delivery.

Q4: Can this unit replace older SCALANCE X008 variants with different order suffixes?
The 6GK5008-0BA00-1AB2 is the current production variant of the SCALANCE X008. It is electrically and mechanically compatible with earlier production runs of the same model family. For cross-compatibility with specific legacy variants, we recommend verifying the hardware revision against your existing installation documentation or contacting our technical team before ordering.
